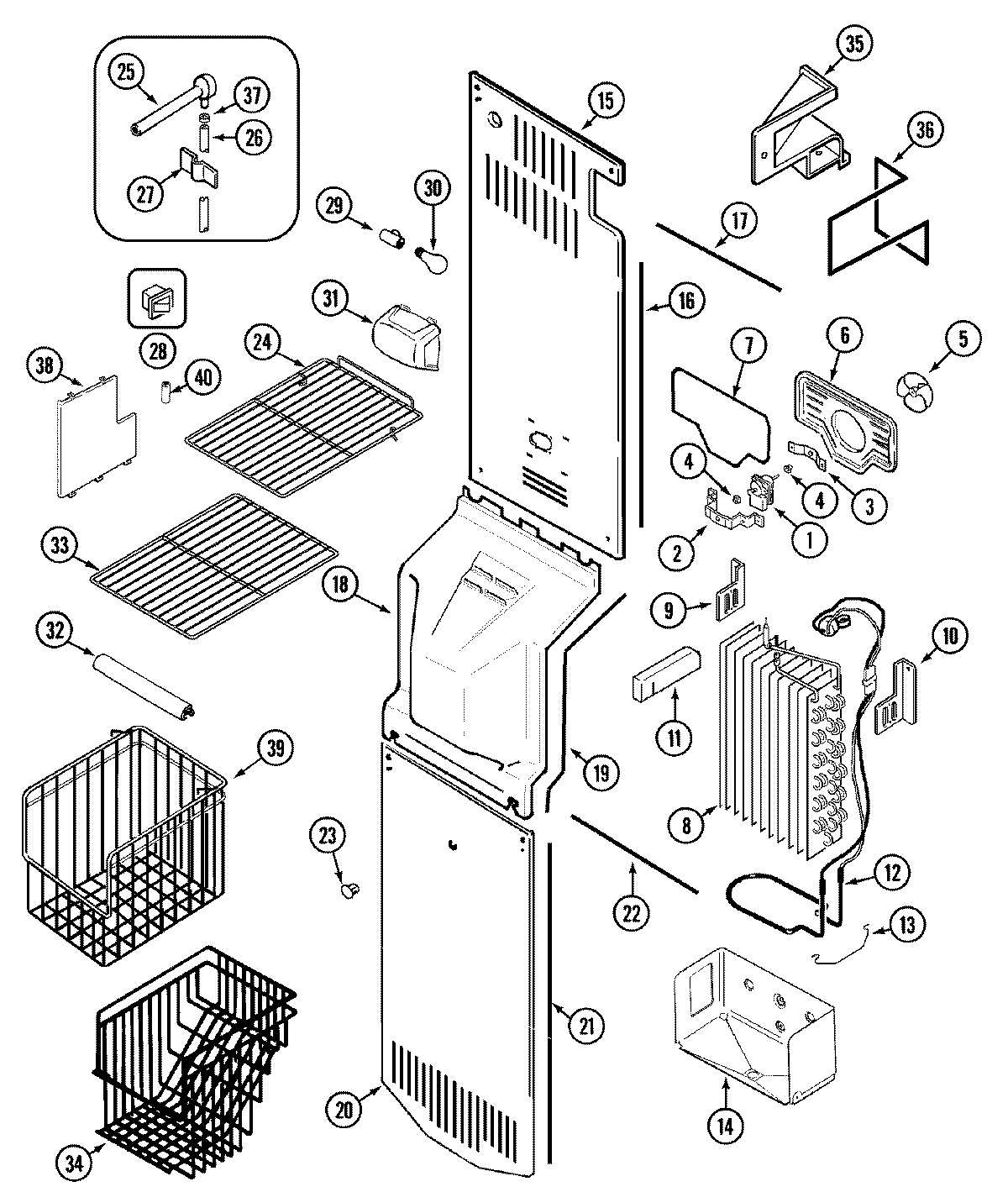

JCD2389DEW 04 – FREEZER COMPARTMENT (JCD2389DEB/Q/S/W)

Products

PositionProduct
1WP61004888 Whirlpool Refrigerator Evaporator Motor
2MAY 61001930
3WP489399 Whirlpool Refrigerator Screw
3MAY 61002234
4MAY 61002235
5MAY 61004522
6MAY 61003898
8MAY 12001641
9MAY 61003215
10MAY 61003216
11MAY 61003213
12WP61006199 Whirlpool Refrigerator Heater
13WP67005457 Whirlpool Refrigerator Clip
14MAY 61003830
15MAY 61004028
17MAY 61003834
18MAY 61003835
19WP854334 Whirlpool Air Conditioner Sealing Strip
20MAY 61003836
20MAY 61004424
21MAY 61003212
22MAY 61003837
23MAY 61001952
24MAY 61004434
25MAY 67877-1
2561005744 Whirlpool Refrigerator Fill Tube Grommet
26MAY 67579-1
27MAY 61004913
28W11396033 Whirlpool Refrigerator Rocker Switch
29MAY 68974-3
30MAY 31956-1
31MAY 61002272
32MAY 61003950
33MAY 61004343
34MAY 61004114
35WP489478 Whirlpool Refrigerator Screw
35MAY 61003205
36MAY 61003206
37WPM0114003 Whirlpool Microwave Speed Clip Clamp
38MAY 61004115
39MAY 61004116
40MAY 68823-1
40MAY 61001028
41MAY 61003731
41MAY 61003955
41MAY 61004988
