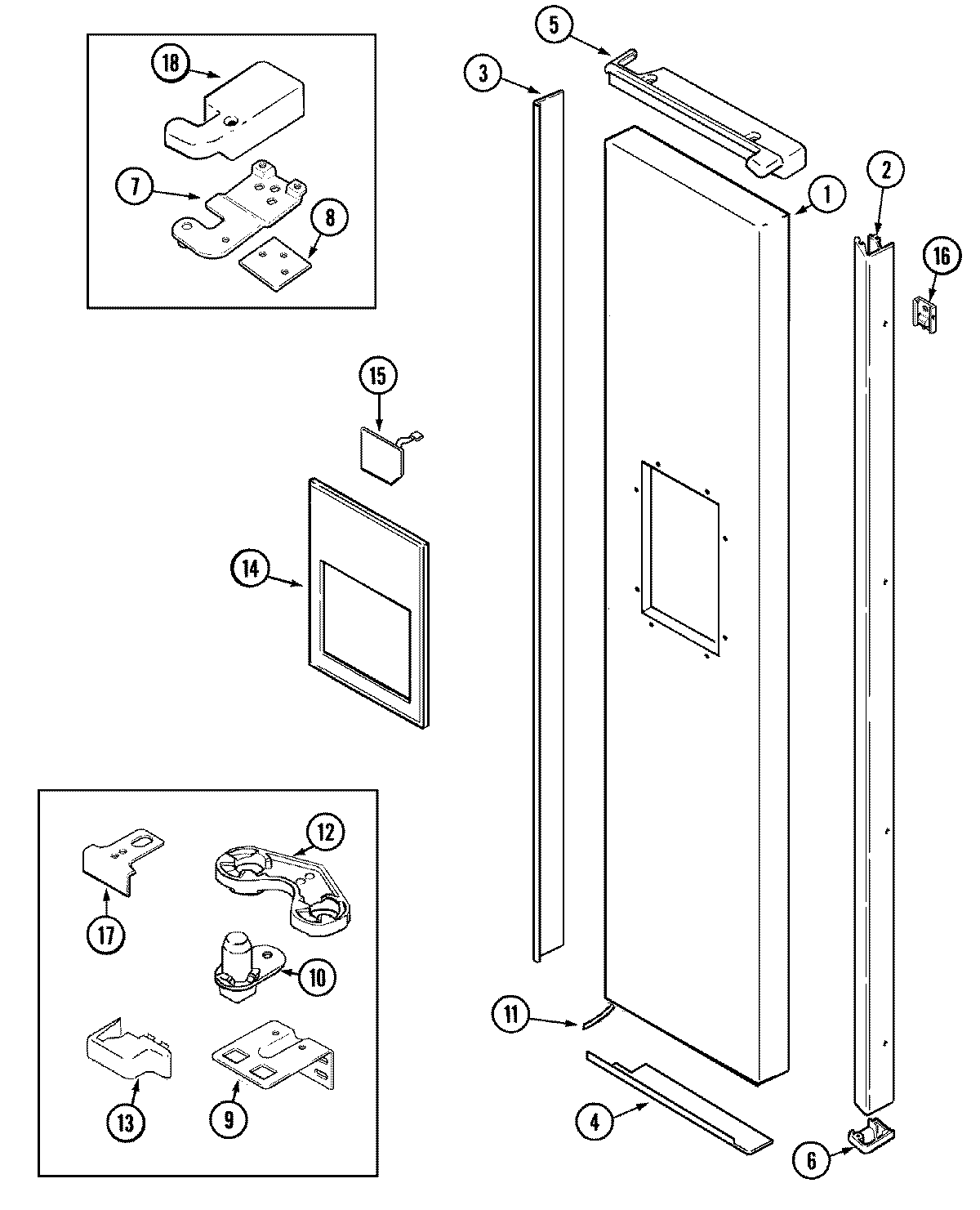

JCD2389DTW 06 – FREEZER OUTER DOOR (JCD2389DTB/W)
Written by
in
JCD2389DTW 06 – FREEZER OUTER DOOR (JCD2389DTB/W)
Products
Position
Product
1
MAY 61005316
1
MAY 61005157
2
MAY 61004345
2
MAY 61004208
3
MAY 61004221
4
MAY 61004346
4
MAY 61004222
5
MAY 61004223
5
MAY 61004396
5
MAY 61004173
6
MAY 61004224
6
WPW10253196 Whirlpool Screw
7
MAY 61004194
7
WP3-24838-048 Whirlpool Refrigerator Screw
8
MAY 61001922
9
3400112 Whirlpool Refrigerator Screw
9
MAY 61004712
10
MAY 61003174
11
WP2300868 Whirlpool Refrigerator Fitting
11
MAY 61004569
12
61003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13
MAY 61004177
14
415013-35 Whirlpool Refrigerator Screw
14
MAY 61005059
15
MAY 61003422
15
WP61005277 Whirlpool Refrigerator Electronic Control Board
16
MAY 61004179
17
MAY 61004120
17
W10856122 Whirlpool Refrigerator Screw
18
MAY 61004721
18
WP8281196 Whirlpool Screw
←
