JCD2389GEB 08 – FRESH FOOD OUTER DOOR (JCD2389GEB/Q/W)

JCD2389GEB 08 – FRESH FOOD OUTER DOOR (JCD2389GEB/Q/W)

Written by

in

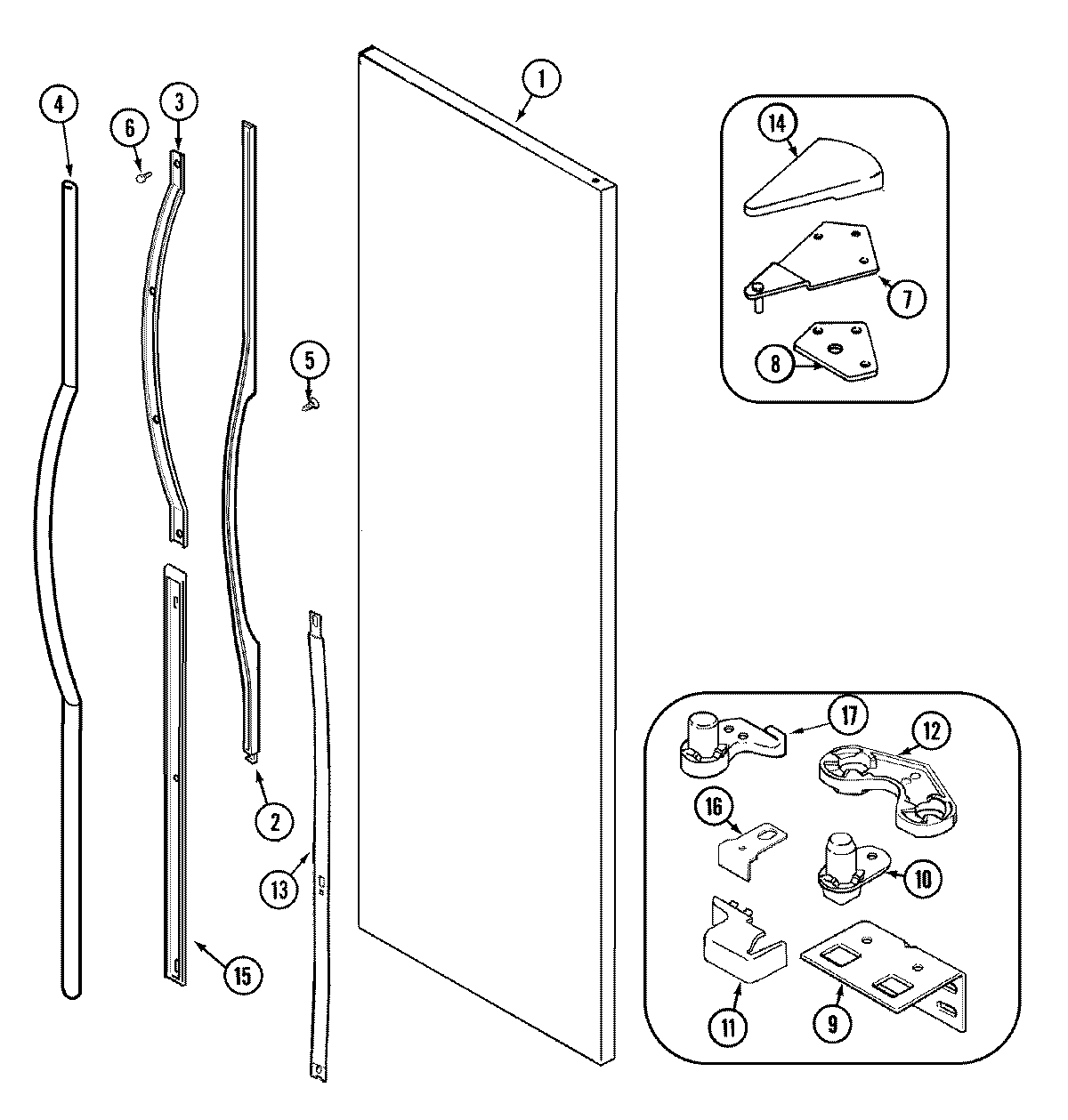

JCD2389GEB 08 – FRESH FOOD OUTER DOOR (JCD2389GEB/Q/W)

Products

PositionProduct
1MAY 61006217
1MAY 61005828
1MAY 61004118
2MAY 61004958
3MAY 61004761
4MAY 61004084
5MAY 61003351
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
9MAY 61002361
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61003537
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004781
14MAY 61004679
15MAY 61004957
16MAY 61004120
17W10856122 Whirlpool Refrigerator Screw
17MAY 61005724
