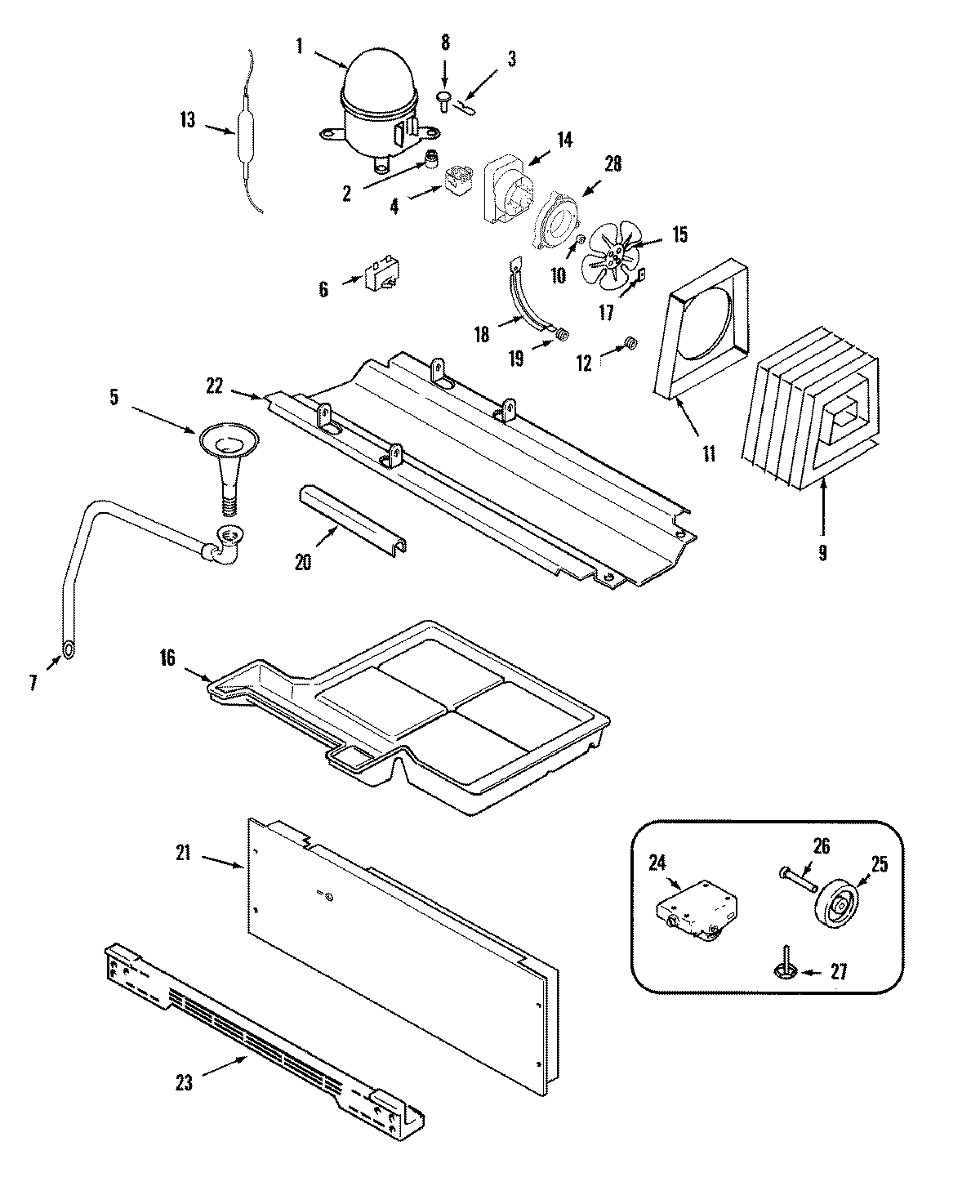

JCD2389GEQ 01 – COMPRESSOR

Products

Position	Product
1	W10160407 Whirlpool Refrigerator Compressor
1	MAY 61005322
1	W10309995 Whirlpool Refrigerator Compressor
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
2	GROMMET (SERVICE)
3	MAY 61003099
4	12002784 Whirlpool Refrigerator Compressor Start Relay Overload Kit
4	12002794 Whirlpool Refrigerator Overload Relay Kit
4	MAY 61006187
4	MAY 61005620
5	MAY 61004751
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 53516-9
7	MAY 61003133
8	MAY 52656-2
9	MAY 61004378
9	MAY 61005452
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	WP90767 Whirlpool Screw
14	MAY 61005323
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61004584
21	MAY 61004674
21	MAY 65275-50
22	MAY 61005269
22	WP67006715 Whirlpool Refrigerator Screw
23	MAY 61004758
24	WP489478 Whirlpool Refrigerator Screw
24	SCREW
24	MAY 61005232
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 61002014
28	MAY 61005326
28	MAY 61005325
29	MAY 12001548
30	MAY 61004965
31	MAY 16010154
