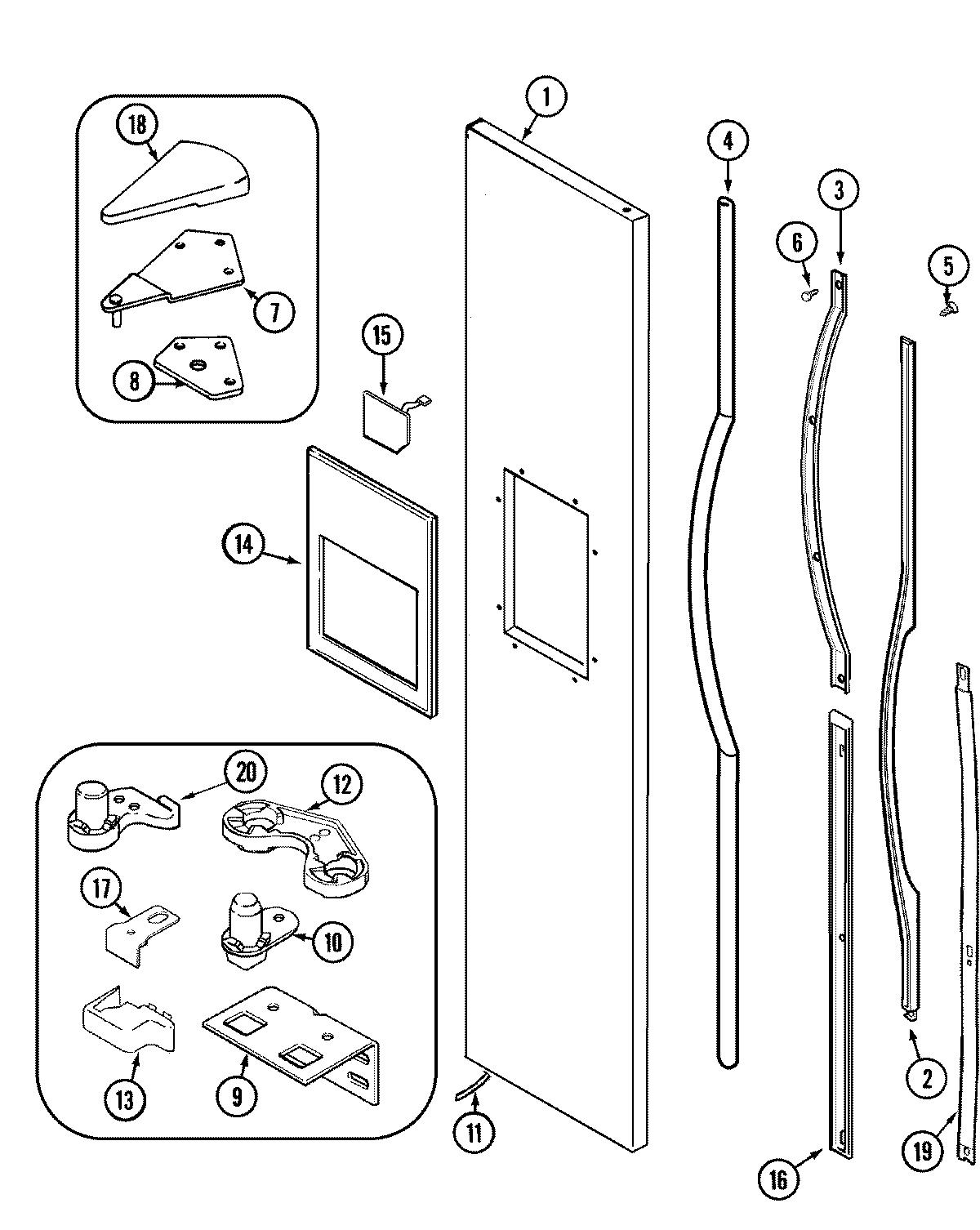

JCD2389GEQ 06 – FREEZER OUTER DOOR (JCD2389GEB/Q/W)

JCD2389GEQ 06 – FREEZER OUTER DOOR (JCD2389GEB/Q/W)

Written by

in

JCD2389GEQ 06 – FREEZER OUTER DOOR (JCD2389GEB/Q/W)

Products

PositionProduct
1MAY 61005776
1MAY 61005311
2MAY 61004760
3MAY 61004761
4MAY 61004762
5MAY 61003351
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
93400112 Whirlpool Refrigerator Screw
9MAY 61004764
10MAY 61003174
11MAY 61004569
11WP2300868 Whirlpool Refrigerator Fitting
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004769
14415013-35 Whirlpool Refrigerator Screw
14MAY 61005202
15MAY 61003422
15WP61005277 Whirlpool Refrigerator Electronic Control Board
16MAY 61004767
17MAY 61004120
18WP8281196 Whirlpool Screw
18MAY 61004771
19MAY 61004781
20W10856122 Whirlpool Refrigerator Screw
20MAY 61005726
