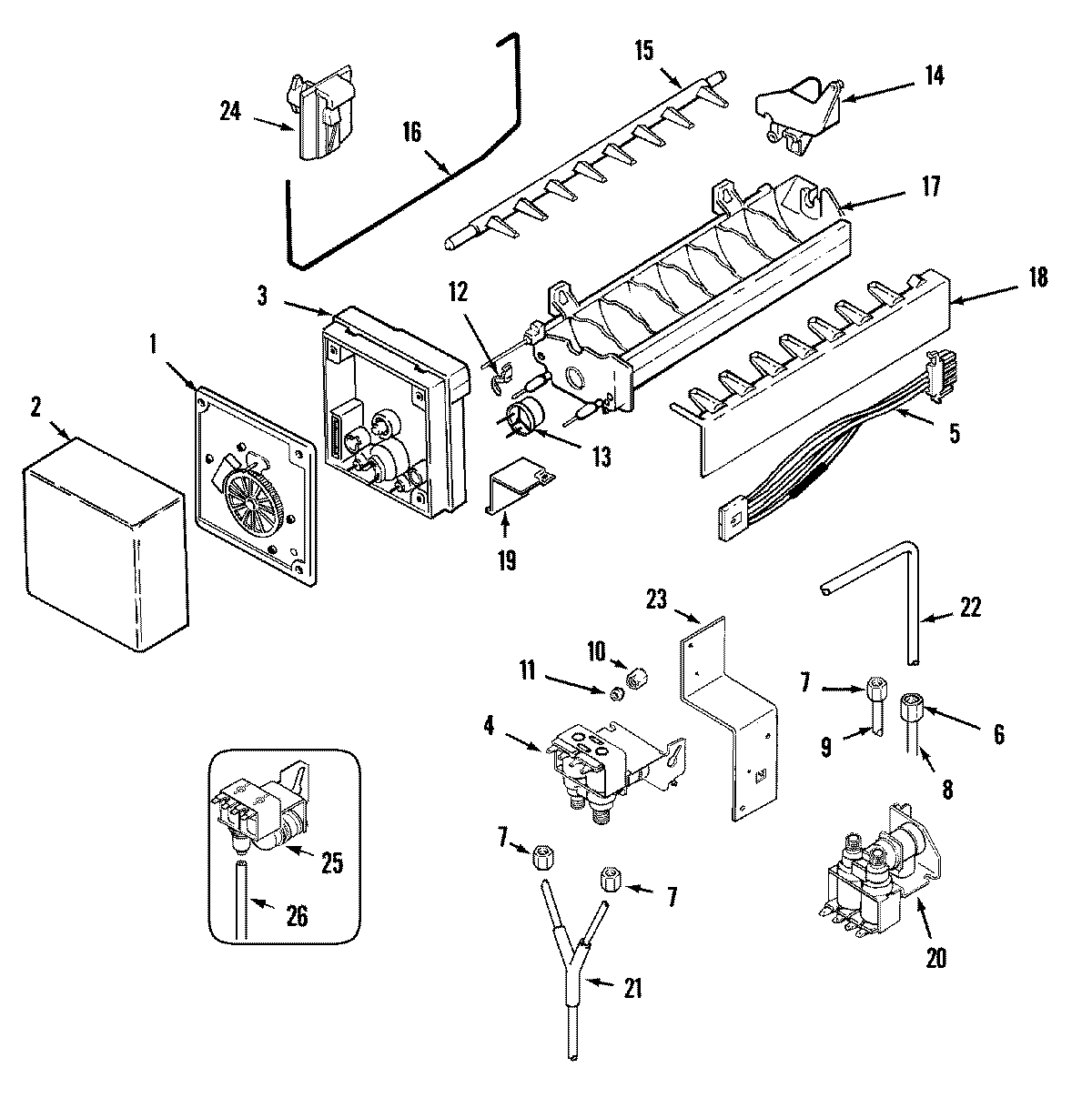

JCD2389GES 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 95109-1
2	MAY 61005374
3	WP2195914 Whirlpool Refrigerator Ice Maker Housing
3	SCREW
4	12001892 Whirlpool Refrigerator Water Valve Kit with Filter
5	MAY 61005308
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	MAY 95093-1
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61004136
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 95108-1
19	BRACKET, MODULE & HEATER
20	61005626 Whirlpool Water Inlet Valve
20	WP489399 Whirlpool Refrigerator Screw
21	MAY 61005058
21	MAY 61004391
21	WPM0114003 Whirlpool Microwave Speed Clip Clamp
22	MAY 61004392
22	MAY 61005683
23	MAY 61003732
23	MAY 61002819
24	WP61005028 Whirlpool Refrigerator Support
25	WP61005627 Whirlpool Refrigerator Inlet Valve
26	MAY 61005682
