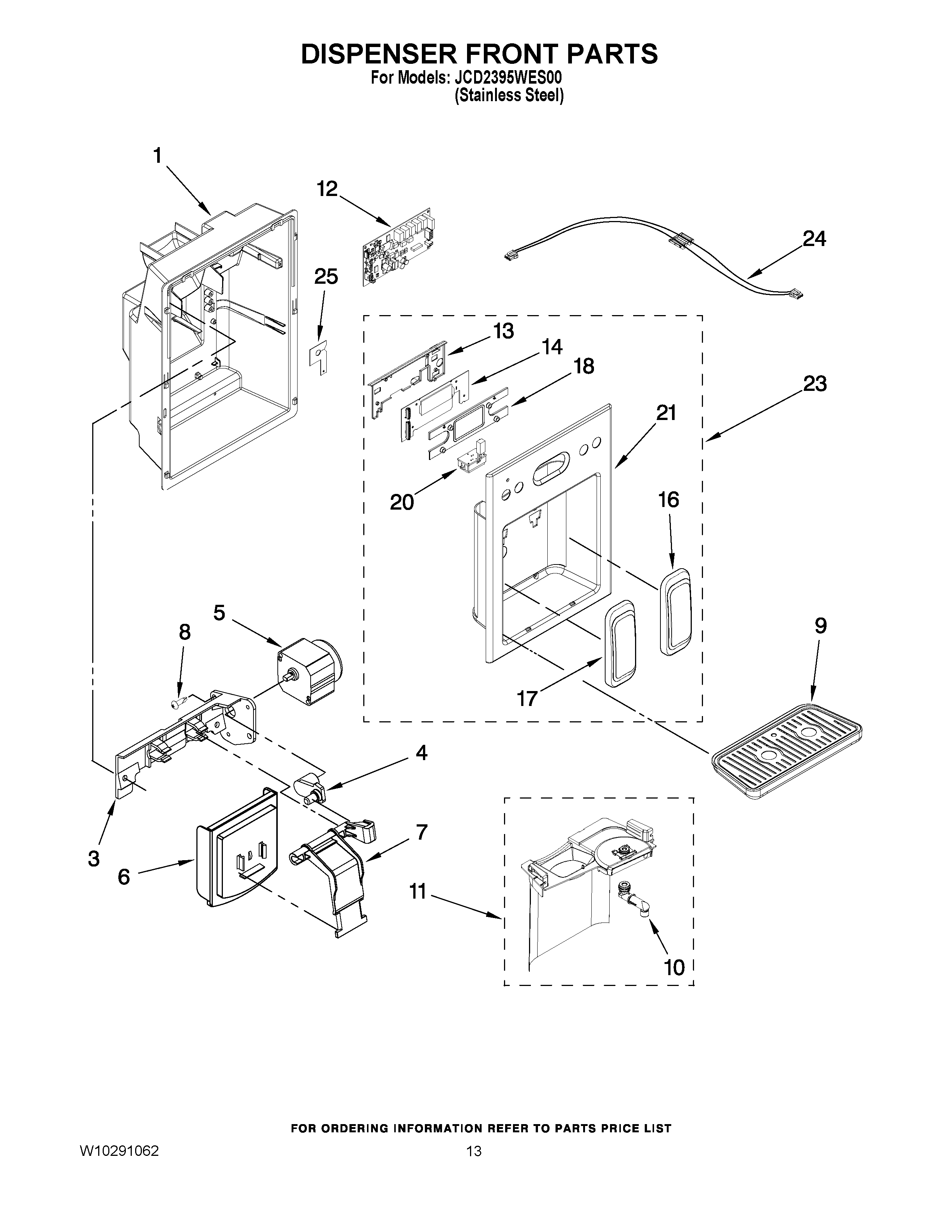

JCD2395WES00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
3MAY 2305202
4MAY 2305242
5MAY W10184813
6MAY 2305258
7MAY 2305204
8MAY 4449745
9FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No.23)
10MAY W10187441
11Seperator Assembly
12MAY 2303843
13Cover, Control
14MAY W10215844
16Pad, Water (Grey)
17Pad, Ice (Grey)
18MAY W10205009
20MAY W10222215
21LINER (NOT A SERVICEABLE PART)
23Front Cover Assy (Nickel One)
24Wire Assembly, User Interface
25MAY 2305447
