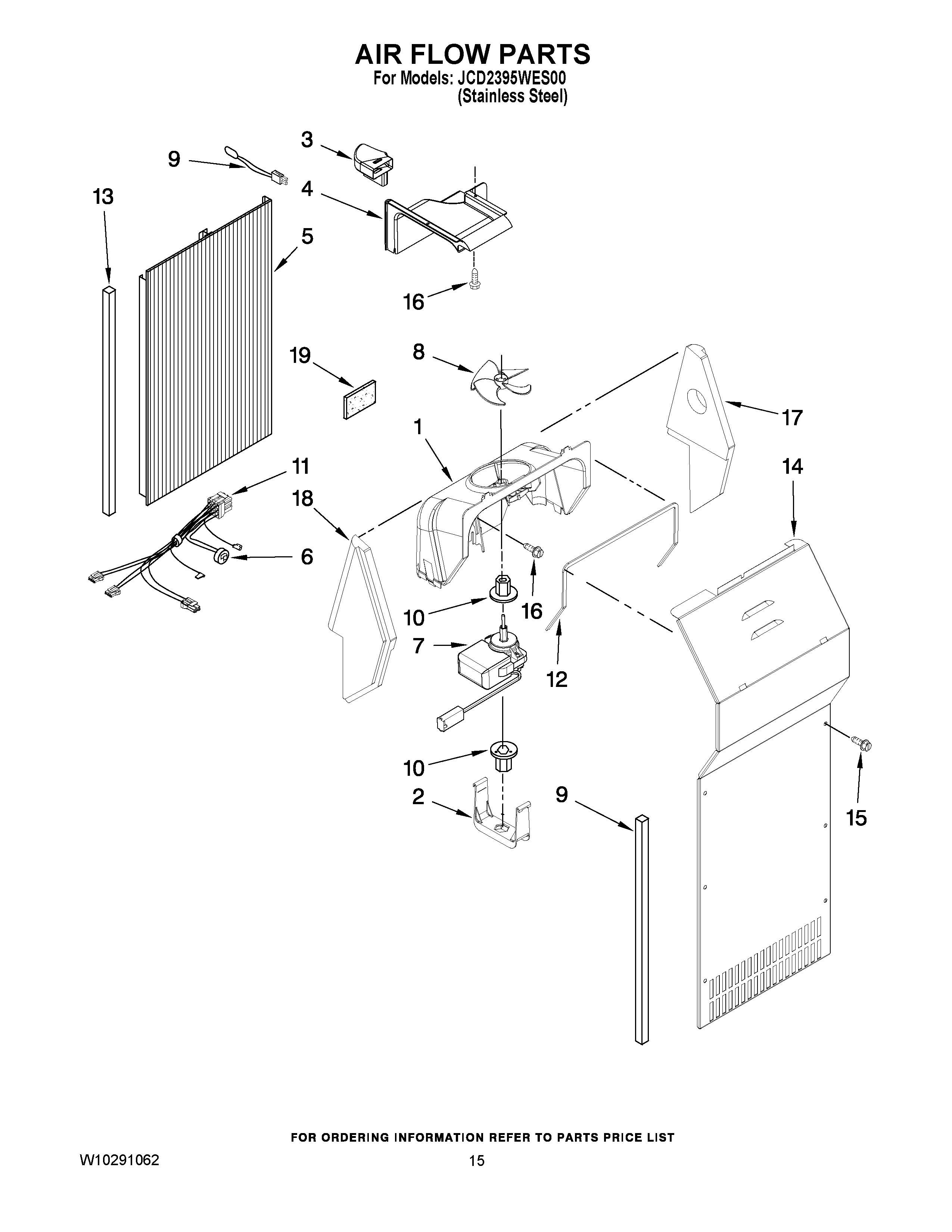

JCD2395WES00 09 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2223733
3MAY 2223298
4MAY 2223303
5DUCT, FREEZER COMPARTMENT AIR
6MAY 2321799
7MAY 2259385
8Blade, Fan (Evaporator)
9Gasket
10Grommet
11HARNESS, FAN EVAPORATOR (INCLUDES No.6)
12Gasket, Fan Scroll
13MAY 2203876
14MAY 2223413
15MAY 8281159
16MAY 489478
17MAY 2223395
18SUPPORT, FAN SCROLL (LEFT HAND)
19MAY W10138980
