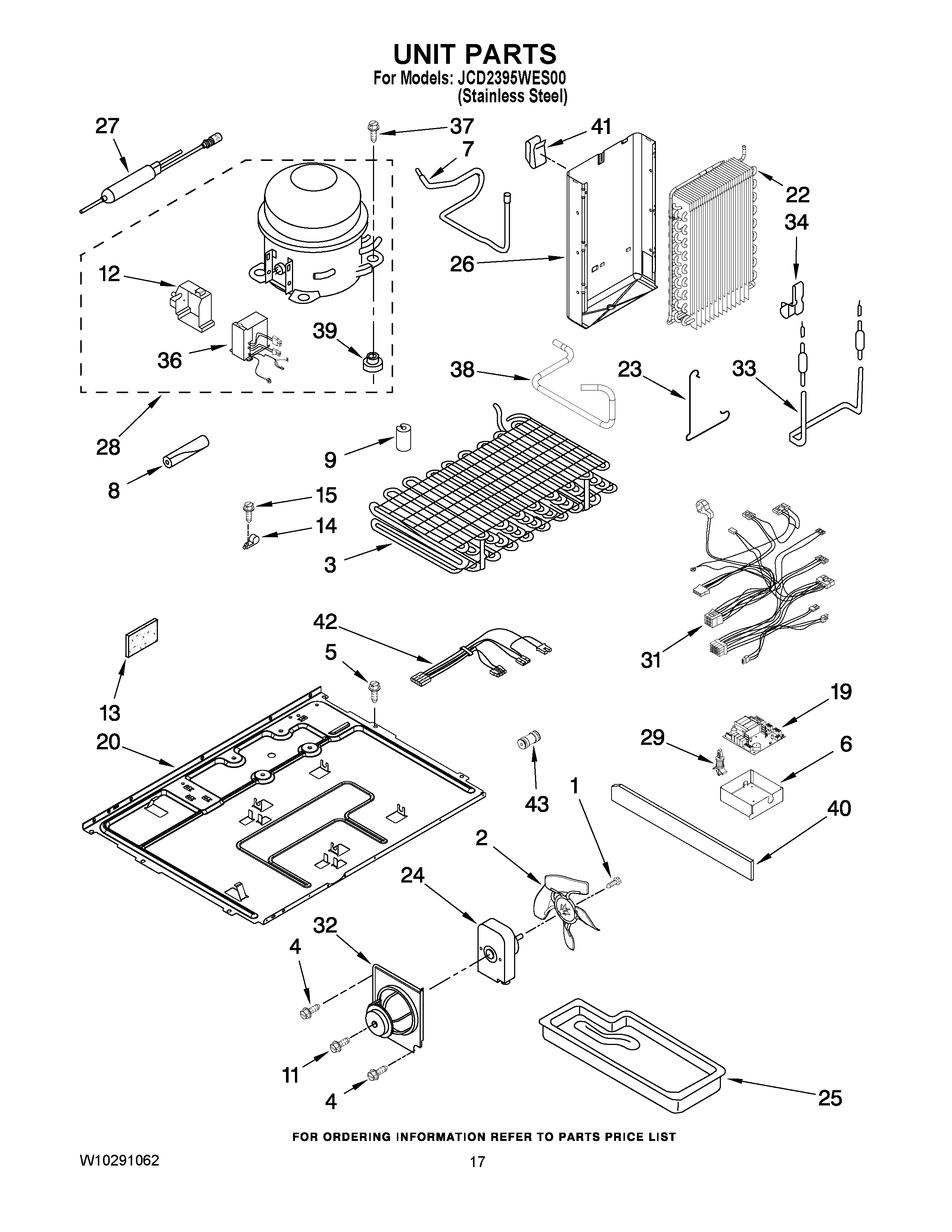

JCD2395WES00 11 – UNIT PARTSadmin2025-04-26T09:15:00+00:00JCD2395WES00 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY 777070 |
| 2 | MAY W10139483 |
| 3 | MAY W10193018 |
| 4 | MAY 489427 |
| 5 | MAY 3400524 |
| 6 | MAY 2223703 |
| 7 | MAY 2223351 |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | GROMMET, CONDENSER |
| 11 | MAY 8533859 |
| 12 | MAY 2215676 |
| 13 | SEALER, INSULATION |
| 14 | Clamp, Cable |
| 15 | MAY 488649 |
| 19 | MAY W10219463 |
| 20 | MAY 2306932 |
| 22 | Evaporator |
| 23 | Clip |
| 24 | MOTOR, CONDENSOR |
| 25 | MAY 2223398 |
| 26 | MAY 2224022 |
| 27 | Drier |
| 28 | COMPRESSOR |
| 29 | Spacer (5) |
| 31 | MAY 2310122 |
| 32 | MAY 2224024 |
| 33 | MAY 2323199 |
| 34 | MAY 2304287 |
| 36 | ASSEMBLY, INVERTER BOX |
| 37 | MAY 489373 |
| 38 | MAY 2325479 |
| 39 | Grommet (Production) |
| 40 | MAY 2223394 |
| 41 | MAY 2155547 |
| 42 | MAY 2310121 |
| 43 | Connector, Water Tube (1/4``) |
