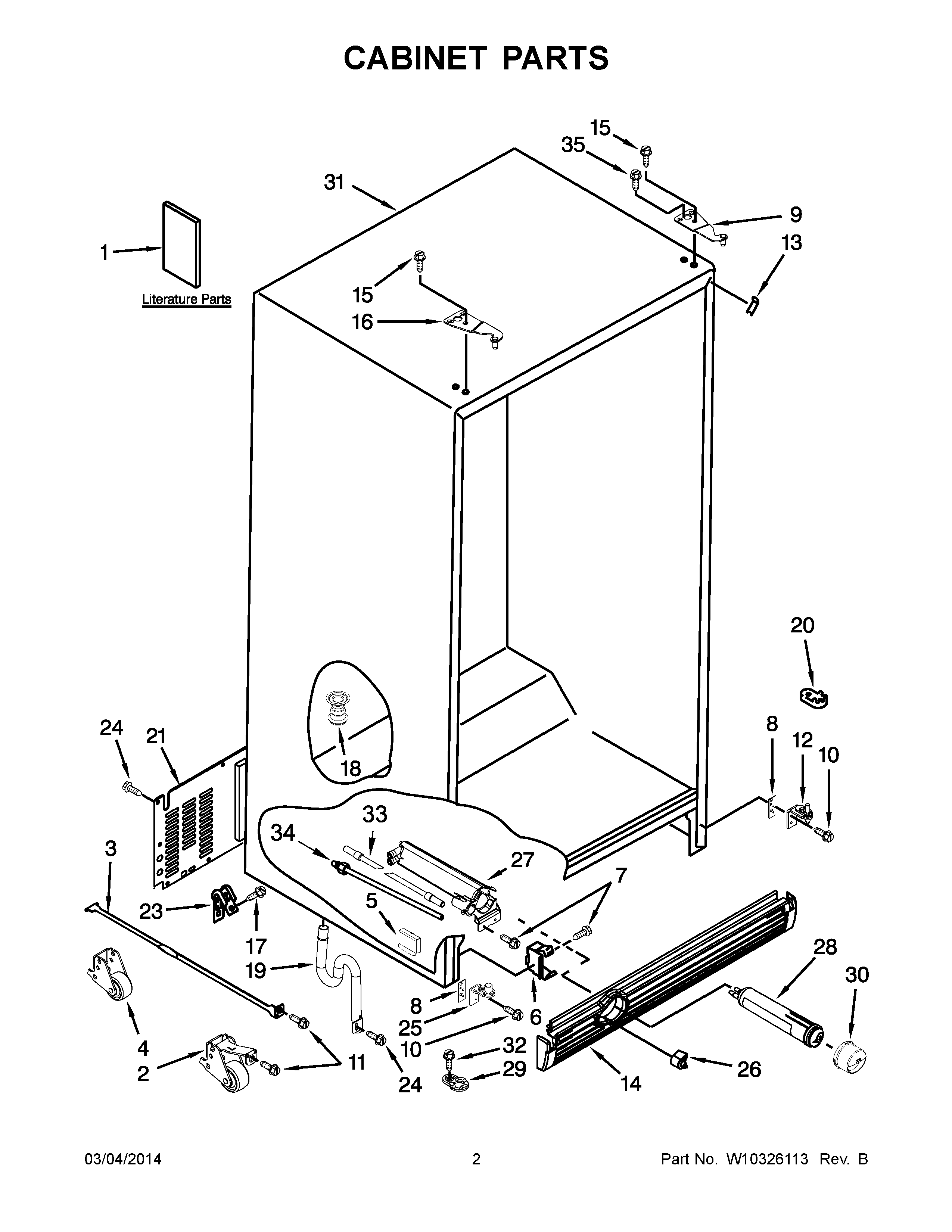

JCD2395WES01 02 – CABINET PARTS

Products

Position	Product
1	MAY W10216710
1	MAY W10203274
1	MAY W10152832
1	MAY 2318510
1	MAY 2220407
2	MAY W10199222
2	MAY W10199223
3	MAY W10199260
4	MAY W10173132
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	MAY 488500
8	MAY 2223545
9	MAY 2307008AP
10	Screw (4)
11	MAY 3400243
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893AP
14	Grille, Filter (Midnight Grey)
15	MAY 3400108
16	MAY 2307007AP
17	Screw (3)
18	MAY 2304888
19	MAY 2254566
20	Door Closer, RC
21	MAY 2223409
22	MAY 3400858
23	MAY 549193
24	MAY 489084
25	Hinge Assembly, Bottom-FC (Includes 28 & 31)
26	BUTTON, WATER FILTER (GREY)
27	MAY W10121140
28	MAY 4396841
29	MAY 2307051
30	CAP, WATER FILTER (GREY)
31	LINER (NOT A SERVICEABLE PART)
32	MAY 489483
33	MAY W10212512
34	MAY 2224020
