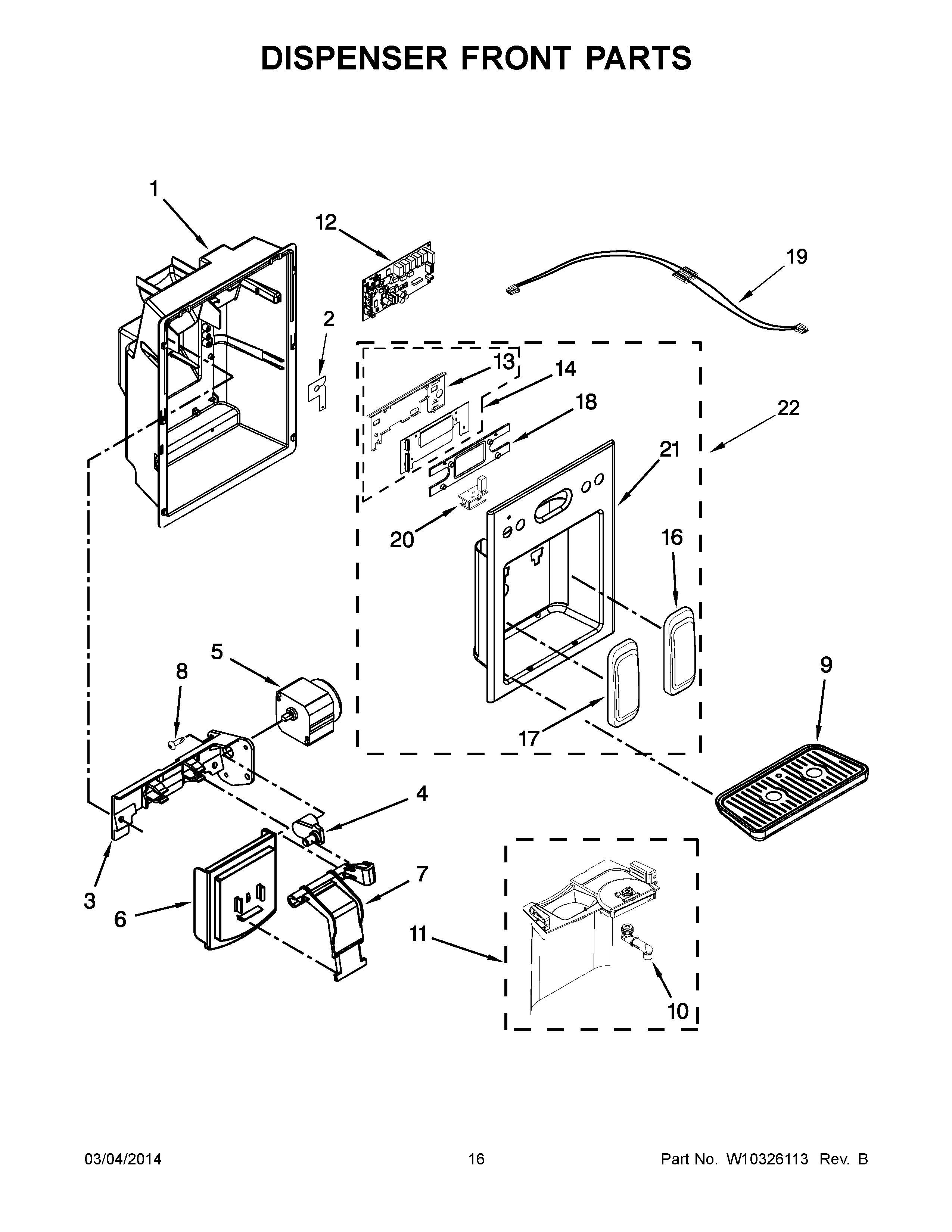

JCD2395WES01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
2MAY 2305447
3MAY 2305202
4MAY 2305242
5MAY W10184813
6MAY 2305258
7MAY 2305204
8MAY 4449745
9FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No.23)
10MAY W10187441
11Seperator Assembly
12MAY 2303843
13Cover, Control
14UI BOARD ASSY (INCLUDES No.18)
16Pad, Water (Grey)
17Pad, Ice (Grey)
18MAY W10205009
19Wire Assembly, User Interface
20MAY W10222215
21LINER (NOT A SERVICEABLE PART)
22Front Cover Assy (Nickel One)
