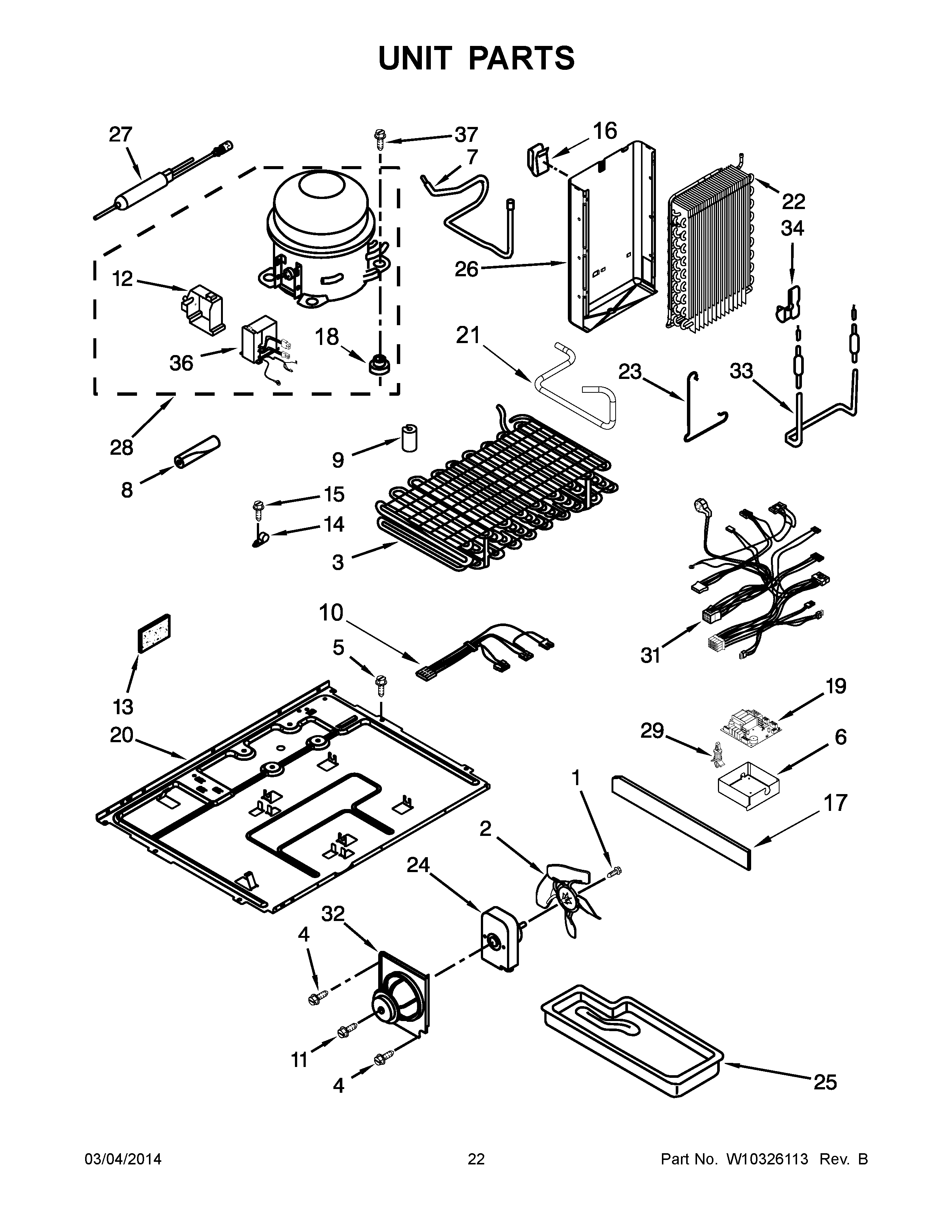

JCD2395WES01 12 – UNIT PARTS

JCD2395WES01 12 – UNIT PARTS

Written by

in

JCD2395WES01 12 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 777070
2	MAY W10139483
3	MAY W10193018
4	MAY 489427
5	MAY 3400524
6	MAY 2223703
7	MAY 2223351
8	Sleeve, Pressure Switch Hose
9	GROMMET, CONDENSER
10	MAY 2310121
11	MAY 8533859
12	MAY 2215676
13	SEALER, INSULATION
14	Clamp, Cable
15	MAY 488649
16	MAY 2155547
17	MAY 2223394
18	Grommet (Production)
19	MAY W10219463
20	MAY 2306932
21	MAY 2325479
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 2223398
26	MAY 2224022
27	Drier
28	COMPRESSOR
29	Spacer (5)
31	MAY 2310122
32	MAY 2224024
33	MAY 2323199
34	MAY 2304287
36	ASSEMBLY, INVERTER BOX
37	MAY 489373
