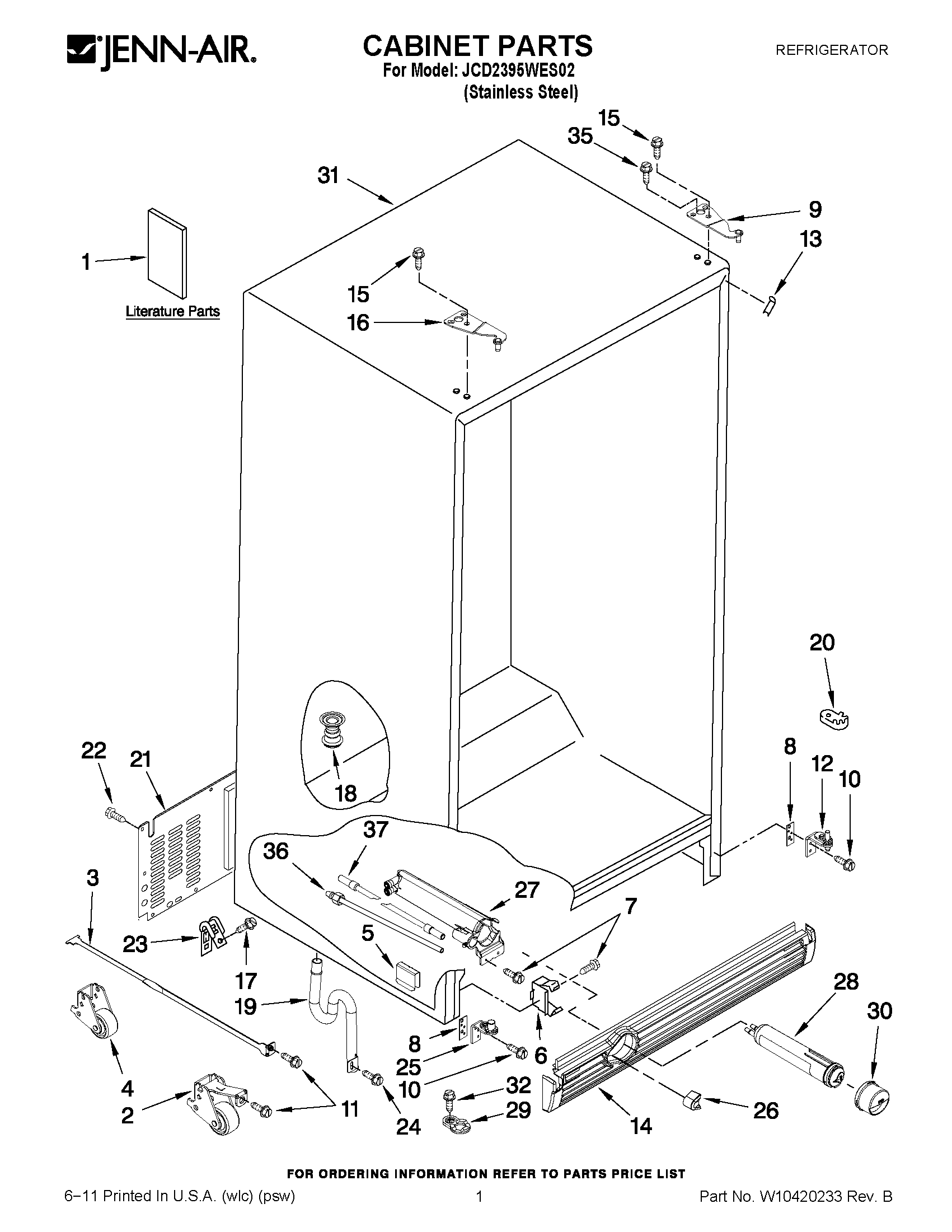

JCD2395WES02 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY W10216710
1	MAY W10203274
1	MAY W10152832
1	MAY 2318510
2	MAY W10199222
2	MAY W10199223
3	MAY W10199260
4	MAY W10173132
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	SCREW, 8 X 1/2
8	MAY 2223545
9	MAY 2307008AP
10	SCREW
11	MAY W10151272
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893AP
14	Grille, Filter (Midnight Grey)
15	MAY W10142288
16	MAY 2307007AP
17	SCREW 8-15 X 3/4
18	MAY 2304888
19	MAY 2254566
20	Door Closer, RC
21	MAY 2223409
22	MAY W10141645
23	Clamp, Cable
24	MAY W10001250
25	Hinge Assembly, Bottom-FC (Includes 28 & 31)
26	BUTTON, WATER FILTER (GREY)
27	MAY W10121140
28	MAY 4396841
29	MAY 2307051
30	CAP, WATER FILTER (GREY)
31	LINER (NOT A SERVICEABLE PART)
32	SCREW 8-32 X 1/2
35	MAY W10142286
36	MAY 2224020
37	MAY W10281289
