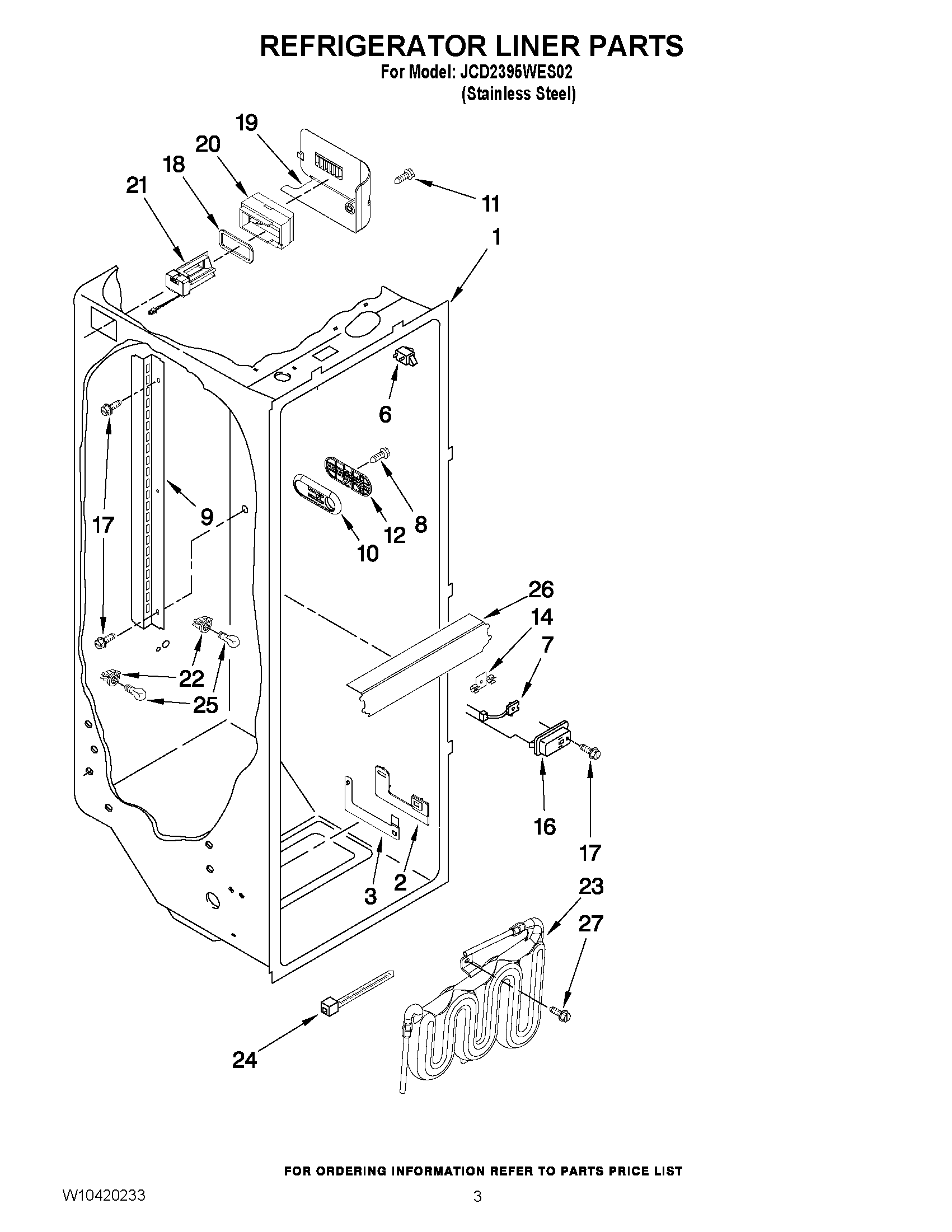

JCD2395WES02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2223524
3	MAY 2223339
6	MAY 1118894
7	MAY 2188820
8	MAY W10004810
9	Shelf Ladder
10	MAY 2301234
11	MAY W10141645
12	MAY W10162918
14	MAY 2209204
16	MAY 1116793
17	SCREW, 8 X 1/2
18	MAY 2304597
19	MAY 2223403
20	MAY 2224076
21	MAY 2220377
22	Socket, Light
23	MAY 2307107
24	TIE, WIRE
25	MAY W10311505
26	MAY 2223663
27	SCREW 8-15 X 3/4
