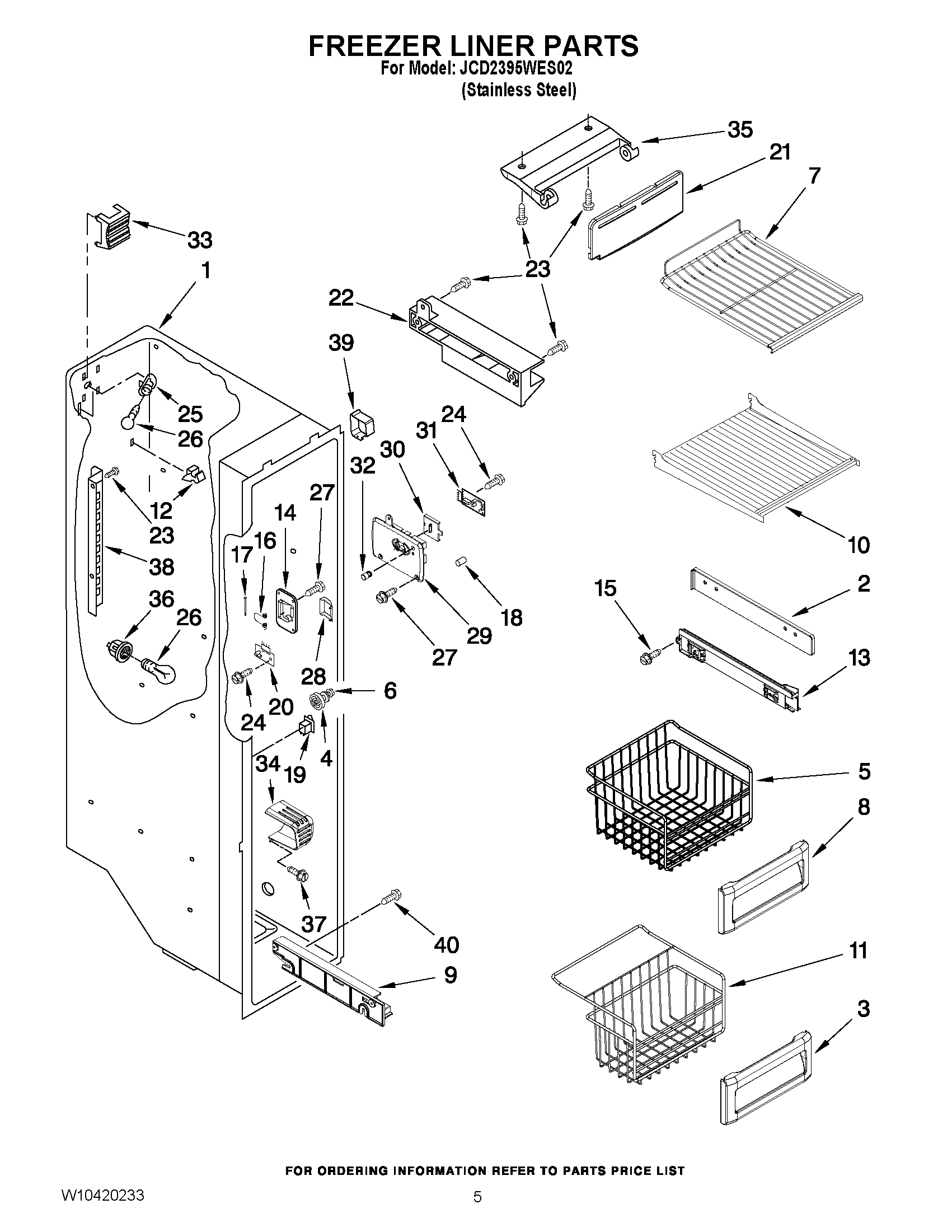

JCD2395WES02 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2223777
3	FRONT, BASKET
4	Stud Assembly
5	MAY 2223811
6	MAY W10191952
7	MAY 2223500
8	Basket, Front
9	MAY 2223788
9	MAY 2223787
10	MAY 2223681
11	MAY 2223812
12	MAY 2315163
13	MAY 2301544
13	MAY 2301545
14	MAY 2259487
15	MAY W10154233
16	SPRING, DOOR
17	PIN, DOOR
18	MAY 2198665
19	Switch, Rocker Arm
20	MAY W10193840
21	MAY W10185438
22	Slide, Ice Maker Mounting (Right Side)
22	MAY 2306900
23	SCREW, 8 X 1/2
24	Screw (2)
25	Socket, Light
26	MAY W10311505
27	SCREW (WHITE)
28	MAY 2198633
29	MAY W10173569
30	MAY 2315398
31	MAY W10290817
32	MAY 2198643
33	MAY 2198589
34	MAY 2212340
35	Bracket, Ice Maker Cover
36	SOCKET, LIGHT
37	SCREW
38	LADDER (LEFT HAND)
38	LADDER (RIGHT HAND)
39	MAY 2303378
40	MAY W10004810
