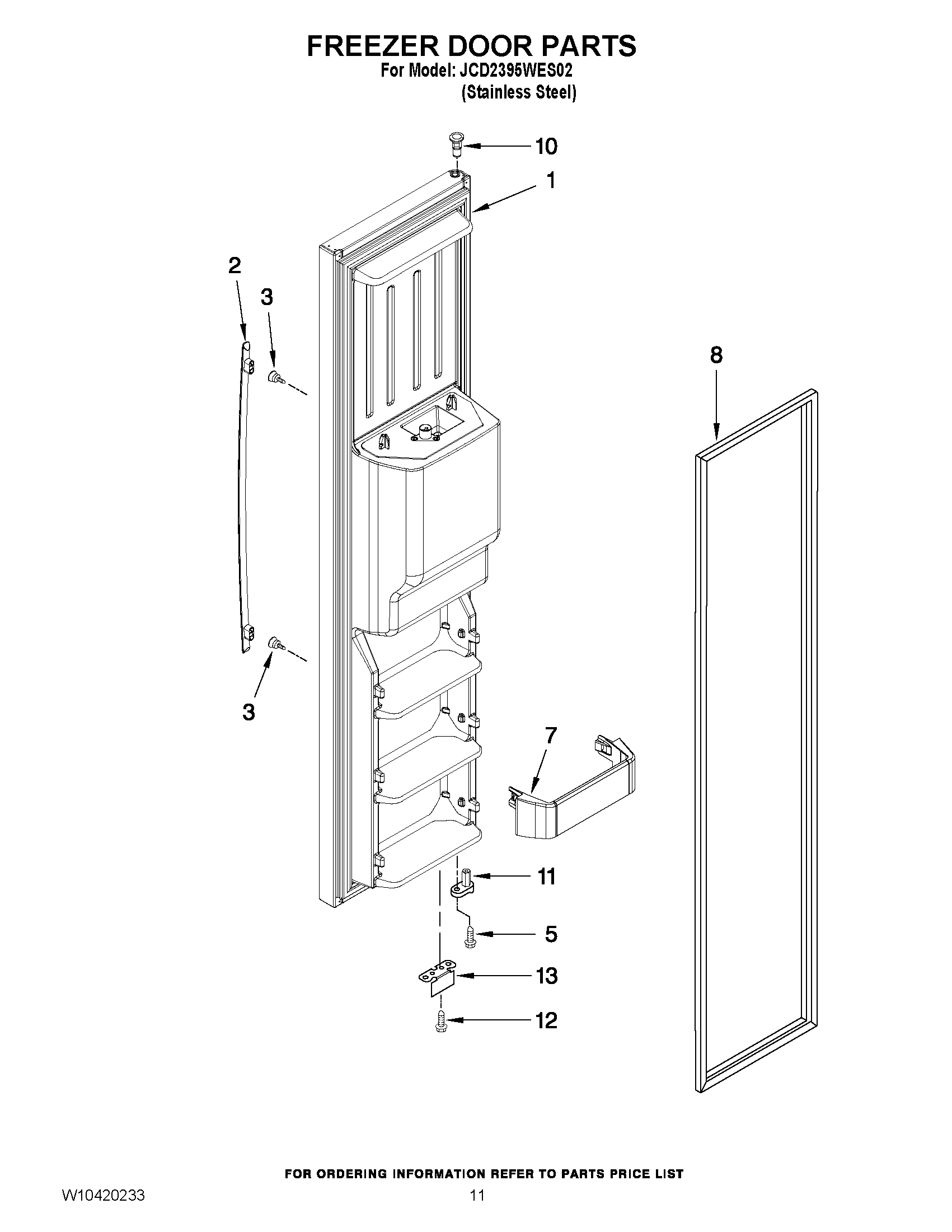

JCD2395WES02 07 – FREEZER DOOR PARTS

Products

Position	Product
NI	MAY W10291319
NI	WIRE HARNESS, FREEZER DOOR
1	MAY W10318313
2	HANDLE, DOOR
3	Stud
5	SCREW 10-32 X 1/2
7	MAY 2223559
8	GASKET, DOOR (GREY)
10	MAY 2308091
11	Thimble Cam, FC
12	SCREW 10-32 X 1/2
13	MAY 2306940
