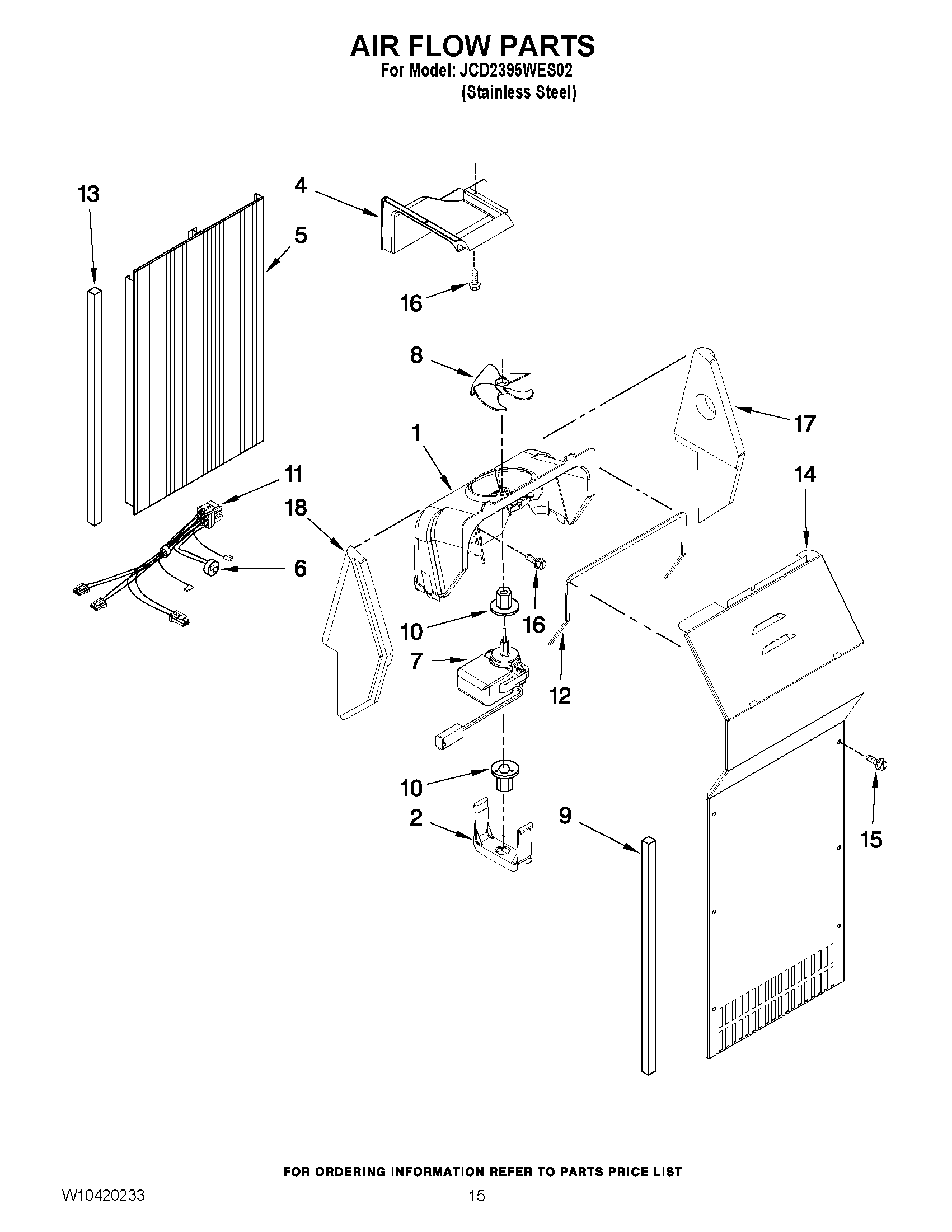

JCD2395WES02 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2223733
4	MAY W10256500
5	DUCT, FREEZER COMPARTMENT AIR
6	MAY W10225581
7	MAY 2259385
8	Blade, Fan (Evaporator)
9	Gasket
10	Grommet
11	MAY W10297478
12	Gasket, Fan Scroll
13	MAY 2203876
14	MAY 2223413
15	SCREW
16	SCREW, 8 X 1/2
17	MAY 2223395
18	SUPPORT, FAN SCROLL (LEFT HAND)
