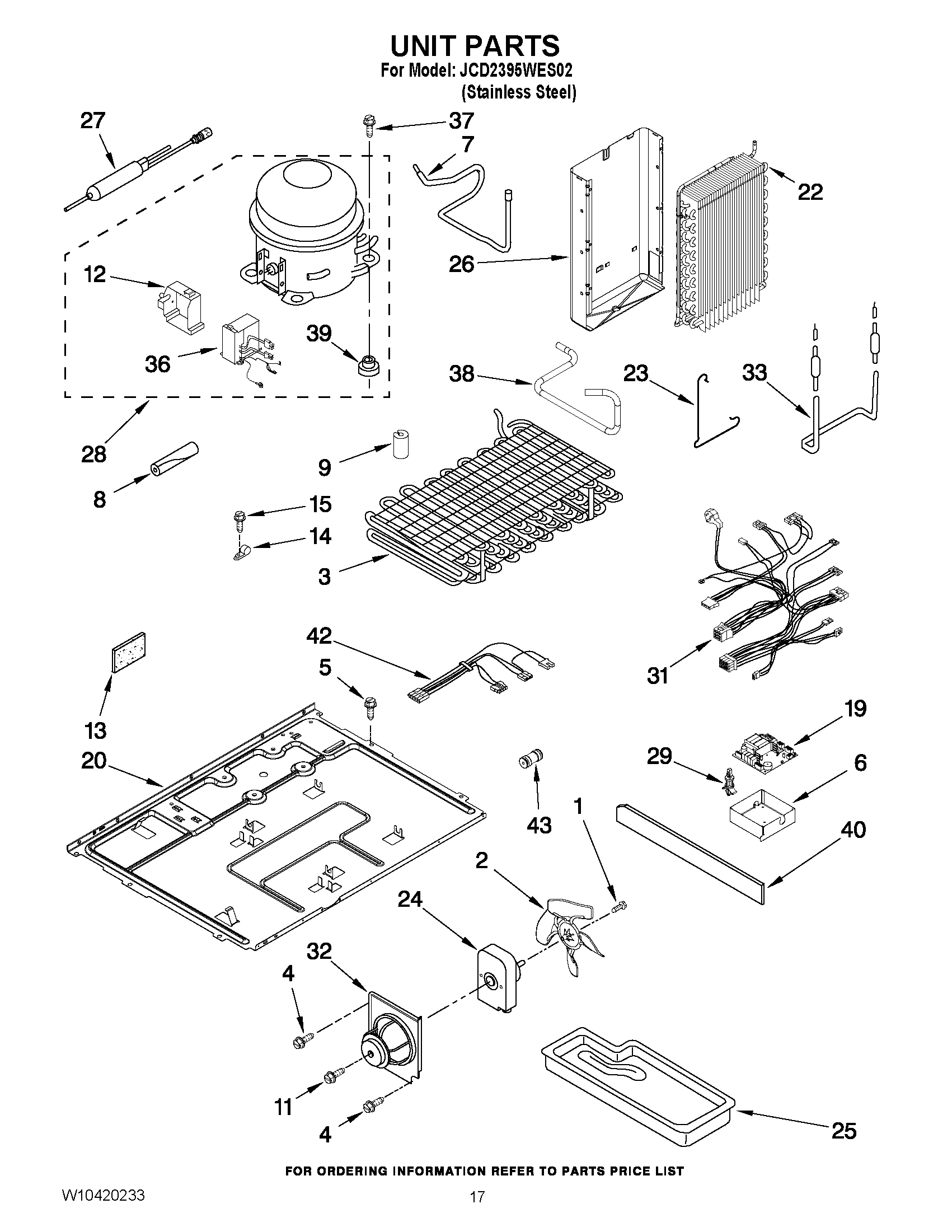

JCD2395WES02 11 – UNIT PARTS

JCD2395WES02 11 – UNIT PARTS

Written by

in

JCD2395WES02 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	SCREW, 8-32 X 5/16
2	MAY W10139483
3	MAY W10193018
4	MAY W10171469
5	MAY W10142287
6	MAY 2223703
7	MAY 2223351
8	Sleeve, Pressure Switch Hose
9	GROMMET, CONDENSER
11	MAY W10142255
12	MAY 2215676
13	SEALER, INSULATION
14	Clamp, Cable
15	MAY W10141645
19	MAY W10219463
20	MAY 2306932
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 2223398
26	MAY 2224022
27	Drier
28	COMPRESSOR
29	Spacer (5)
31	MAY 2310122
32	MAY 2224024
33	MAY 2323199
36	ASSEMBLY, INVERTER BOX
37	MAY 489373
38	PROCESS TUBE
39	Grommet (Production)
40	MAY 2223394
42	MAY 2310121
43	CONNECTOR, UNION
