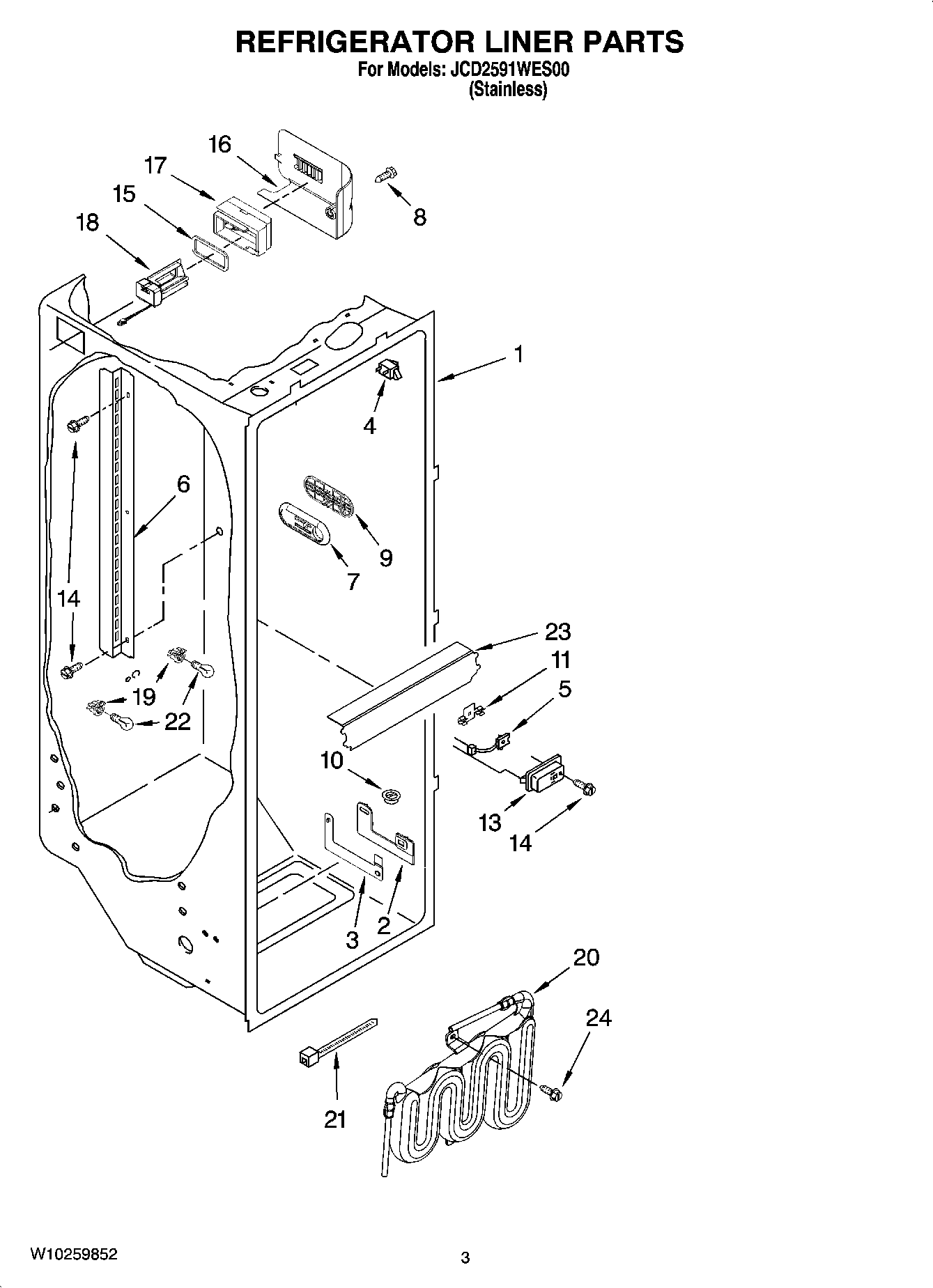

JCD2591WES00 02 – REFRIGERATOR LINER PARTS

JCD2591WES00 02 – REFRIGERATOR LINER PARTS

Written by

in

JCD2591WES00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
2	MAY 2223524
3	MAY 2223339
4	MAY 1118894
5	MAY 2188820
6	MAY 2223456
7	MAY 2301234
8	MAY 489084
9	MAY W10162918
10	MAY 2171846
11	MAY 2209204
13	MAY 1116793
14	SCREW, 8 X 1/2
15	MAY 2304597
16	MAY 2223403
17	MAY 2224076
18	MAY 2220377
19	Socket, Light
20	MAY 2307107
21	TIE, WIRE
22	MAY W10194422
23	MAY 2223663
24	SCREW 8-32 X 1/2
