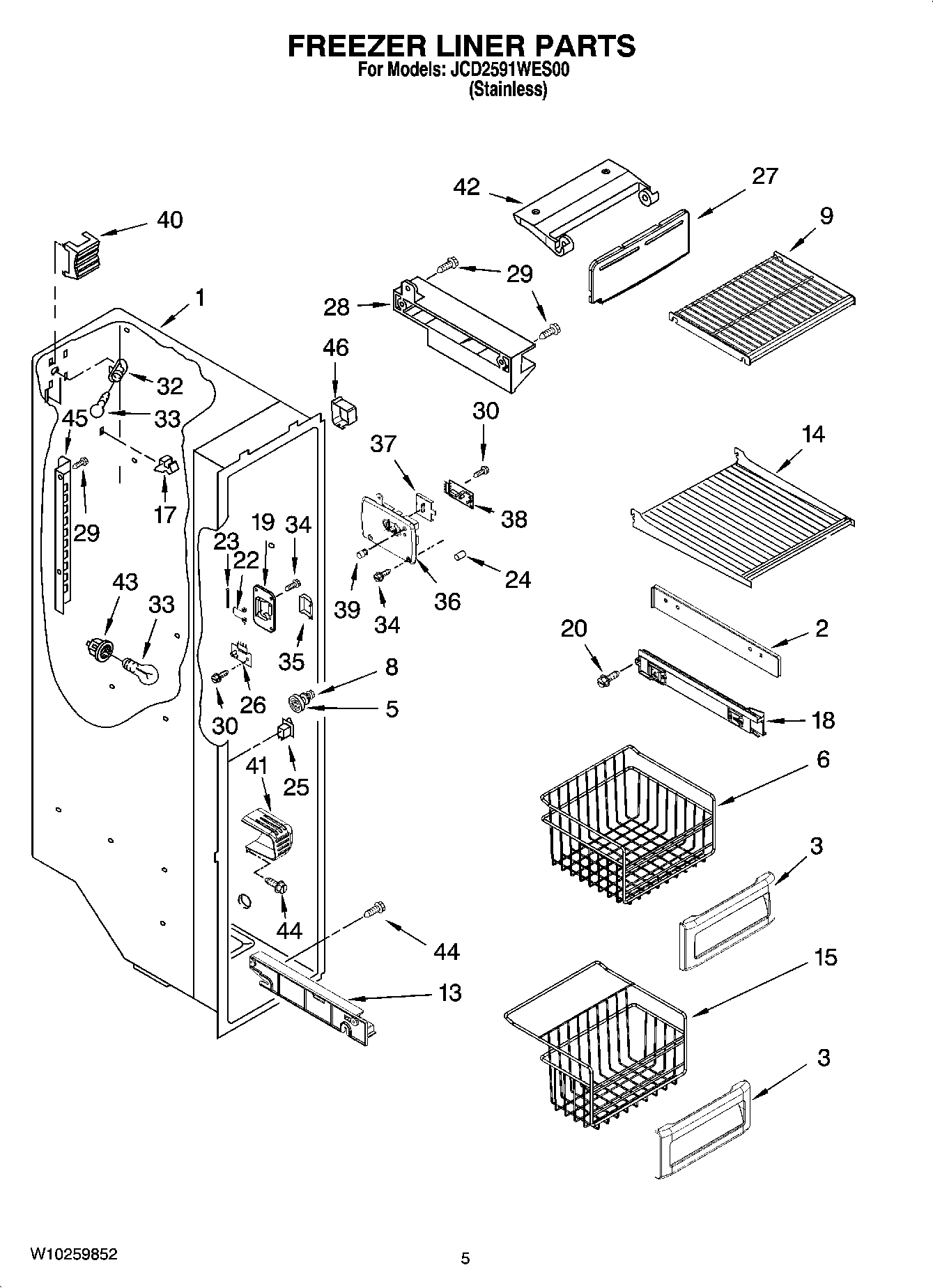

JCD2591WES00 04 – FREEZER LINER PARTSadmin2025-04-26T09:17:24+00:00JCD2591WES00 04 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 2 | MAY 2223777 |
| 3 | Basket, Front |
| 5 | MAY 2196483 |
| 6 | BASKET, DEEP (2) (INCLUDES No.3) |
| 8 | MAY W10191952 |
| 9 | MAY 2223500 |
| 13 | MAY 2223787 |
| 13 | MAY 2223788 |
| 14 | MAY 2254615 |
| 15 | MAY 2223694 |
| 17 | Clip, Air Duct (2) |
| 18 | MAY 2301545 |
| 18 | MAY 2301544 |
| 19 | MAY 2259487 |
| 20 | MAY 8534064 |
| 22 | SPRING, DOOR |
| 23 | PIN, DOOR |
| 24 | MAY 2198665 |
| 25 | Switch, Rocker Arm |
| 26 | MAY W10193840 |
| 27 | MAY W10185438 |
| 28 | Slide, Ice Maker Mounting (Right Side) |
| 28 | MAY 2306900 |
| 29 | SCREW, 8 X 1/2 |
| 30 | Screw (2) |
| 32 | Socket, Light |
| 33 | MAY W10194422 |
| 34 | MAY 8281185 |
| 35 | MAY 2198633 |
| 36 | MAY W10173569 |
| 37 | MAY 2315398 |
| 38 | MAY W10193666 |
| 39 | MAY 2198643 |
| 40 | MAY 2198589 |
| 41 | MAY 2212340 |
| 42 | Bracket, Ice Maker Cover |
| 43 | SOCKET, LIGHT |
| 44 | MAY 3400893 |
| 45 | MAY 2223414 |
| 45 | MAY 2223415 |
| 46 | MAY 2303378 |
