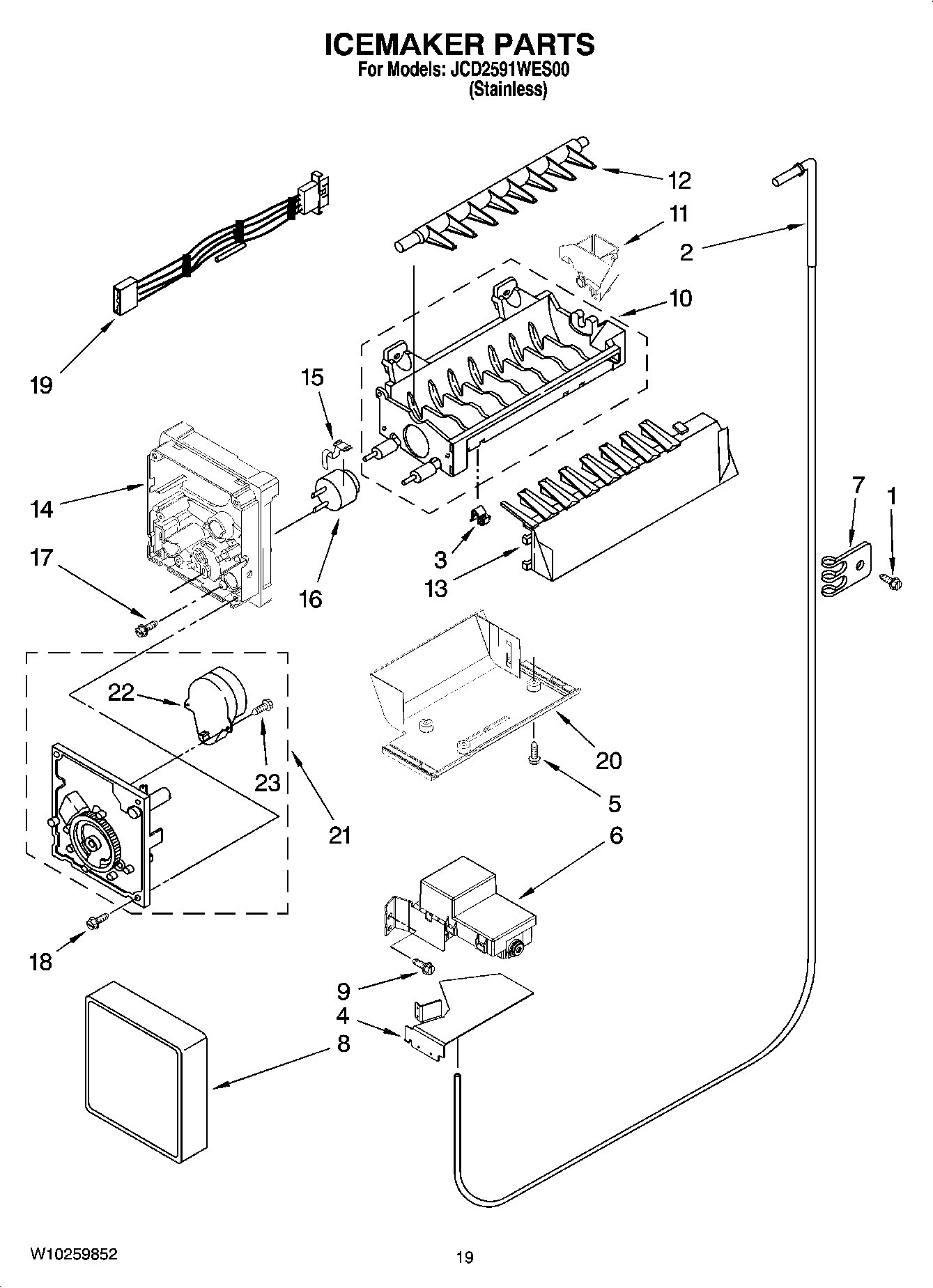

JCD2591WES00 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2303216
3	Clip
4	MAY 2313394
5	SCREW, 8 X 1/2
6	MAY 2319734
7	Clip, Tube
8	MAY 2174358
9	SCREW 8-32 X 1/2
10	MAY W10122527
11	Cup-Water Fill
12	MAY 627843
13	Ice Striper
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	MAY 8533917
19	MAY 2187467
20	Bracket, Ice Maker Mounting
21	Module Assembly (Includes Items 23 and 24)
23	MAY 489276
100	MAY W10190960
