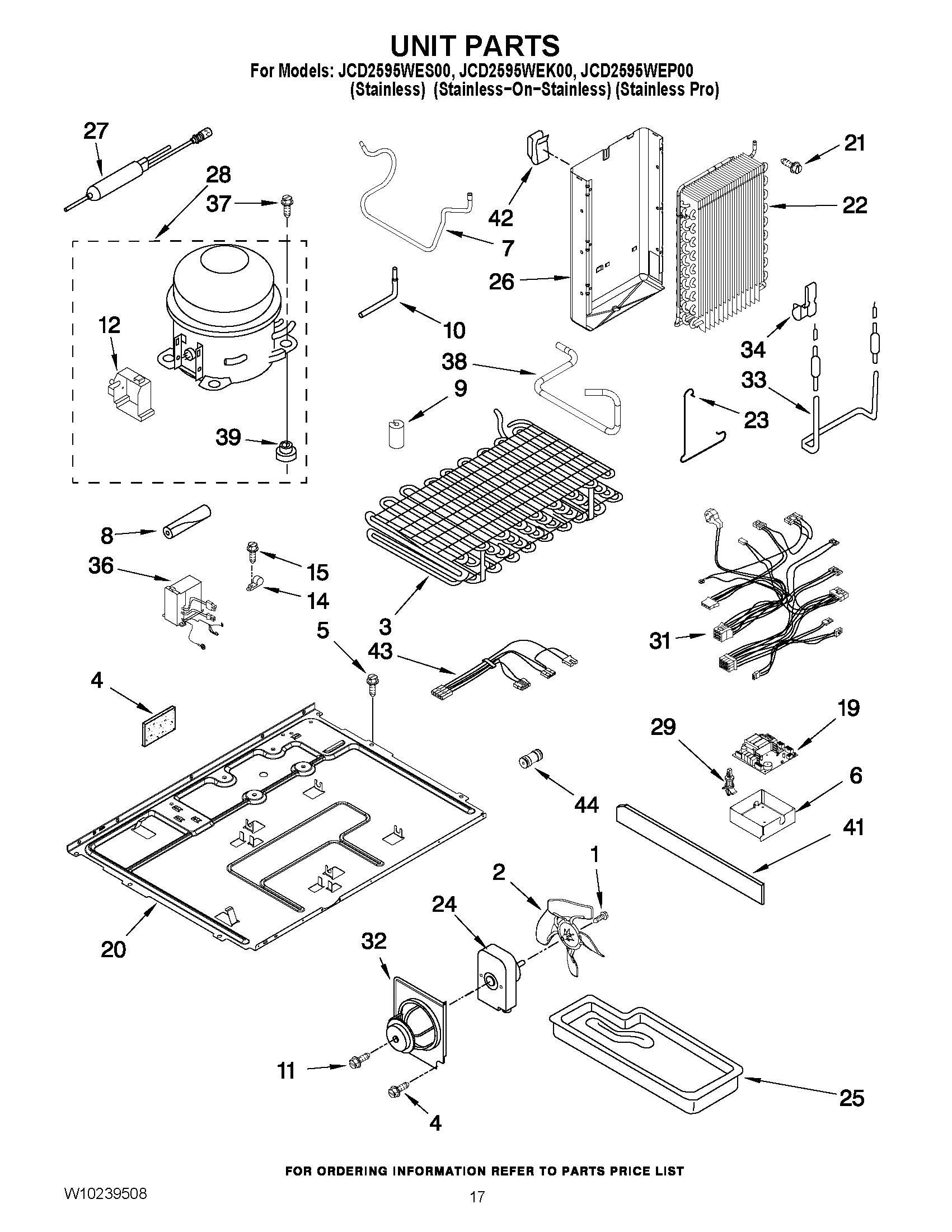

JCD2595WEK00 11 – UNIT PARTS

JCD2595WEK00 11 – UNIT PARTS

Written by

in

JCD2595WEK00 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	SCREW, 8-32 X 5/16
2	MAY W10139483
3	MAY W10131059
4	SEALER, INSULATION
5	MAY 3400524
6	MAY 2223703
7	MAY 2223351
8	Sleeve, Pressure Switch Hose
9	GROMMET, CONDENSER
10	MAY 2325479
11	MAY 8533859
12	MAY 2215676
14	Clamp, Cable
15	Screw
19	MAY W10185291
20	MAY 2306932
21	SCREW, 8 X 1/2
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 2223398
26	MAY 2224022
27	Drier
28	COMPRESSOR
29	Spacer (5)
31	MAY 2310122
32	MAY 2224024
33	MAY 2323199
34	MAY 2304287
36	ASSEMBLY, INVERTER BOX
37	MAY 489373
38	MAY W10181542
39	Grommet (Production)
41	MAY 2223394
42	MAY 2155547
43	MAY 2310121
44	Connector, Water Tube (1/4“)
