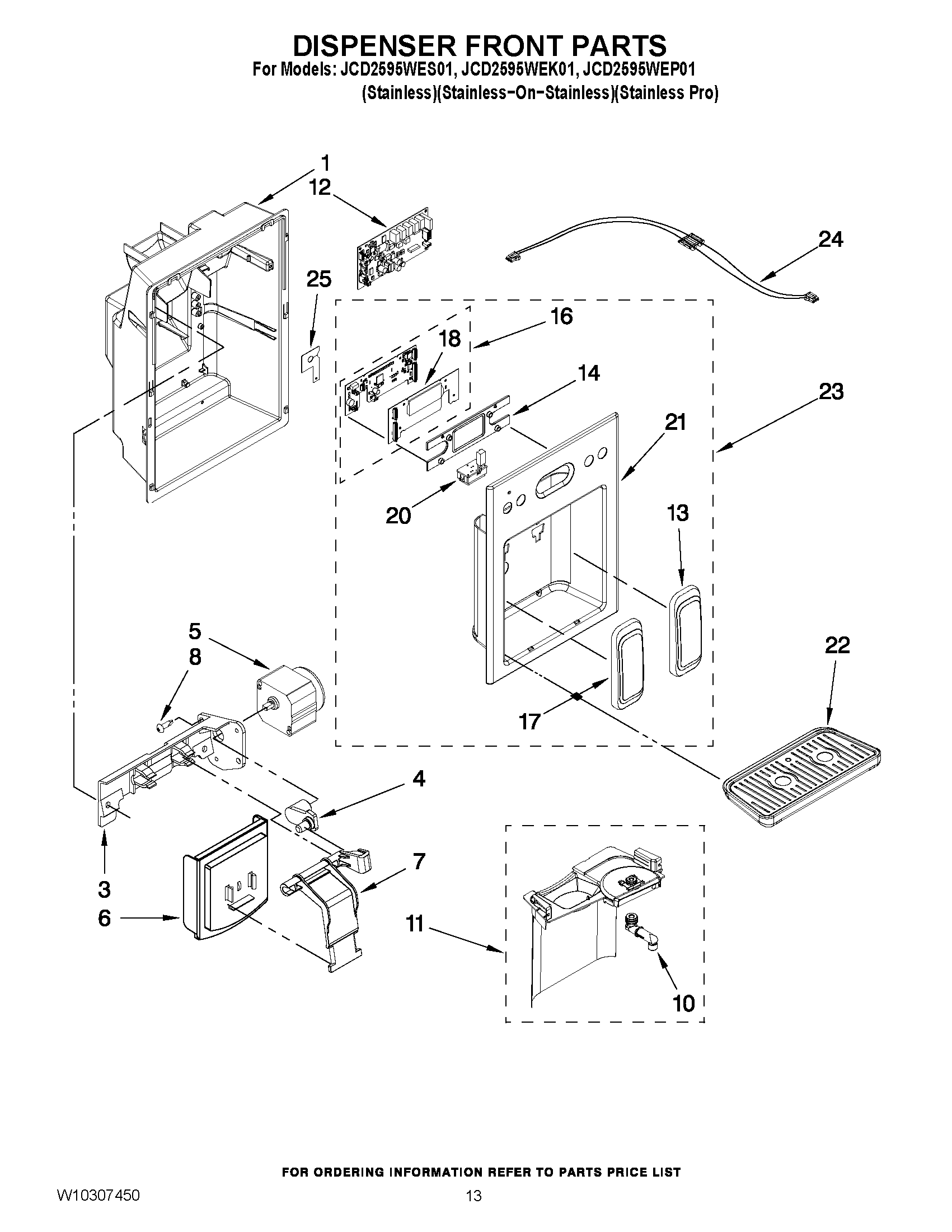

JCD2595WEK01 08 – DISPENSER FRONT PARTS

Products

Position	Product
3	MAY 2305202
4	MAY 2305242
5	MAY W10184813
6	MAY 2305258
7	MAY 2305204
8	MAY 4449745
10	MAY W10187441
11	Seperator Assembly
12	MAY 2303843
13	Pad, Water (Grey)
14	MAY W10205009
16	UI BOARD ASSY (INCLUDES No.18)
17	Pad, Ice (Grey)
18	Cover, Control
20	MAY W10222215
21	LINER (NOT A SERVICEABLE PART)
22	FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No.23)
23	Front Cover Assy (Nickel One)
24	Wire Assembly, User Interface
25	MAY 2305447
