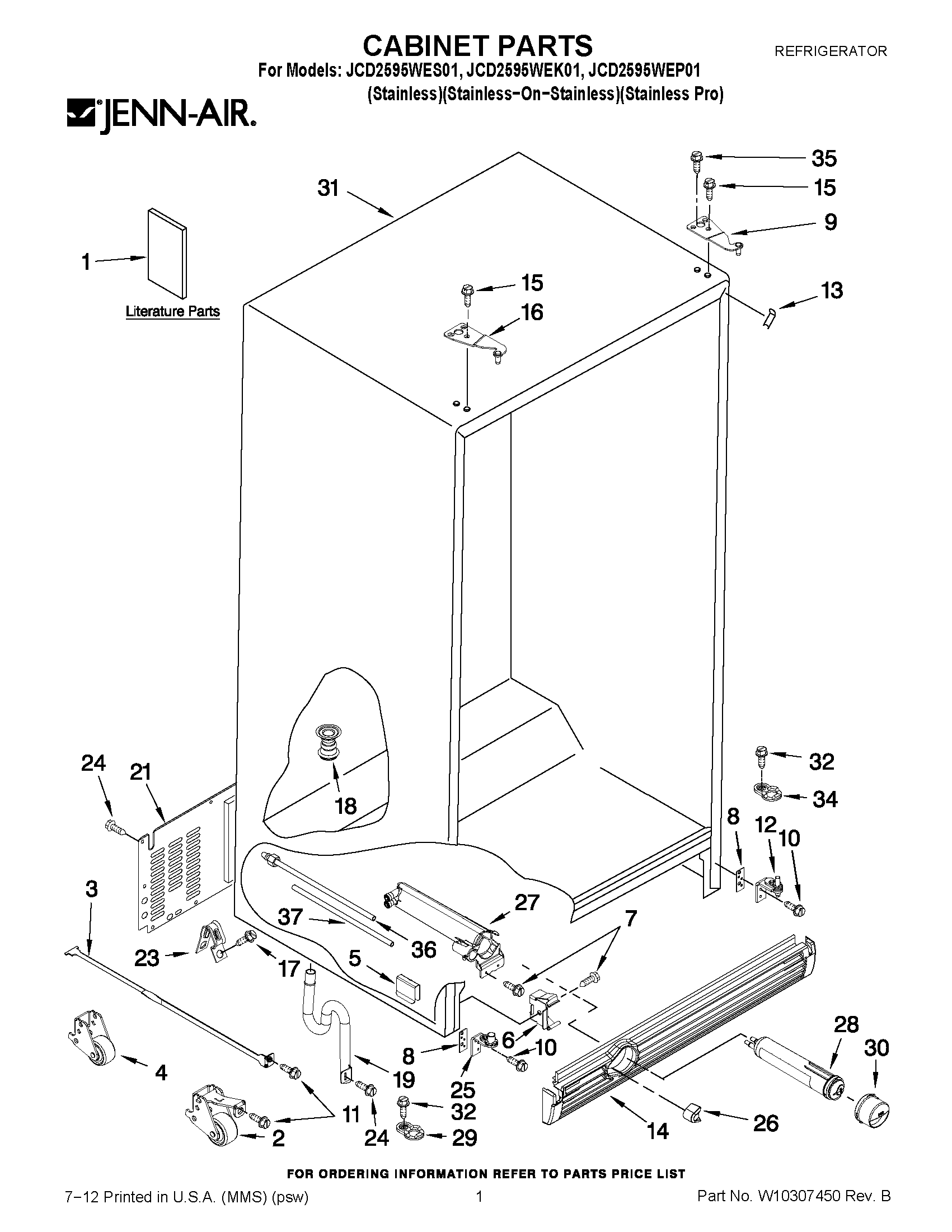

JCD2595WEP01 01 – CABINET PARTS

Products

PositionProduct
1MAY 2220407
1MAY 2318510
1MAY W10204993
1MAY W10152832
1MAY W10203274
2MAY W10199222
2MAY W10199223
3MAY W10199260
4MAY W10173132
5CLIP, AXLE RETAINER
6MAY 2155013
7SCREW, 8 X 1/2
8MAY 2223545
9MAY 2307008AP
10Screw (4)
11MAY 3400243
12HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13MAY 2223893AP
14Grille, Filter (Midnight Grey)
15MAY 3400108
16MAY 2307007AP
17Screw (3)
18MAY 2304888
19MAY 2254566
21MAY 2223409
23MAY 549193
24MAY 489084
25Hinge Assembly, Bottom-FC (Includes 28 & 31)
26BUTTON, WATER FILTER (GREY)
27MAY W10121140
28MAY 8212650
29MAY 2307051
30CAP, WATER FILTER (GREY)
31MAY W10142234
32LINER (NOT A SERVICEABLE PART)
34Door Closer, RC
35MAY 3400858
36MAY 2224020
37MAY W10212512
