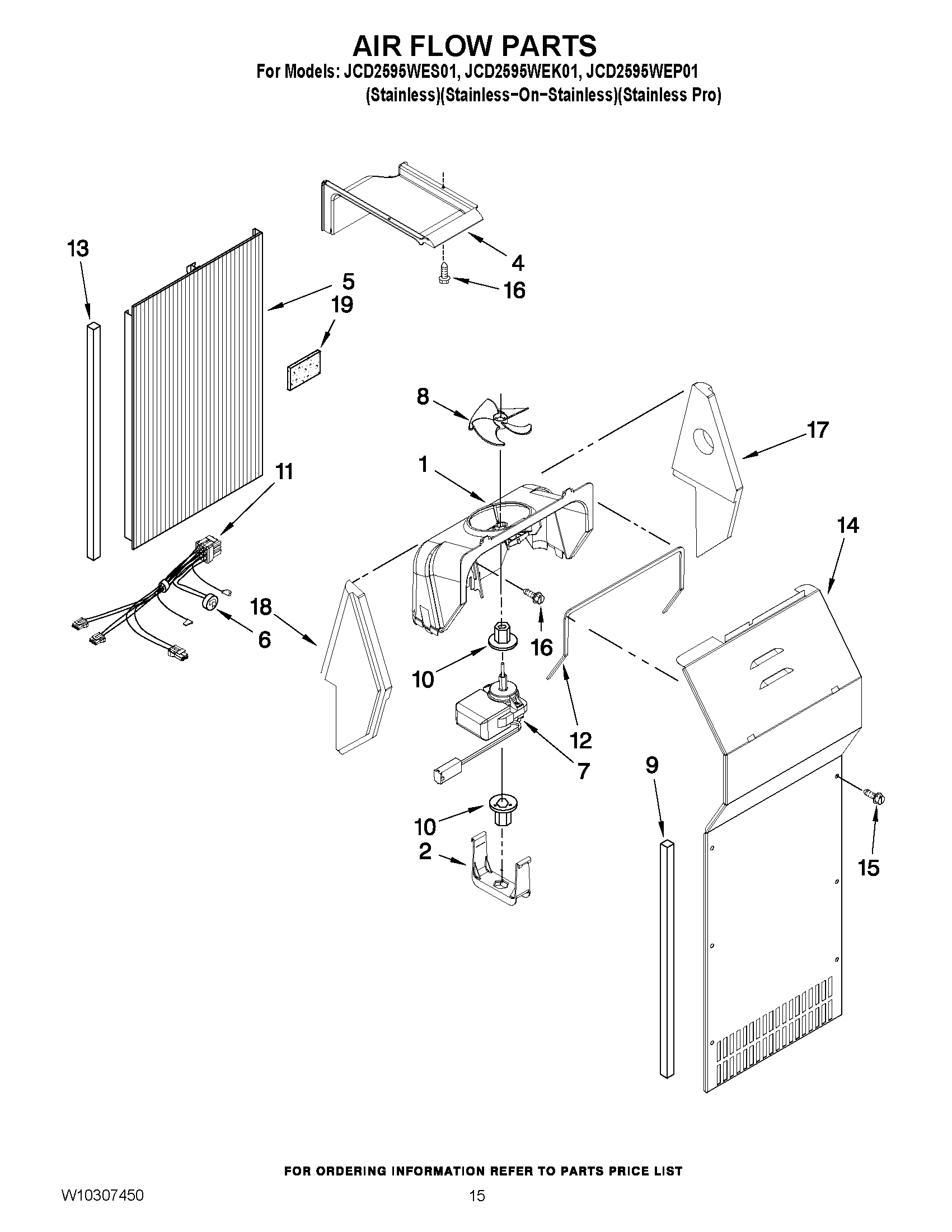

JCD2595WEP01 09 – AIR FLOW PARTS

JCD2595WEP01 09 – AIR FLOW PARTS

Written by

in

JCD2595WEP01 09 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2223733
4	MAY W10256500
5	MAY 2223297
6	MAY 2321799
7	MAY 2259385
8	Blade, Fan (Evaporator)
9	Gasket
10	Grommet
11	MAY W10297478
12	Gasket, Fan Scroll
13	MAY 2203876
14	MAY 2223413
15	MAY 8281159
16	SCREW, 8 X 1/2
17	MAY 2223395
18	SUPPORT, FAN SCROLL (LEFT HAND)
19	INSULATION
