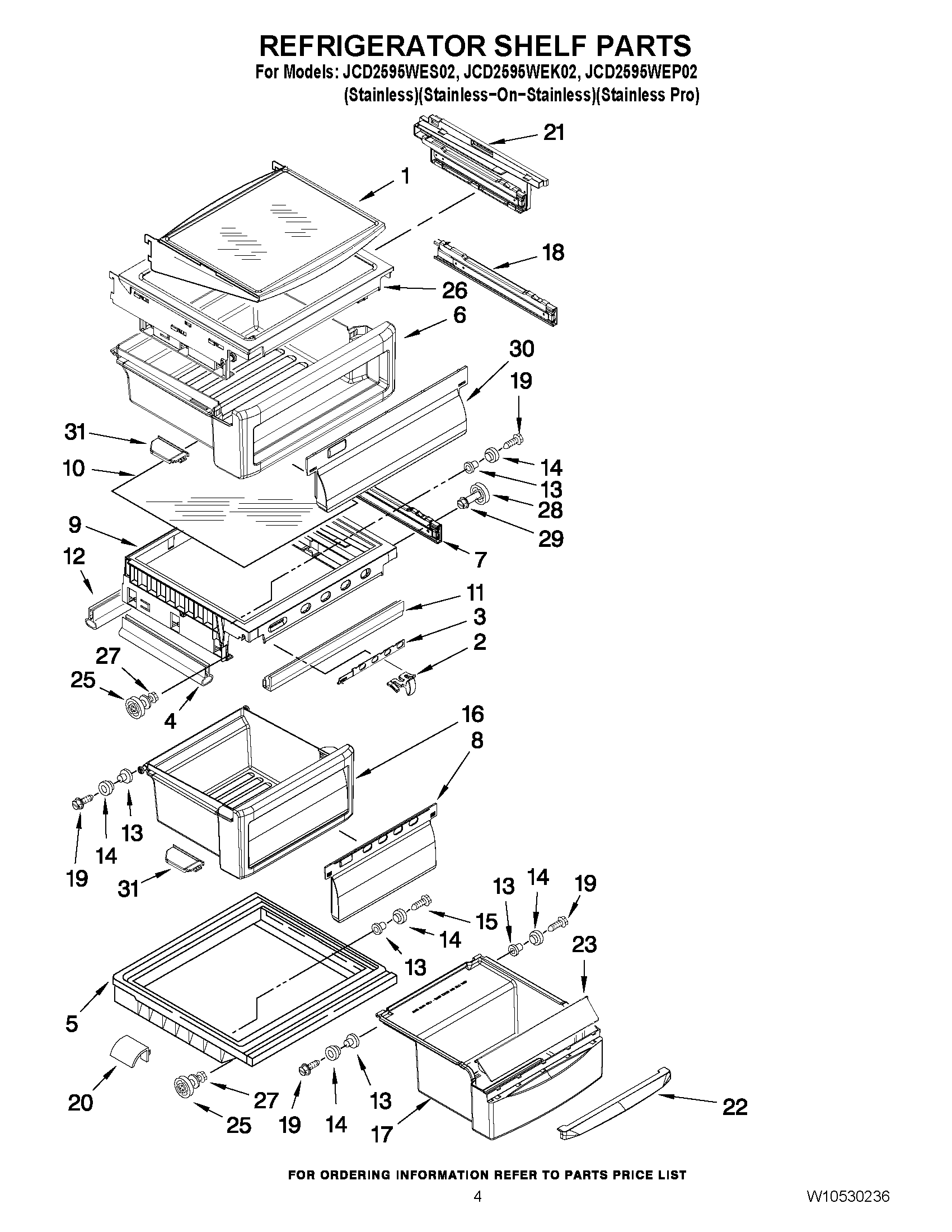

JCD2595WEP02 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Button, Humidity
3	Slide, Humidity
4	MAY 2301117
5	COVER, MEAT PAN (INCLUDES ITEMS 13, 14, 15 & 20)
6	MAY W10163047
7	Glide Assembly, Crisper Pan (Right Side)
7	Glide Assembly, Crisper Pan (Left Side)
8	Window, Crisper Pan
9	MAY W10163043
10	MAY W10163045
11	Gasket (Front)
12	Gasket (Rear)
13	MAY 2174478
14	MAY 2188212
15	MAY 489211
16	Crisper Pan (Includes 8, 13 14, 19 & 29)
17	MAY W10162924
18	Glide Assembly, Snack Pan (Left Side)
18	Glide Assembly, Snack Pan (Right Side)
19	MAY 489261
20	MAY 2223487
21	MAY 2301570
21	MAY 2301569
22	Handle
23	MAY W10270142
25	ASSEMBLY, SHELF STUD
26	MAY W10163048
27	MAY W10191954
28	ASSEMBLY, SHELF STUD
29	MAY W10191952
30	MAY 2301006
31	Cap, Snack Pan (Left Side)
31	Cap, Snack Pan (Right Side)
