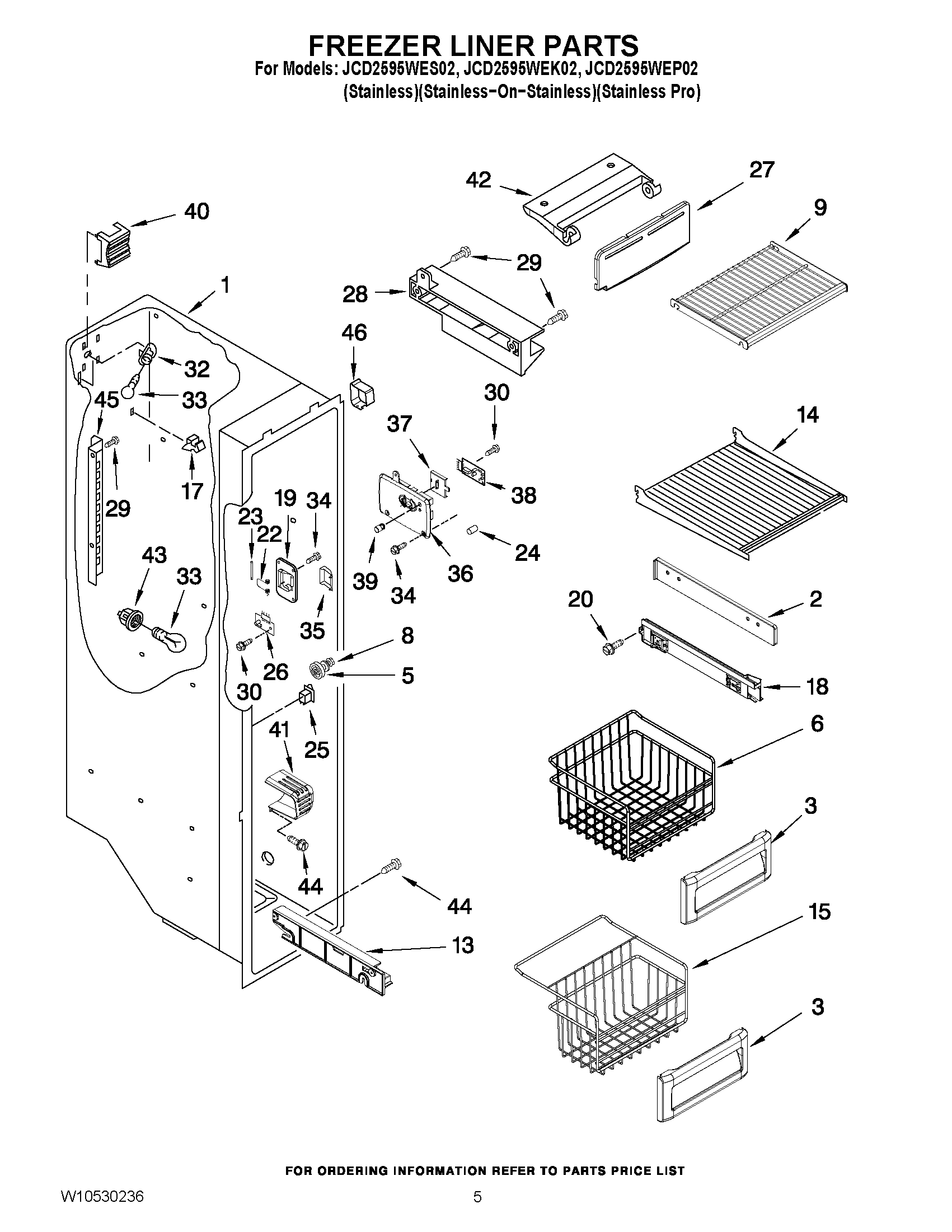

JCD2595WEP02 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2223777
3	Basket, Front
5	ASSEMBLY, SHELF STUD
6	BASKET, DEEP (2) (INCLUDES No.3)
8	MAY W10191952
9	MAY 2223500
13	MAY 2223788
13	MAY 2223787
14	MAY 2223681
15	MAY 2223694
17	MAY 2315163
18	MAY 2301544
18	MAY 2301545
19	MAY 2259487
20	MAY W10154233
22	SPRING, DOOR
23	PIN, DOOR
24	MAY 2198665
25	Switch, Rocker Arm
26	MAY W10193840
27	MAY W10185438
28	Slide, Ice Maker Mounting (Right Side)
28	MAY 2306900
29	SCREW, 8 X 1/2
30	Screw (2)
32	Socket, Light
33	MAY W10311505
34	SCREW (WHITE)
35	MAY 2198633
36	MAY W10173569
37	MAY 2315398
38	MAY W10290817
39	MAY 2198643
40	MAY 2198589
41	MAY 2212340
42	Bracket, Ice Maker Cover
43	SOCKET, LIGHT
44	MAY W10004810
45	MAY 2223414
45	MAY 2223415
46	MAY 2303378
