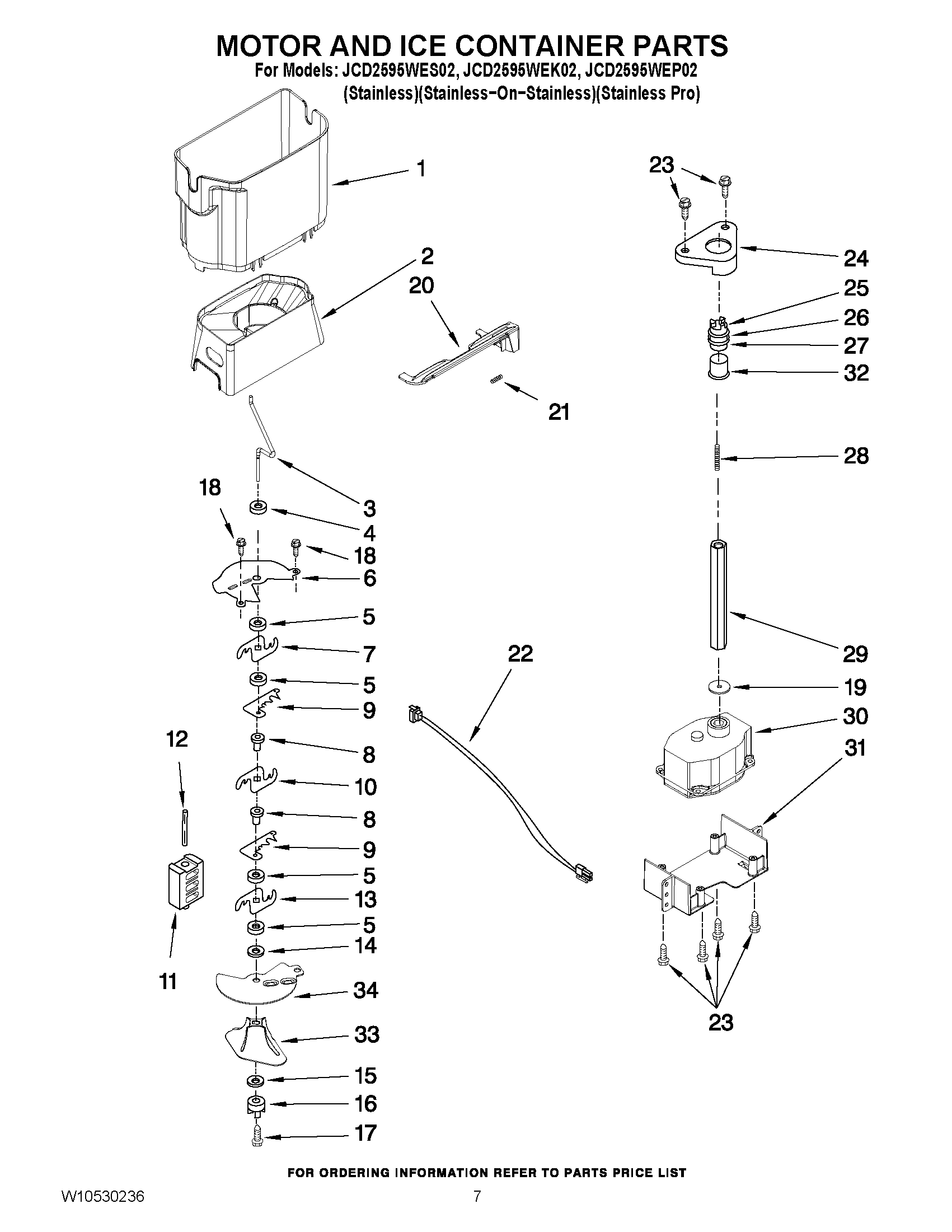

JCD2595WEP02 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in
JCD2595WEP02 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10139482
2
MAY W10205004
3
MAY W10140642
4
Washer, Auger
5
MAY 1119007
6
MAY W10139321
7
MAY W10278733
8
MAY 1119005
9
MAY 2257020
10
MAY W10278732
11
MAY 2317239
12
MAY 489229
13
MAY W10278731
14
MAY 489235
15
MAY 2198661
16
COUPLING
17
MAY 8281164
18
SCREW (STAINLESS)
19
MAY 2305382
20
MAY W10140685
21
MAY 2198608
22
Wire Harness, IDI Motor
23
Screw
24
MAY 2212369
25
Coupling, Bottom
26
MAY 2198628
27
MAY 2212370
28
SPRING
29
MAY 2305243
30
MAY 2252130
31
MAY 2305208
32
MAY 2212365
33
MAY 2317243
34
Divider Chamber
100
MAY W10205005
←
