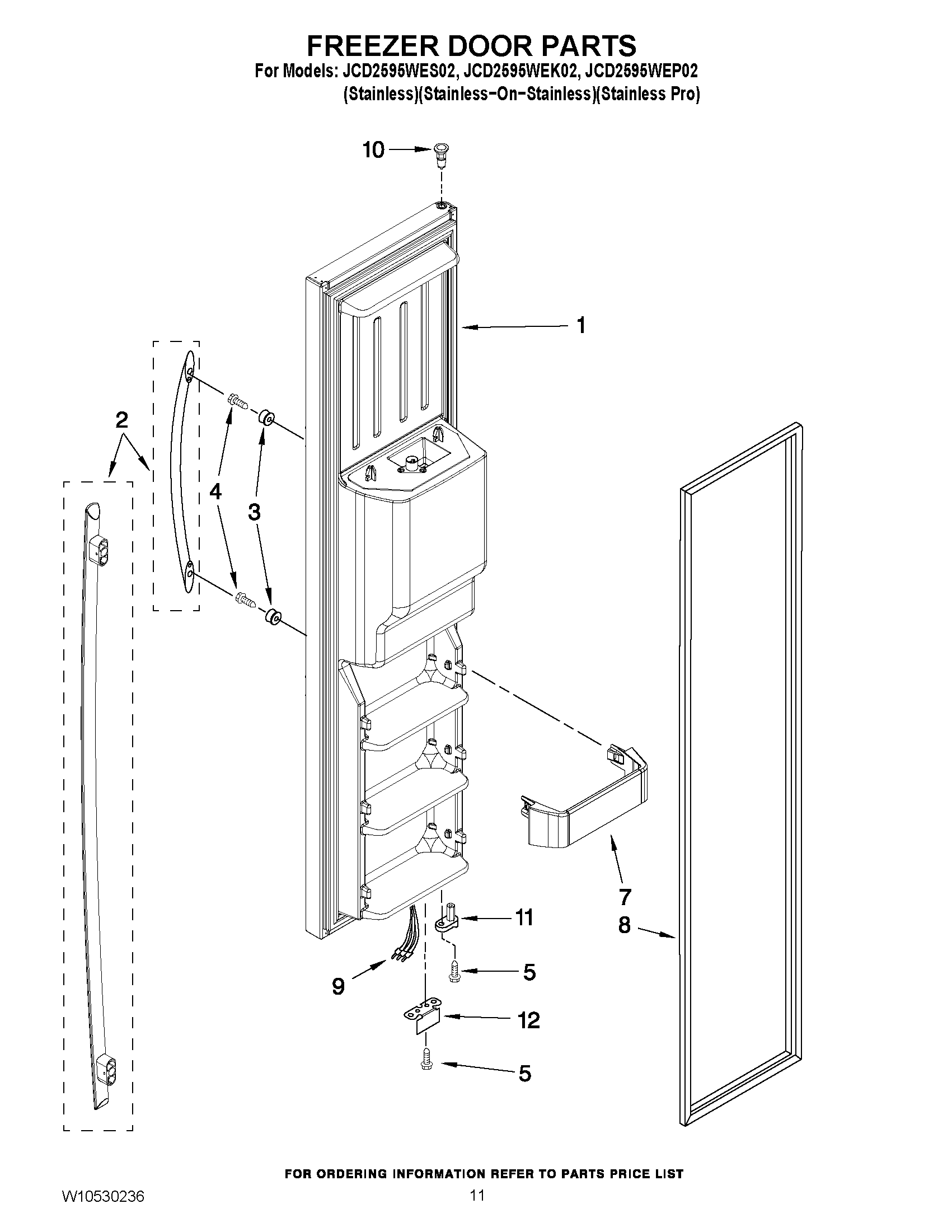

JCD2595WEP02 07 – FREEZER DOOR PARTS
Written by
in
JCD2595WEP02 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY W10318312 |
| 2 | MAY W10214166 |
| 2 | HANDLE, DOOR |
| 3 | Stud |
| 4 | SCREW 8-15 X .813 |
| 5 | SCREW 10-32 X 1/2 |
| 7 | MAY 2223559 |
| 8 | MAY 2326340 |
| 9 | Wire Assy, Door |
| 10 | MAY 2308091 |
| 11 | Thimble Cam, FC |
| 12 | MAY 2306940 |
