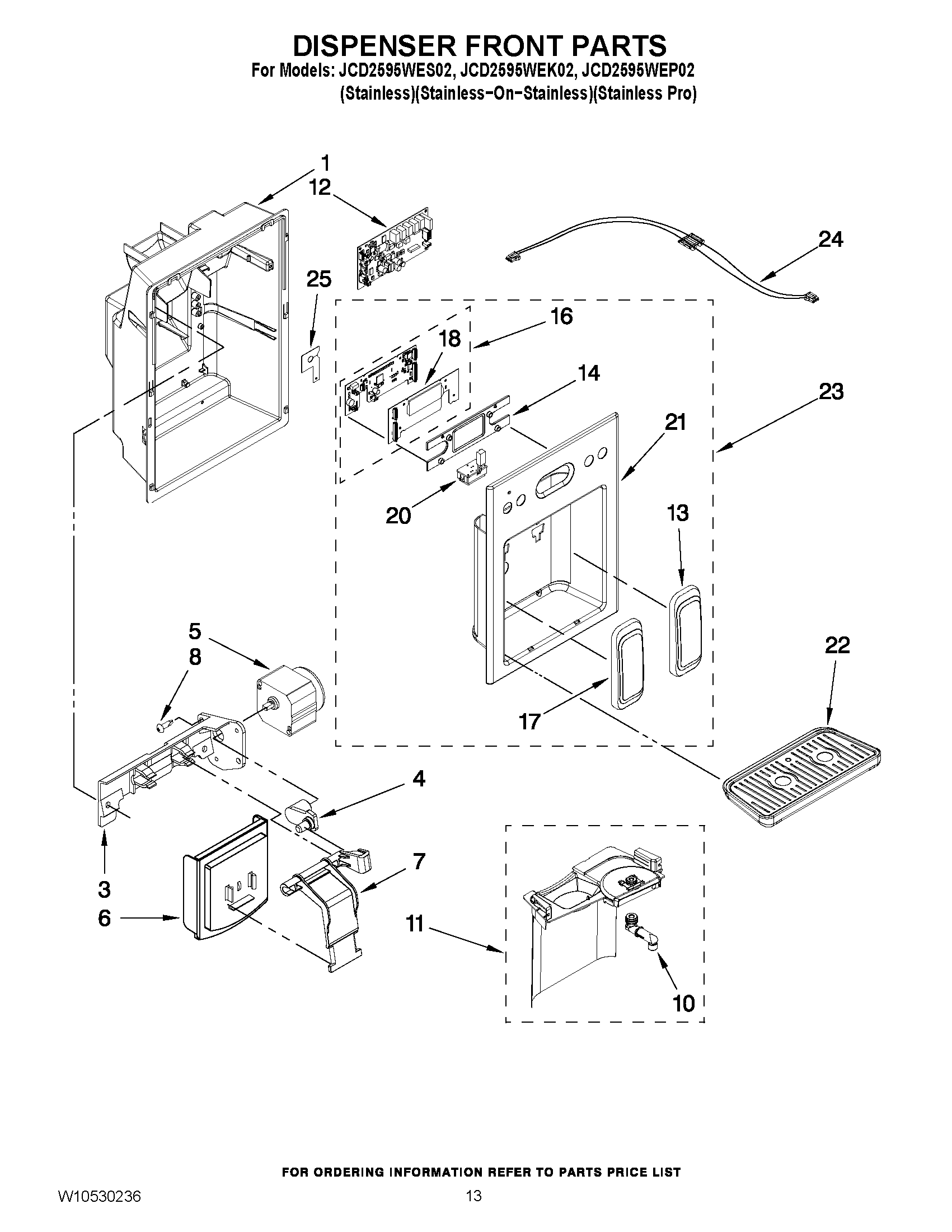

JCD2595WEP02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
3MAY 2305202
4MAY 2305242
5MAY W10184813
6MAY 2305258
7MAY 2305204
8MAY 4449745
10MAY W10187441
11Seperator Assembly
12MAY 2303843
13Pad, Water (Grey)
14MAY W10205009
16UI BOARD ASSY (INCLUDES No.18)
17Pad, Ice (Grey)
18Cover, Control
20MAY W10222215
21FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No.23)
22LINER (NOT A SERVICEABLE PART)
23Front Cover Assy (Nickel One)
24Wire Assembly, User Interface
25MAY 2305447
