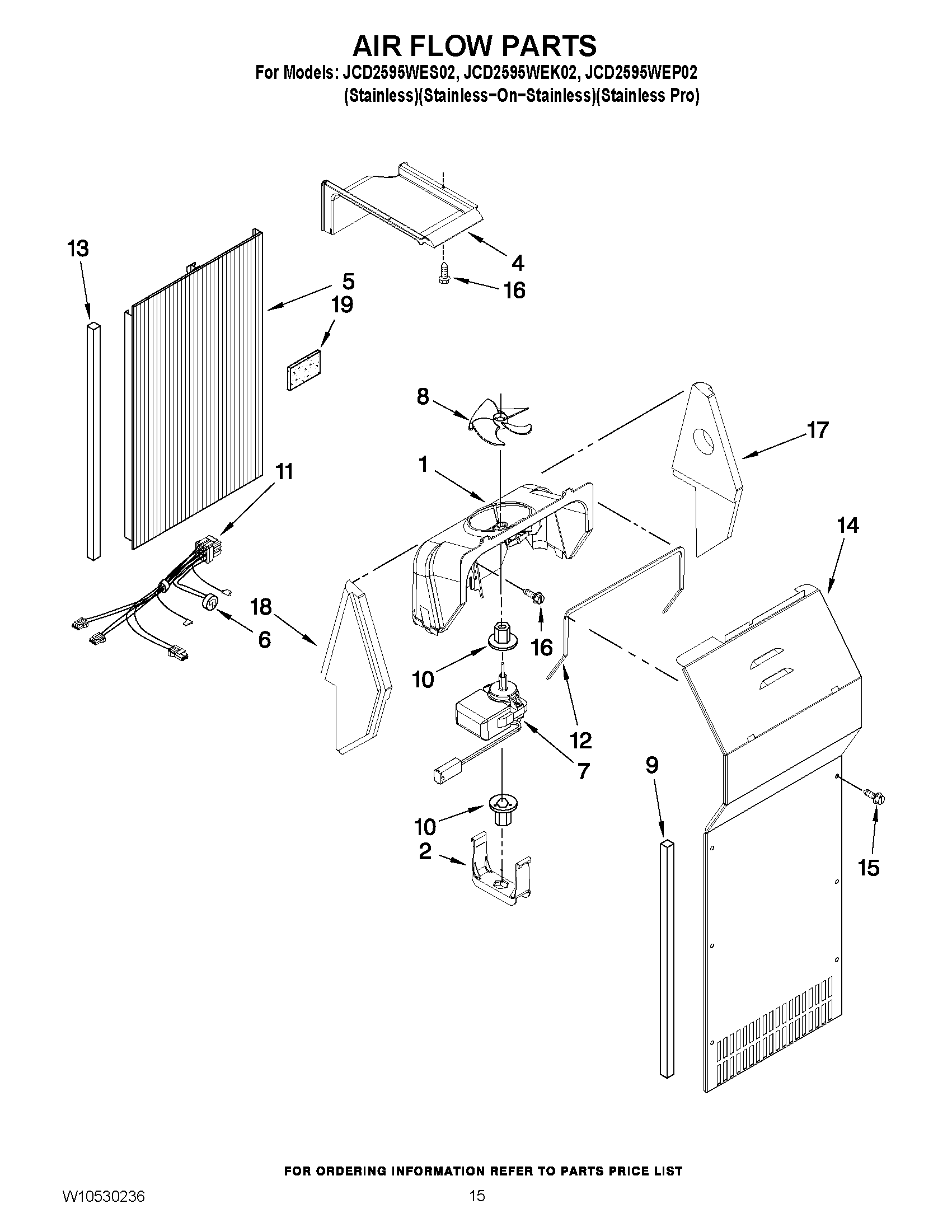

JCD2595WEP02 09 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2223733
4MAY W10256500
5MAY 2223297
6MAY W10225581
7MAY 2259385
8Blade, Fan (Evaporator)
9Gasket
10Grommet
11MAY W10297478
12Gasket, Fan Scroll
13MAY 2203876
14MAY 2223413
15SCREW
16SCREW, 8 X 1/2
17MAY 2223395
18SUPPORT, FAN SCROLL (LEFT HAND)
19INSULATION
