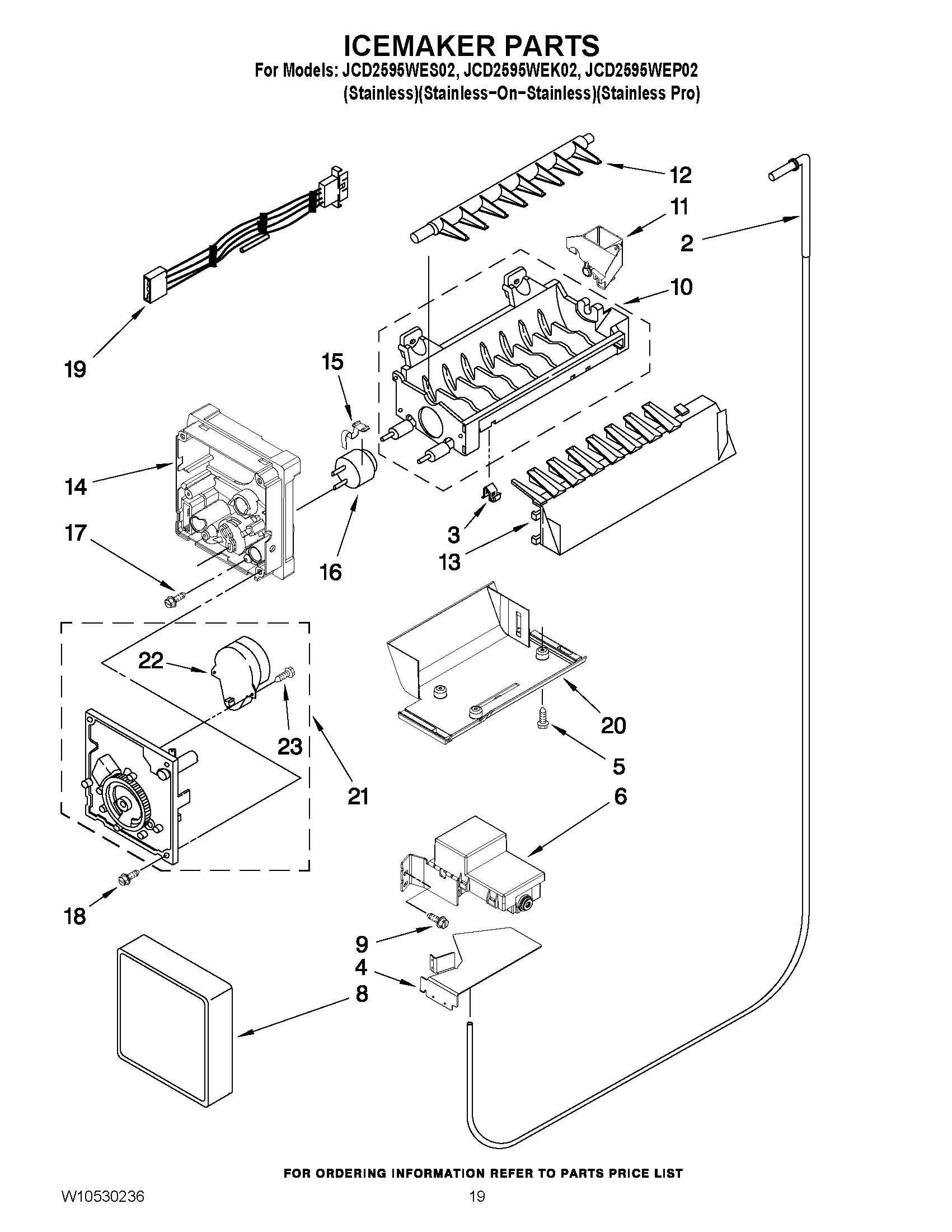

JCD2595WEP02 12 – ICEMAKER PARTS

Products

Position	Product
2	MAY 2303216
3	Clip
4	MAY W10199264
5	SCREW, 8 X 1/2
6	MAY 2319734
8	COVER
9	SCREW 8-32 X 1/2
10	MAY W10122527
11	MAY W10272168
12	MAY 627843
13	STRIPPER, ICE
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	Screw (2)
19	MAY 2187467
20	Bracket, Ice Maker Mounting
21	MODULE ASSEMBLY (INCLUDES ITEMS 22 & 23)
22	LINER (NOT A SERVICEABLE PART)
23	MAY 489276
100	MAY W10272869
