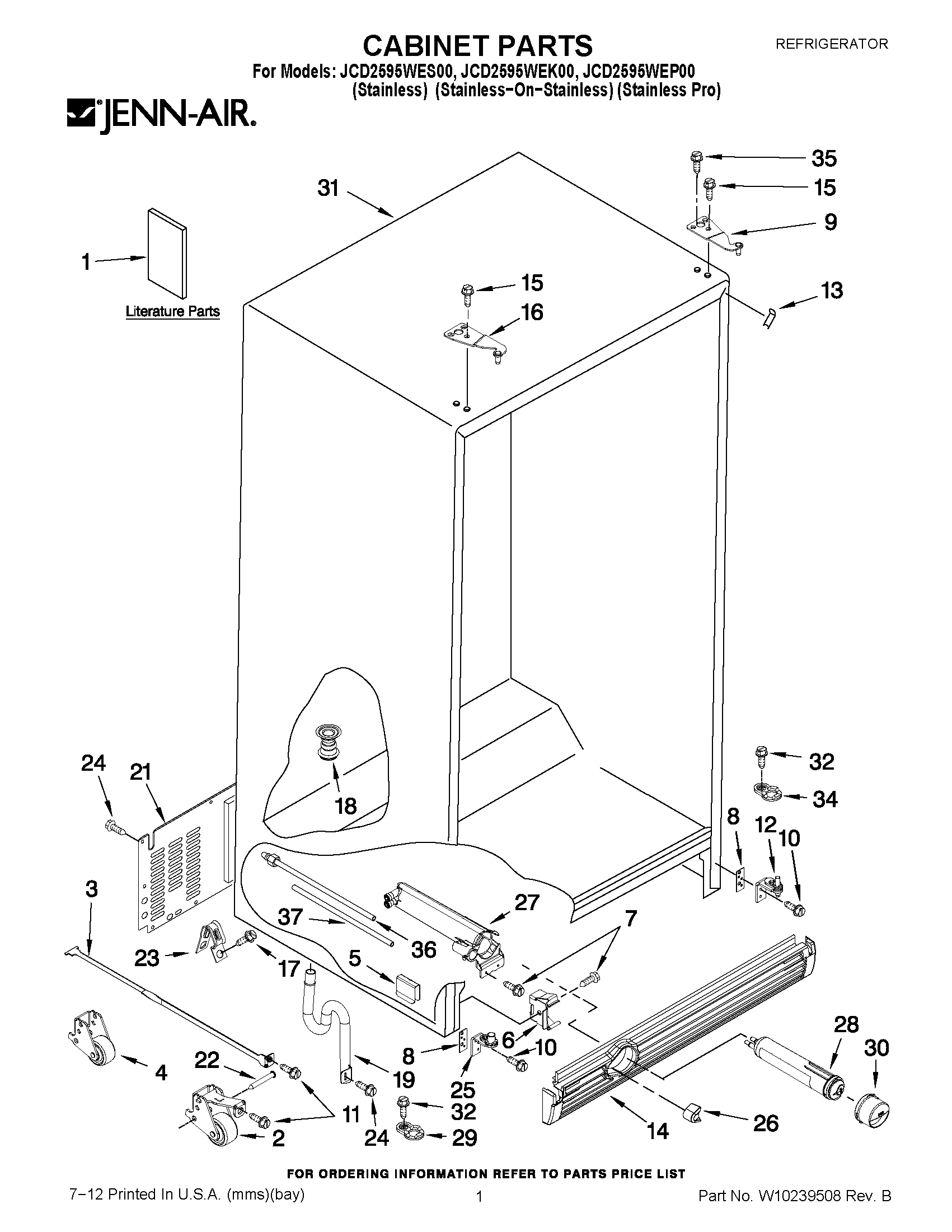

JCD2595WES00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY W10204993
1	MAY W10203274
1	MAY W10152832
1	MAY 2318510
2	MAY 2306951
2	MAY 2306950
3	MAY 2223263
4	MAY 2306949
5	CLIP, AXLE RETAINER
6	MAY 2155013
7	SCREW, 8 X 1/2
8	MAY 2223545
9	MAY 2307008AP
10	Screw (4)
11	MAY 3400243
12	HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34)
13	MAY 2223893AP
14	Grille, Filter (Midnight Grey)
15	MAY 3400108
16	MAY 2307007AP
17	Screw (3)
18	MAY 2304888
19	MAY 2254566
21	MAY 2223409
22	MAY 2223387
23	MAY 549193
24	MAY 489084
25	Hinge Assembly, Bottom-FC (Includes 28 & 31)
26	BUTTON, WATER FILTER (GREY)
27	MAY W10121140
28	MAY 8212650
29	MAY 2307051
30	CAP, WATER FILTER (GREY)
31	LINER (NOT A SERVICEABLE PART)
32	MAY W10142234
34	Door Closer, RC
35	MAY 3400858
36	MAY 2224020
37	MAY 2319867
