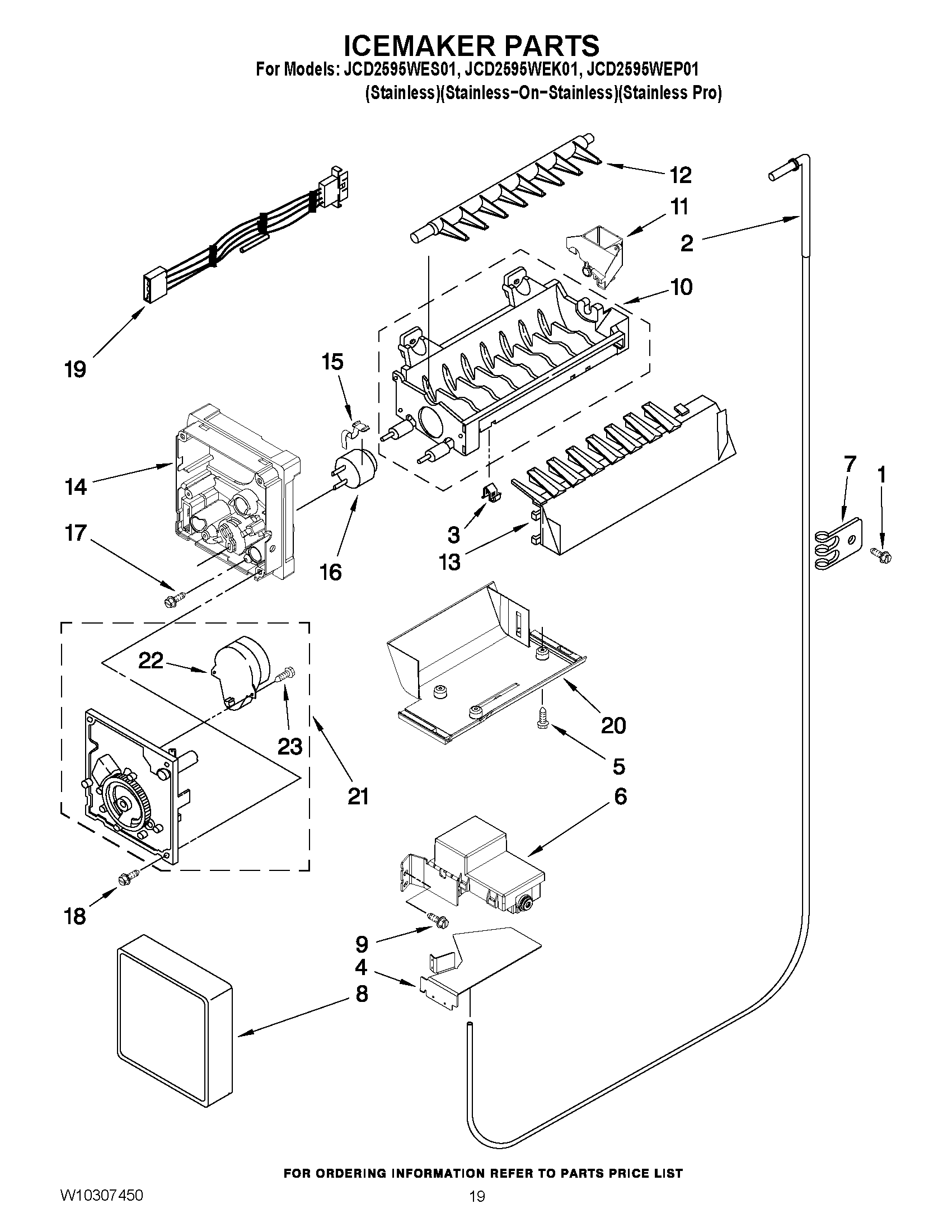

JCD2595WES01 12 – ICEMAKER PARTS

Products

PositionProduct
1MAY 489084
2MAY 2303216
3Clip
4MAY W10199264
5SCREW, 8 X 1/2
6MAY 2319734
7Clip, Tube
8COVER
9SCREW 8-32 X 1/2
10MAY W10122527
11MAY W10272168
12MAY 627843
13STRIPPER, ICE
14MAY 2194712
15MAY 2315522
16Thermostat (Also Order 542369 Cement Alumilastic)
17MAY 8533917
19MAY 2187467
20Bracket, Ice Maker Mounting
21Module Assembly (Includes Items 23 and 24)
22LINER (NOT A SERVICEABLE PART)
23MAY 489276
100MAY W10272869
