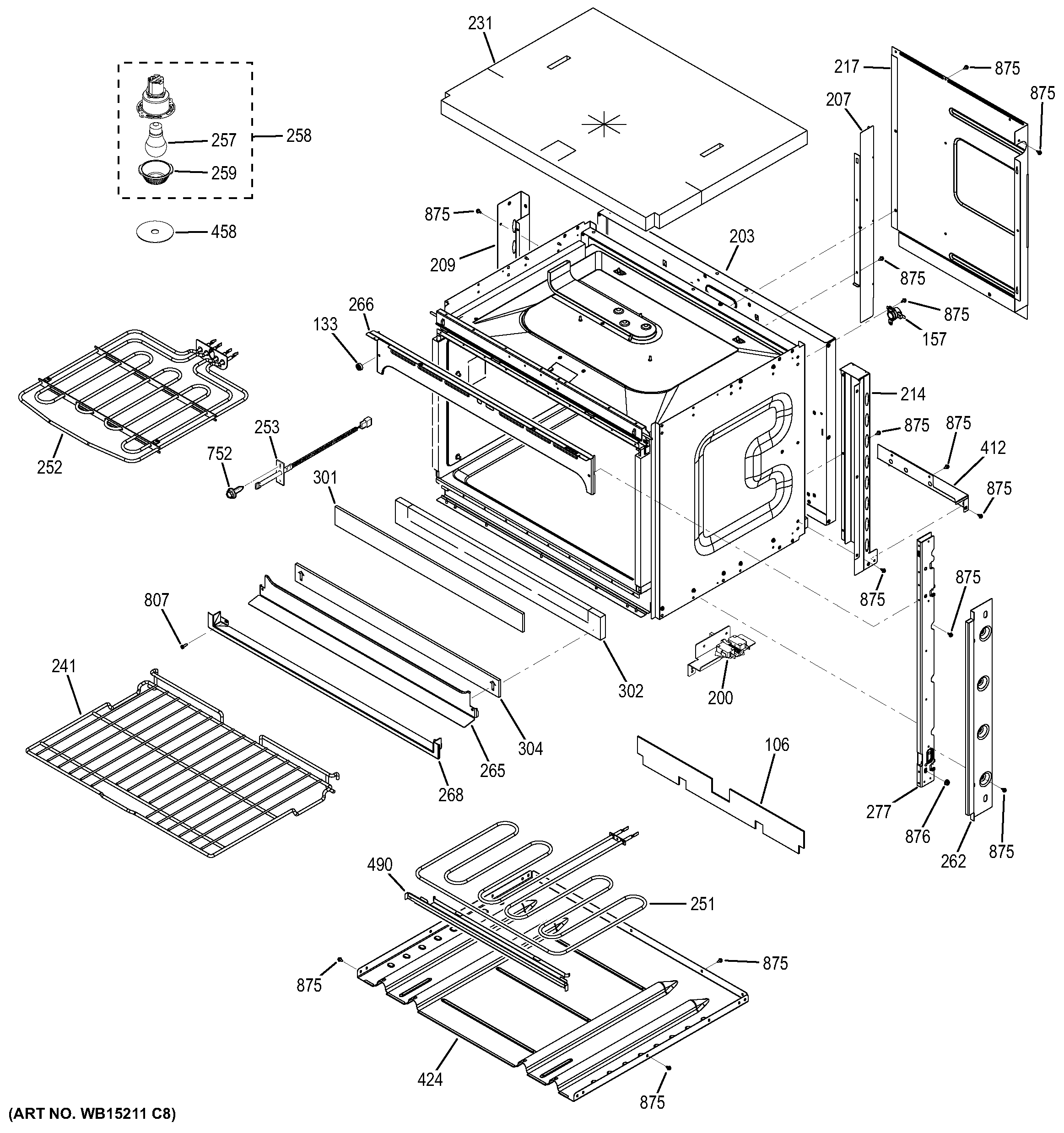

JCK1000DF1BB BODY PARTS

JCK1000DF1BB BODY PARTS

Written by

in

JCK1000DF1BB BODY PARTS

Products

PositionProduct
106GEN WB35T10266
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
200WB24T10179 GE Light Switch
203RETAINER INSLN BACK
207WB34T10134 GE Center Air Divider
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
231GEN WB35T10267
241WB48T10116 GE Oven Rack
251WB44T10125 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
257RANGE ONLY 40W 120V APPL BULB
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
262WB07X11402 GE Oven Vertical Side Trim (Black)
265WB07X21187 GE Oven Lower Vent Trim
266TRIM VENT UPR (BK)
268WB07T10778 GE Oven Bottom Trim Cabinet
277WB07T10751 GE Oven Vertical Left Brace Black
277WB07T10750 GE Oven Right Vertical Brace
301GEN WB35T10268
302GEN WB35T10269
304WB35T10275 GE Bottom Trim Insulation
412WB34T10151 GE Air Duct Lower Right Cover
424WB34T10155 GE Oven Bottom Air Duct Cover
458GEN WB04T10021
490WB55T10195 GE Oven Hidden Bake Cover
752WB1K5200 GE Oven Screw 340531
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
