JCK1000DF1BB CONTROL PANEL

JCK1000DF1BB CONTROL PANEL

Written by

in

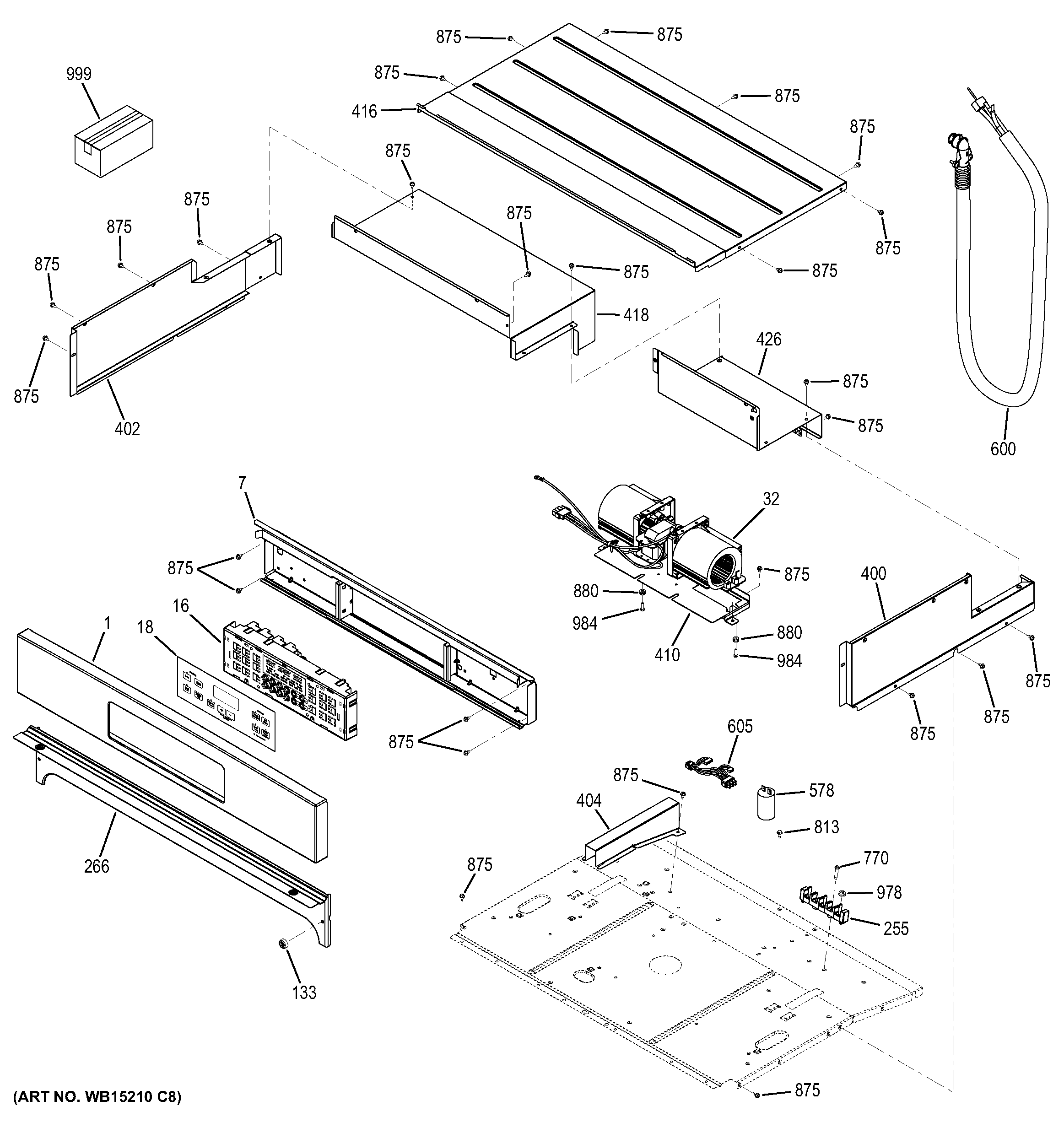

JCK1000DF1BB CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL
1LABEL WIRE DIAGRAM
7GEN WB37T10013
16WB27X23307 GE Oven Control Board T09
18WB27T11458 GE Oven Overlay
32COOLING FAN
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266TRIM VENT UPR (BK)
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416COVER TOP FRONT
418WB34T10154 GE Rear Top Cover
426COVER WIRE REAR
578WB24T10118 GE Oven Limit Switch Bimetal
600CONDUIT WIRE ASM
605WB18T10569 GE Main Wire Harness
770WB1K5072 GE Oven Screw
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999GEN 49-80677
999INSTR INSTALL OVN DOOR
999GEN 31-17017
999GEN 31-10856
