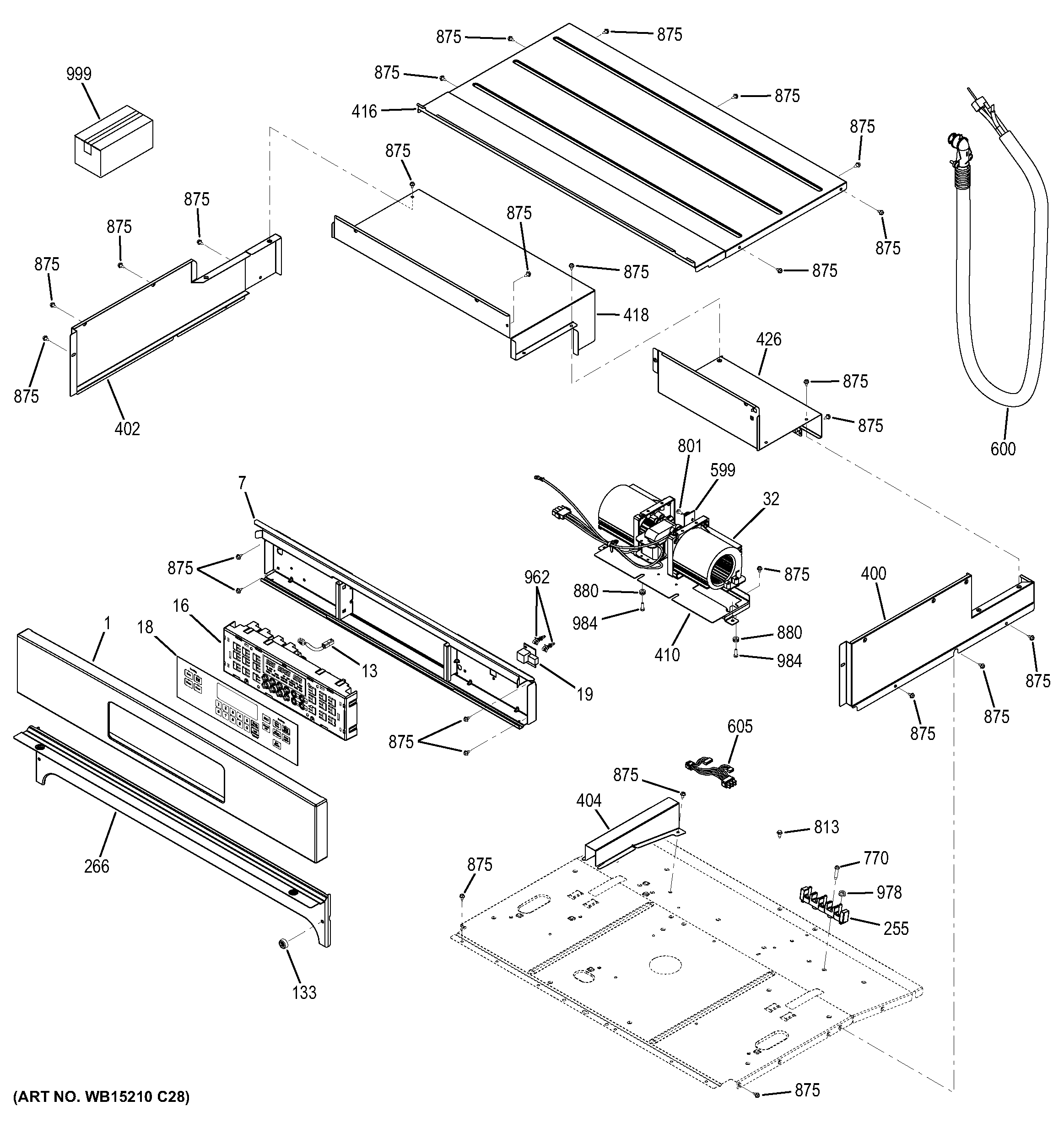

JCK3000DF1BB CONTROL PANEL

Products

Position	Product
1	GEN 229C6153P001
1	WB07T10726 GE Control Panel
7	MOUNTING PANEL – CONTROL
13	WB18X30704 GE Jumper
16	GEN WB27X21583
18	WB27T11460 GE Oven Overlay
19	WB27X20933 GE Oven RJ45 Housing Assembly
32	COOLING FAN
133	WB03T10341 GE Oven Door Bumper
255	WB17K10001 GE Oven Block Terminal
266	WB07T10806 GE Upper Vent Trim
400	COVER TOP RIGHT EDGE
402	WB44T10126 GE Oven Top Left Edge Cover
404	WB34T10150 GE Upper Air Vent Channel
410	WB37T10026 GE Oven Upper Fan Mount Bracket
416	COVER TOP FRONT
418	WB34T10154 GE Rear Top Cover
426	COVER WIRE REAR
599	WB27T11463 GE Oven Fan Sensor Board
600	CONDUIT WIRE ASM
605	WB18T10594 GE Oven Main Wire Harness
770	WB1K5072 GE Oven Screw
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813	WB1X1261 GE Oven Screw
875	WH2X930 GE Screw
880	WB01T10128 GE Grommet
962	WB02T10093 GE Oven Standoff Printed Circuit Board
978	WB1X1259 GE Hex Nut
984	WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999	GEN 31-17018
999	GEN 31-10856
999	INSTR INSTALL OVN DOOR
999	GEN 49-80656
