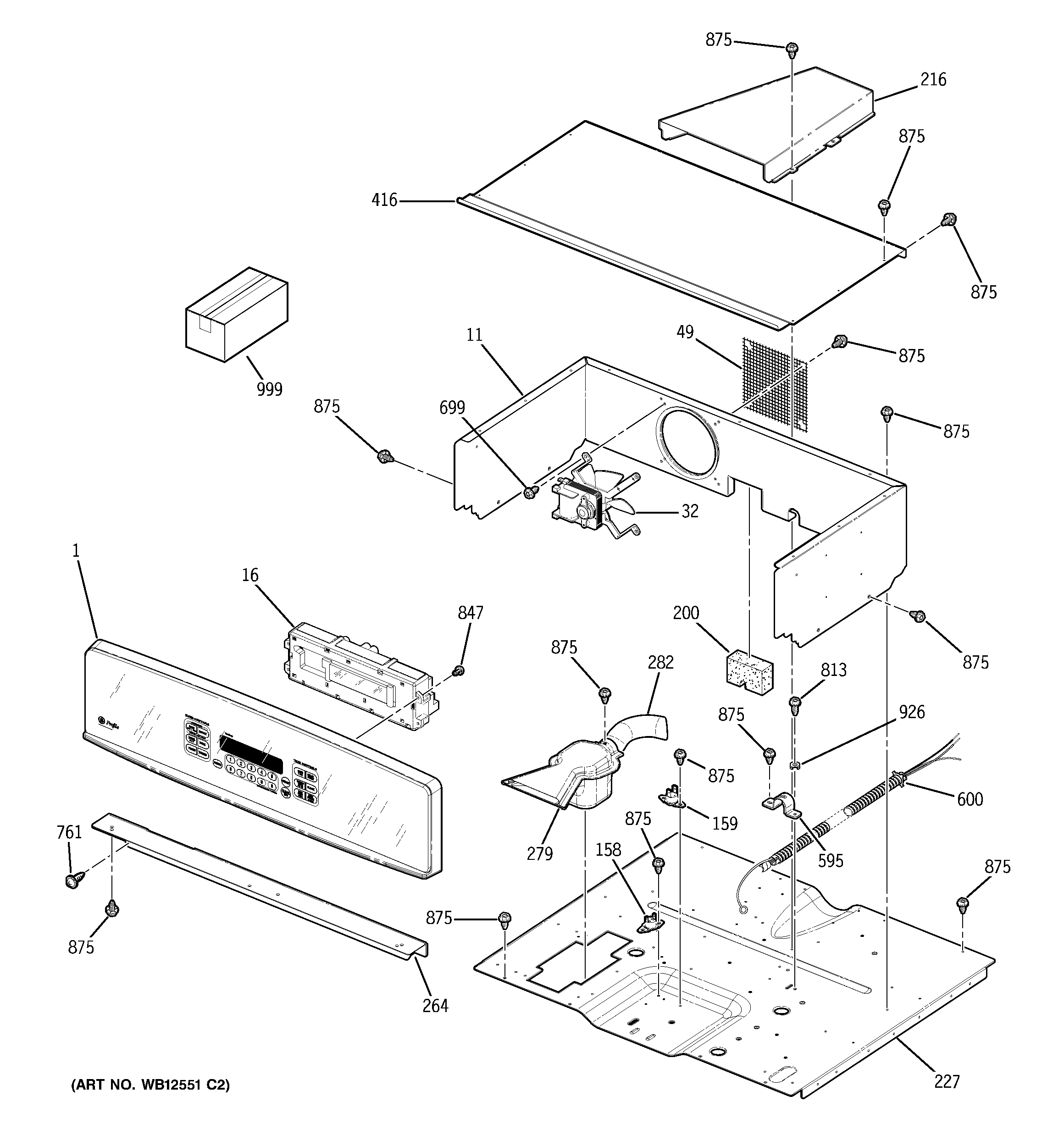

JCK915WF6WW CONTROL PANEL & COOKTOP

JCK915WF6WW CONTROL PANEL & COOKTOP

Written by

in

JCK915WF6WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10977
11GEN WB02T10158
16WB27T10606 GE Oven Control ERC
32WB26K5061 GE Oven Upper Fan Assembly
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10168
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10307
279WB38T10019 GE Oven Vent Box Assembly
282DUCT VNT INLET-UPR
282WB38X33650 GE Vent Tube
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-10521
999GEN 31-10619
999GEN 31-10653
999GEN 29-5511
999GEN 31-14510
999GEN WB18T10370
