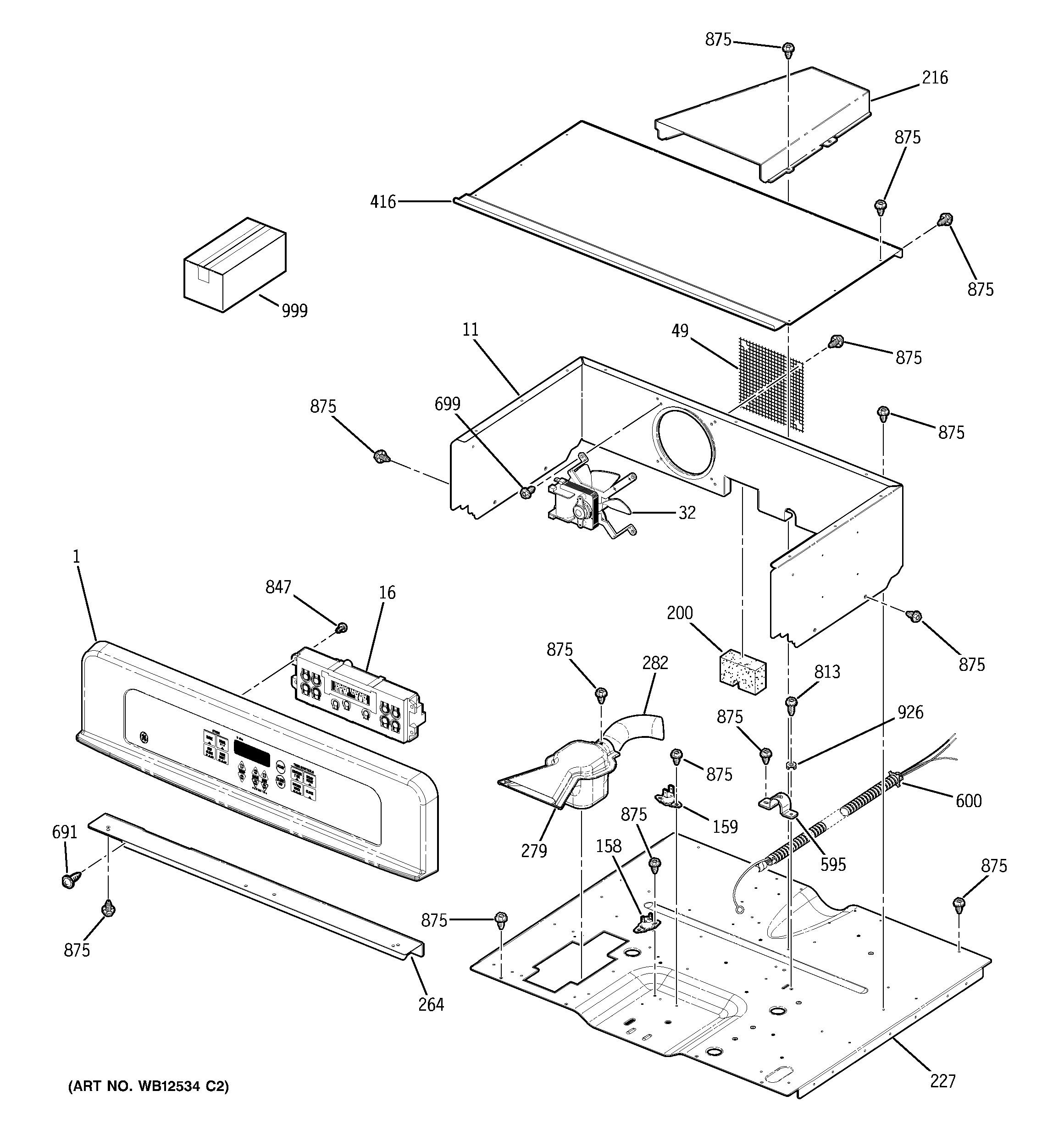

JCKP20WF2WW CONTROL PANEL

JCKP20WF2WW CONTROL PANEL

Written by

in

JCKP20WF2WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T10608
11GEN WB02T10158
16WB27T10409 GE Oven Control (ERC3B)
32WB26T10018 GE Oven Fan Motor
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10168
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10307
279WB38T10019 GE Oven Vent Box Assembly
282DUCT VNT INLET-UPR
282WB38X33650 GE Vent Tube
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
691GEN WB01K5163
699WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-10521
999GEN 31-14006
999GEN 31-10551
999GEN 31-10514
999GEN 29-5029
