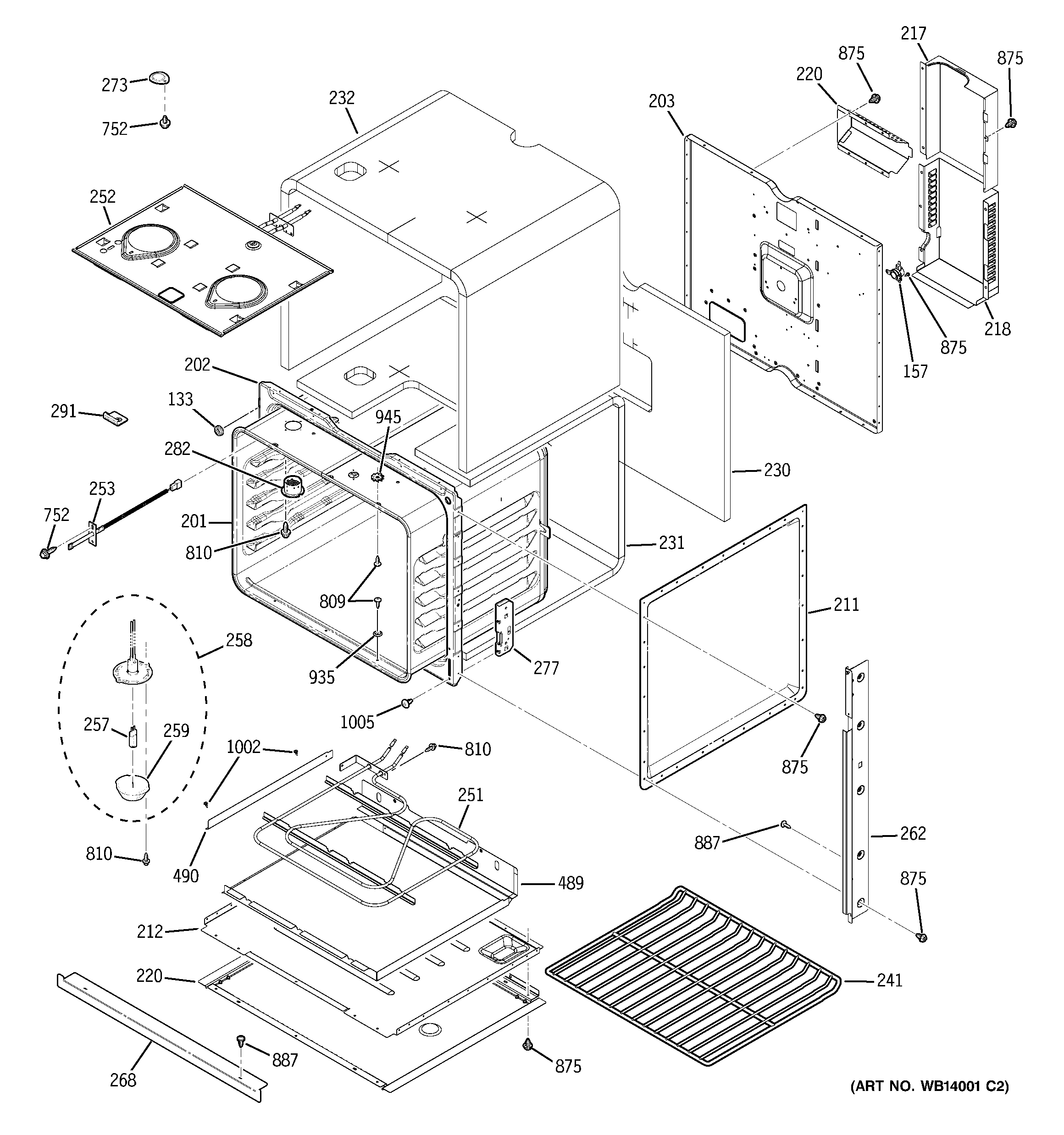

JCKP30DP1WW BODY PARTS

JCKP30DP1WW BODY PARTS

Written by

in

JCKP30DP1WW BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
157WB24T10081 GE Oven High Limit Thermostat
201WRAPPER OVN CAV ASM UPR
202WB63T10123 GE Front Frame
203GEN WB63T10124
211WB63T10125 GE Side Insulation Retainer
212WB63T10082 GE Bottom Insulation Retainer
217WB02T10357 GE Upper Right Wire Cover
218GEN WB02T10364
220GEN WB02T10360
230GEN WB35T10176
231WB35T10174 GE Insulation Top and Bottom
232WB35T10175 GE Insulation Top and Sides
241WB48T10045 GE Oven Rack
251WB44T10109 GE Oven Element Bake Assembly (2100W)
252WB44T10099 GE Oven Broil Element Assembly
253WB21X22134 GE Oven Sensor Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB08T10006
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
262WB07T10543 GE Trim Vertical Side Assembly 27 Light
262WB07T10542 GE Oven Trim Vertical Side Assembly 27 RT
262GEN WB07T10549
262GEN WB07T10548
268WB07T10541 GE Oven Bottom Trim Assembly 27 (BK)
268GEN WB07T10547
273GEN WB02K5365
277GEN WB10T10076
282WB28T10212 GE Inlet Duct Vent
282WB28T10213 GE Vent Tube Assembly
291GEN WB02X9152
489GEN WB49T10016
490GEN WB49T10017
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
