JCKP30DP3WW DOOR

JCKP30DP3WW DOOR

Written by

in

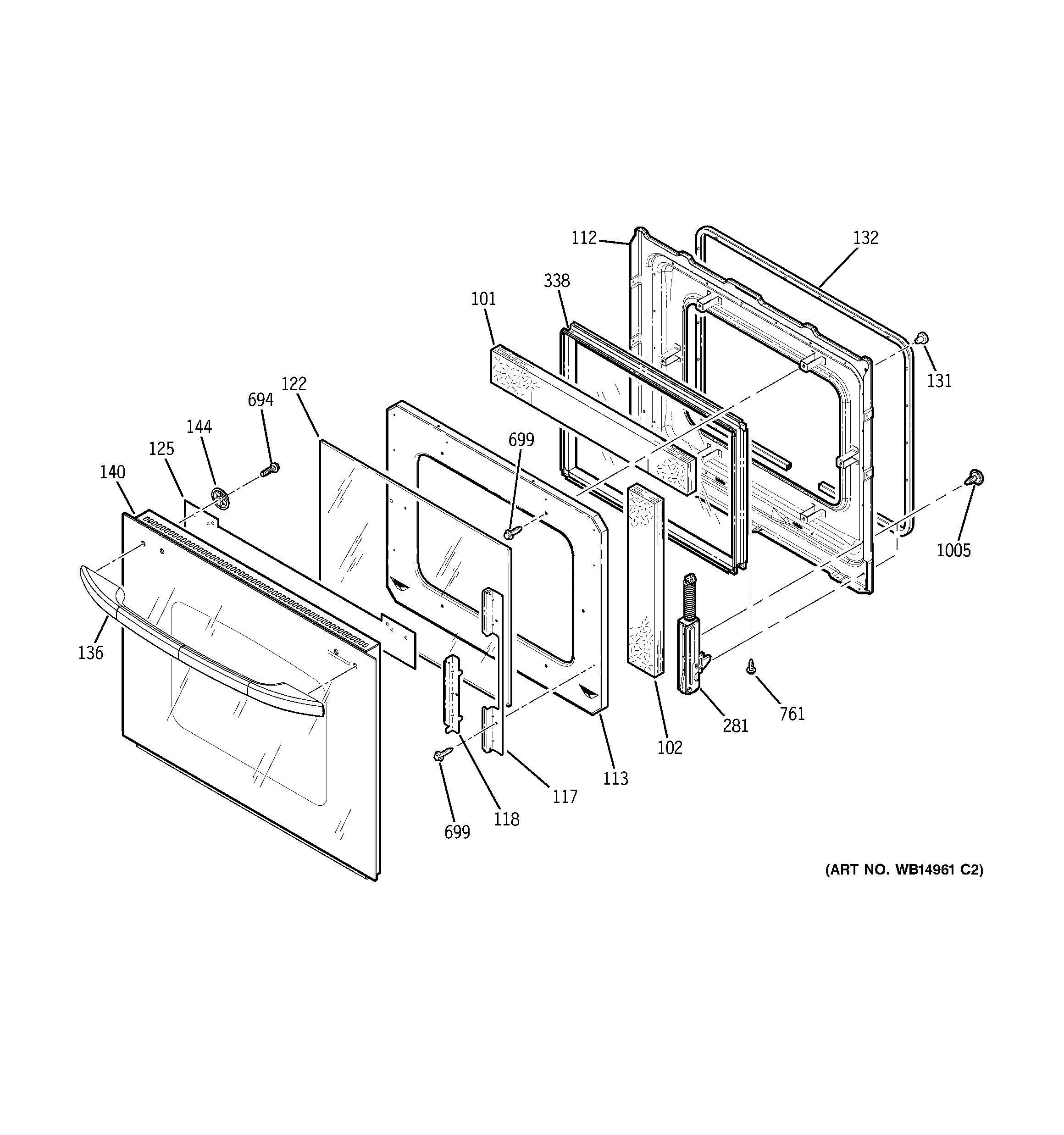

JCKP30DP3WW DOOR

Products

PositionProduct
101GEN WB35T10062
102WB35T10061 GE Oven Door Insulation Side
112WB55T10168 GE Oven Door Liner Assembly
113WB56T10133 GE Oven Insulation Retainer
117WB56T10320 GE Oven Glass Door Retainer
118WB56T10321 GE Oven Door Glass Retainer
122GEN WB57T10185
125GEN WB34T10097
131WB01T10052 GE Oven Foam Tape
132WB32T10012 GE Oven Door Gasket
136GEN WB15T10181
136GEN WB15T10180
140GEN WB57T10332
140GEN WB57T10334
144WB02T10524 GE Oven Door Handle Spacer
281GEN WB10T10113
281GEN WB10T10112
338WB55T10086 GE Oven Window Assembly
694WB1K5157 GE Oven Black Screw
694WB01T10066 GE Oven Screw 10-16 XC02
699WB1M1 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
1005WB01T10008 GE Oven Screw 10-32
