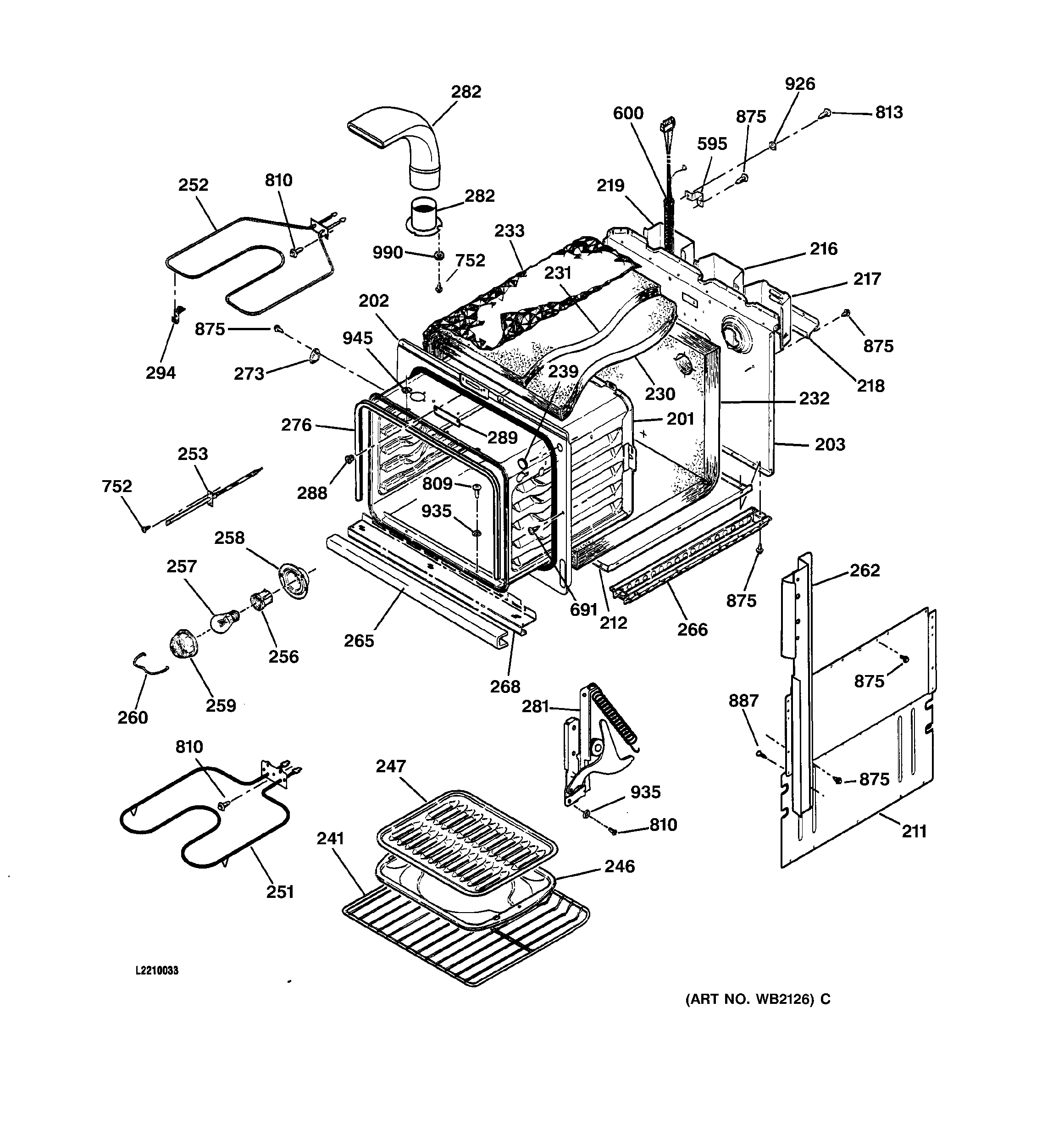

JCKS05BA1BB BODY PARTS

JCKS05BA1BB BODY PARTS

Written by

in

JCKS05BA1BB BODY PARTS

Products

PositionProduct
201GEN WB63T10009
202GEN WB63T10036
203WB63K5167 GE Back Main
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5041 GE Inner Wrap Insulation
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
233GEN WB34K5080
239PLUG ROUND
241WB48T10093 GE Oven Range Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262GEN WB07T10056
262GEN WB07T10055
265GEN WB07T10060
266WB63K5079 GE Rail Base
268GEN WB07T10059
273GEN WB02K5365
276GEN WB32K5019
281GEN WB10T10001
282GEN WB28K5010
282GEN WB28T10005
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
294WB2X9719 GE Oven Support Bracket Clip
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
990GEN WB01X1432
