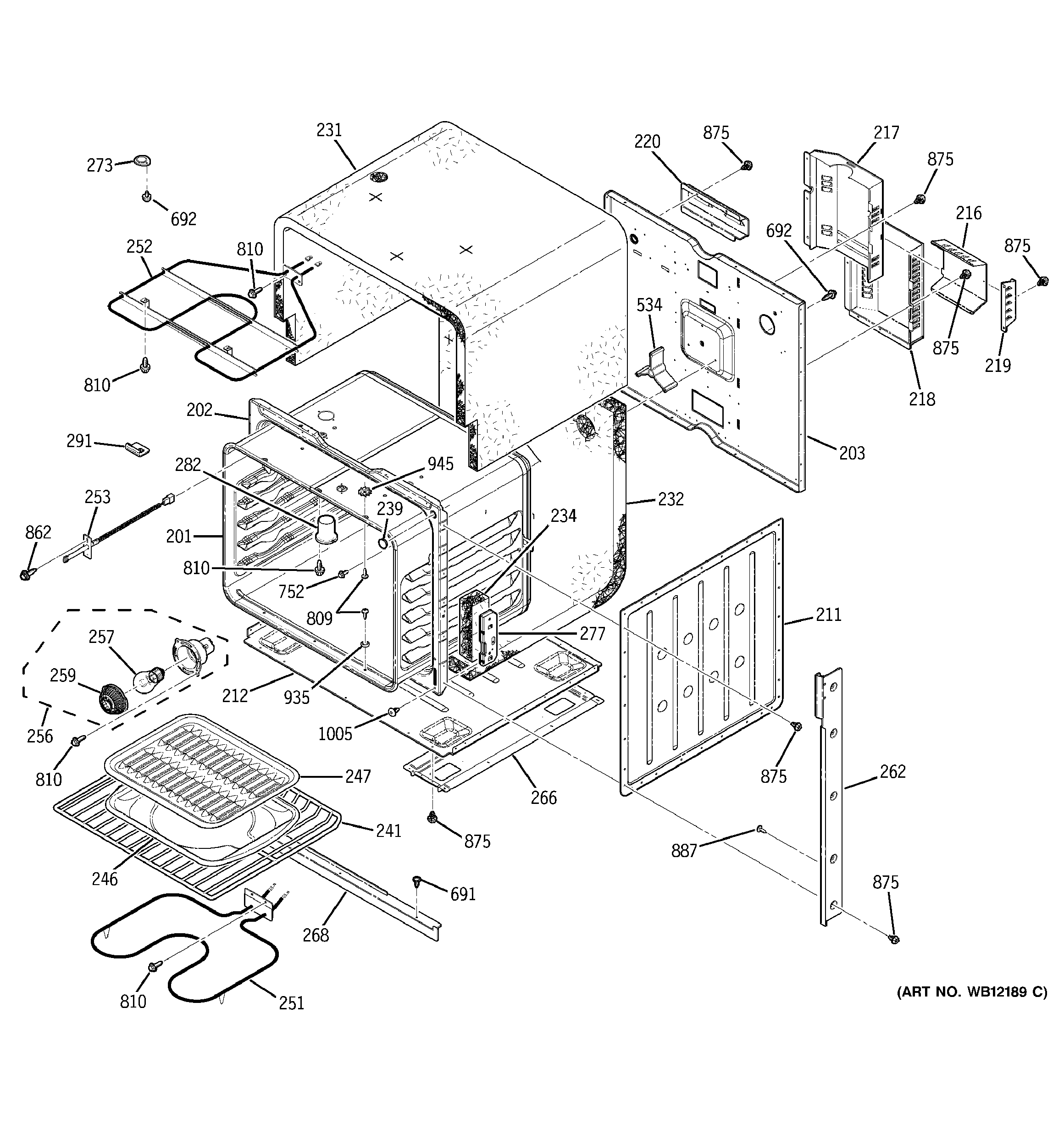

JCKS05BD1BB BODY PARTS

JCKS05BD1BB BODY PARTS

Written by

in

JCKS05BD1BB BODY PARTS

Products

PositionProduct
201GEN WB63T10075
202GEN WB63T10072
203GEN WB63T10081
211GEN WB63T10074
212WB63T10082 GE Bottom Insulation Retainer
216GEN WB34K5216
216GEN WB34T10044
217GEN WB34T10039
218GEN WB34T10040
219GEN WB34T10042
219GEN WB34T10041
220GEN WB34T10038
231GEN WB35T10064
232GEN WB35T10063
234GEN WB10T10016
239PLUG ROUND
241WB48T10027 GE Oven Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT LWR
252WB44T10051 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262TRIM VERT SDE ASM RT BLK
262TRIM VERT SDE ASM LT BLK
266WB02K10048 GE Base Rail
268GEN WB07T10188
273GEN WB02K5365
277GEN WB10T10015
282GEN WB28T10056
291GEN WB02X9152
534GEN WB26K5050
691WB1K5162 GE Oven Black Screw
692SCREW
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
