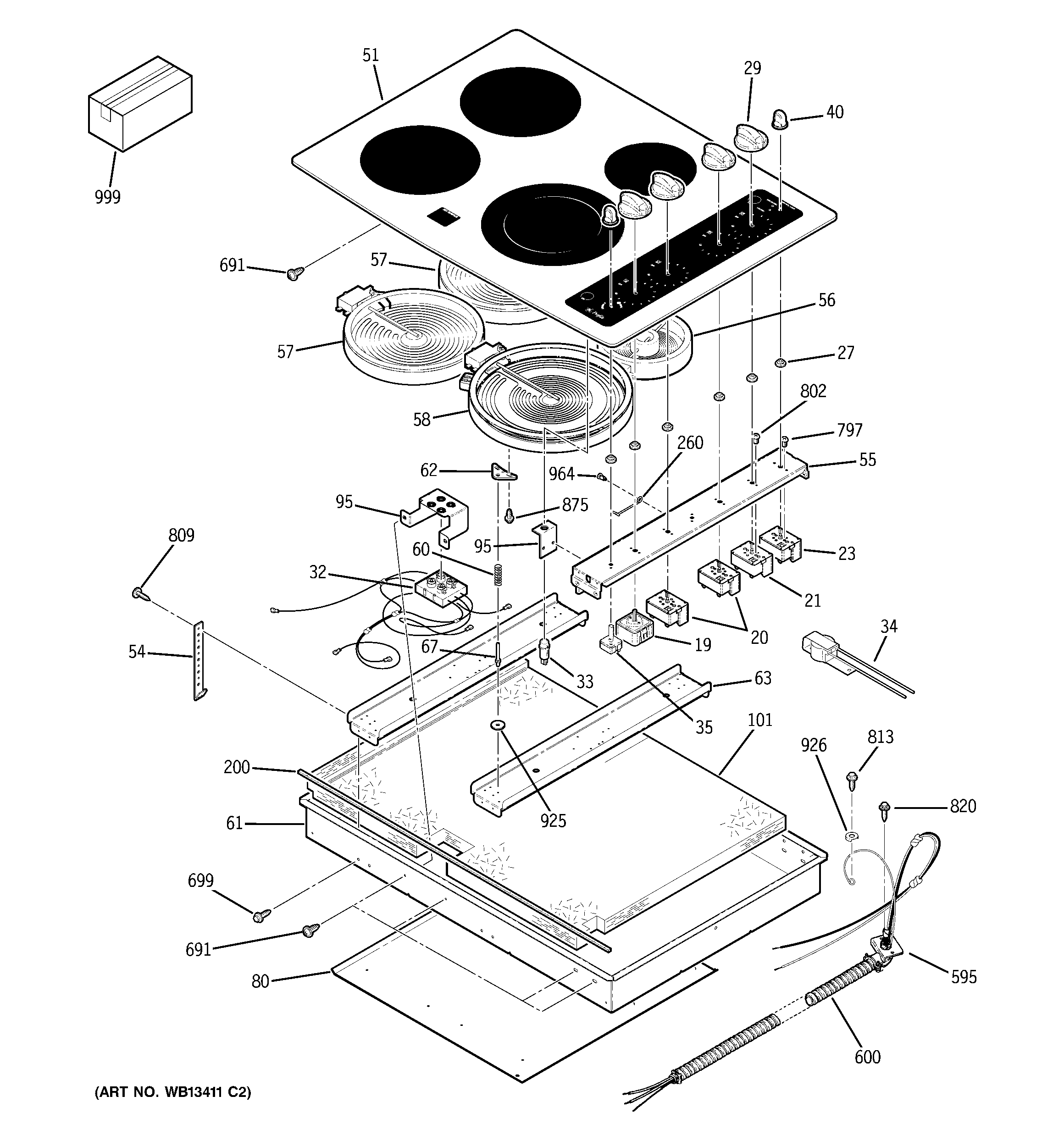

JCP910BK3BB CONTROL PANEL & COOKTOP

Products

Position	Product
19	SWITCH INFINITE CONTROL
20	WB23M9 GE Oven Control Element
21	WB23M8 GE Oven Control Element
23	GEN WB24T10113
27	INFINITE CONTROL SEAL
29	WB03T10025 GE Oven Black Burner Knob
32	GEN WB25T10046
33	WB25T10012 GE Oven Indicator Light
33	GEN WB25T10058
34	WB08T10038 GE Oven Buzzer 240V
35	WB24X449 GE Oven Selector Switch
40	WB03T10035 GE Oven Black Selector Knob
51	GEN WB62T10393
54	WB2K5328 GE Oven Hold Down Bracket
55	GEN WB02T10087
56	WB30T10043 GE Oven 6" 1200W Halogen Element
57	WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
58	WB30T10099 GE Oven Radiant Surface Element
60	WB09T10005 GE Oven Spring Radiant
61	GEN WB64T10041
62	WB2K5318 GE Oven Radiant Heater Bracket
63	SUPT ELEMENT BRACKET
67	WB2X9502 GE Oven Stud
80	SHEILD BURN BOX BTM
95	GEN WB02T10088
95	BRACKET HOT LIGHT
101	GEN WB35T10044
200	WB06T10007 GE Oven Cooktop Tape
200	WB02X26088 GE Oven Foam Tape
260	WB1X1347
595	WB2X9867 GE Oven Condenser Plate
600	GEN WB18T10375
691	WB1K5162 GE Oven Black Screw
699	WB1M1 GE Oven Screw
797	WB1K5119 GE Oven Screw
802	GEN WB01K5123
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
875	WH2X930 GE Screw
925	WB1K5117 GE Oven Washer
926	GROUND WASHER
964	WB02T10086 GE Retainer Wire
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 29-5536
999	GEN 31-10639
999	GEN 31-14480
