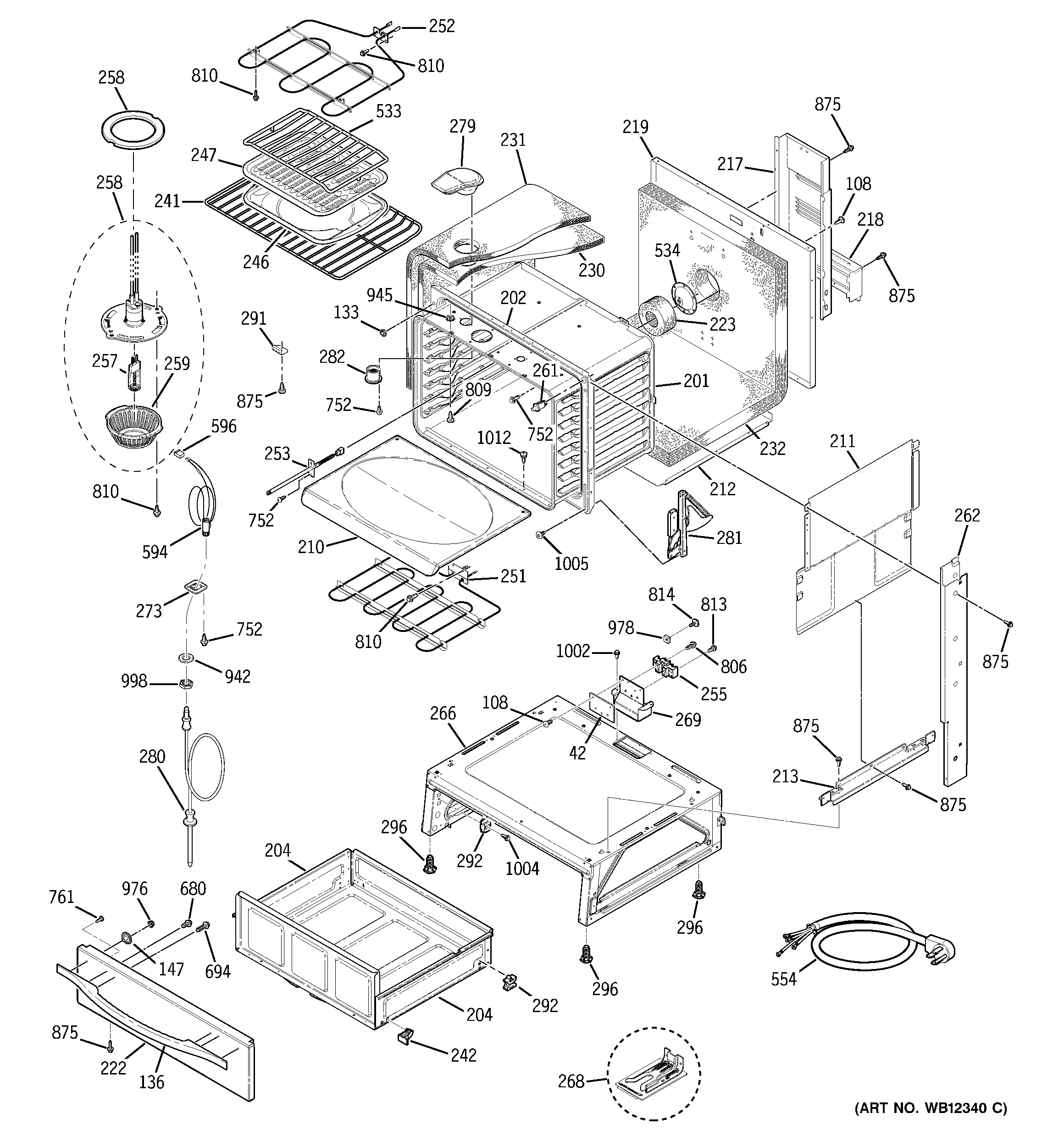

JCS966SD1SS BODY PARTS

JCS966SD1SS BODY PARTS

Written by

in

JCS966SD1SS BODY PARTS

Products

PositionProduct
42GEN WB17T10004
108WB1X5364 GE Oven Mounting Screw
133WB01T10055 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
136GEN WB15K10024
136GEN WB15K5108
147GEN WB57T10190
147GEN WB02K5312
201OVEN BODY UPPER
202GEN WB63T10064
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02K10049
213GEN WB02K10050
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219GEN WB56X10189
222GEN WB56T10074
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241RACK OVEN
242WB48T10068 GE Oven Wedge Drawer
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255GEN WB17T10003
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB04T10021
258GEN WB25T10026
259WB25T10027 GE Oven Lens Lamp
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K10145
262GEN WB07K10146
266BASE RIVET ASSY
268GEN WB02T10137
269TERMINAL BOX
273PROBE COVER
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10010
281GEN WB14T10009
282GEN WB28T10070
291GEN WB02X9152
292WB48T10013 GE Oven Drawer Support
292WB02X33180 GE Oven Drawer Glide
296GEN WB01M0018
296WB02X10521 GE Oven Leveling Leg
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
554GEN WB08X5034
594GEN WB08T10014
596GEN WB08K5013
680WR1X1850 GE Refrigerator Screw
694WB1K5157 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
814SCR 10-32 IND HXW .437
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
976GEN WB01K5199
978GEN WB01X5968
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
