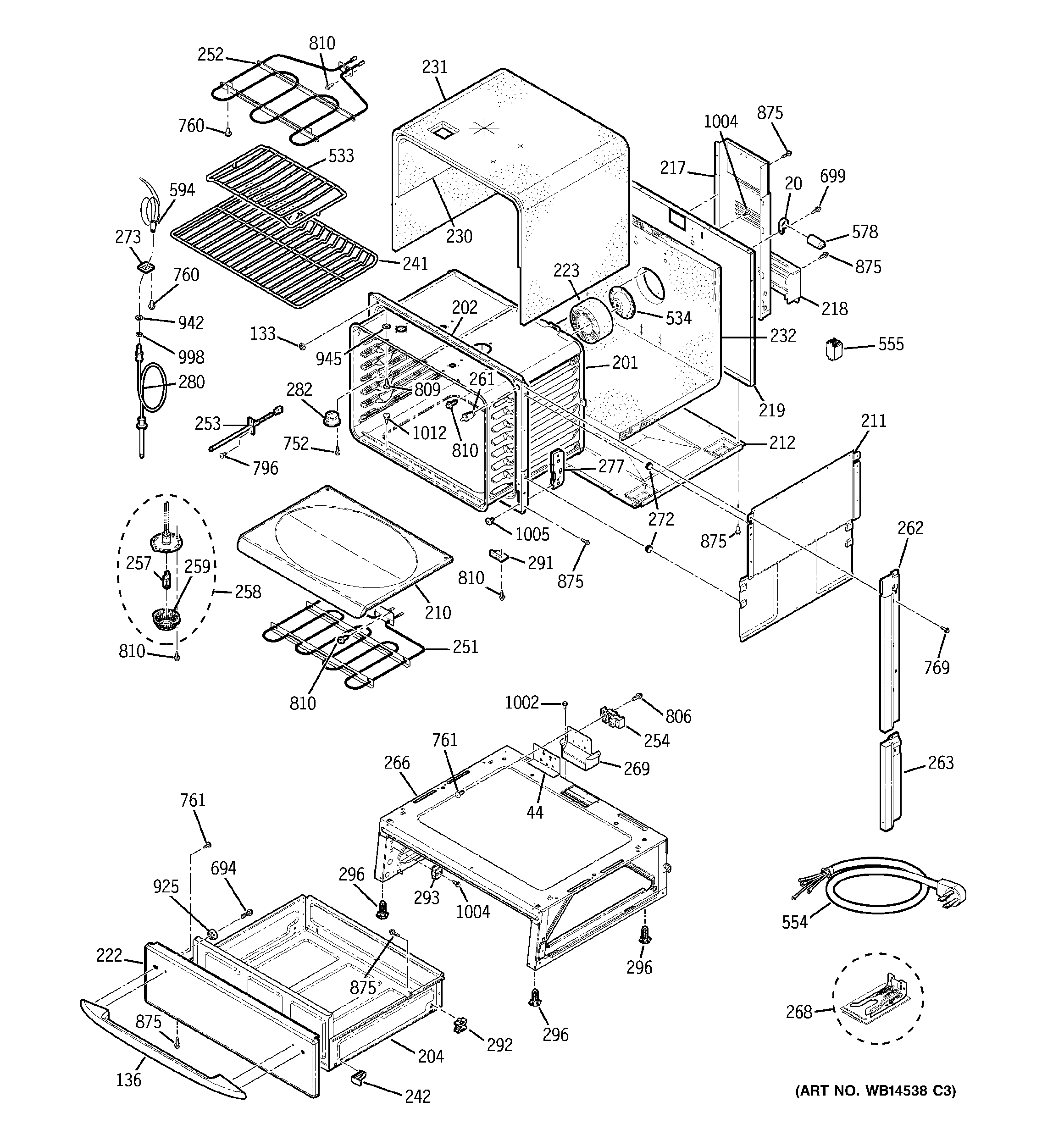

JCS968SK5SS BODY PARTS

JCS968SK5SS BODY PARTS

Written by

in

JCS968SK5SS BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
20GEN WB02K5238
20GEN WB02T10068
20WB02T10046 GE Oven Crystal Retainer
44WB02T10242 GE Bracket
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
136WB15T10190 GE Oven Handle Assembly 30 (PRF-SS)
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
210WB63T10034 GE Oven Bottom
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222GEN WB56T10176
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB28T10049
242WB48T10068 GE Oven Wedge Drawer
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
254WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10026
259WB25T10027 GE Oven Lens Lamp
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10520 GE Right Side Trim (Black)
263TRIM VERT SIDE RT (BK)
263WB07T10632 GE Vertical Left Side Trim
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10137
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
273GEN WB02K5365
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB28T10075 GE Oven Vent Inlet Duct
282WB38X33650 GE Vent Tube
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
555WB18T10352 GE Oven Relay
578GEN WB27T10503
594RECEPTACLE JACK
694WB1X1424D GE Oven Screw Package
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
769WB1X500D GE Oven Screw Package
796GEN WB01X1178
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
925WB1K5117 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
