JCSP28GP1 1

JCSP28GP1 1

Written by

in

JCSP28GP1 1

Products

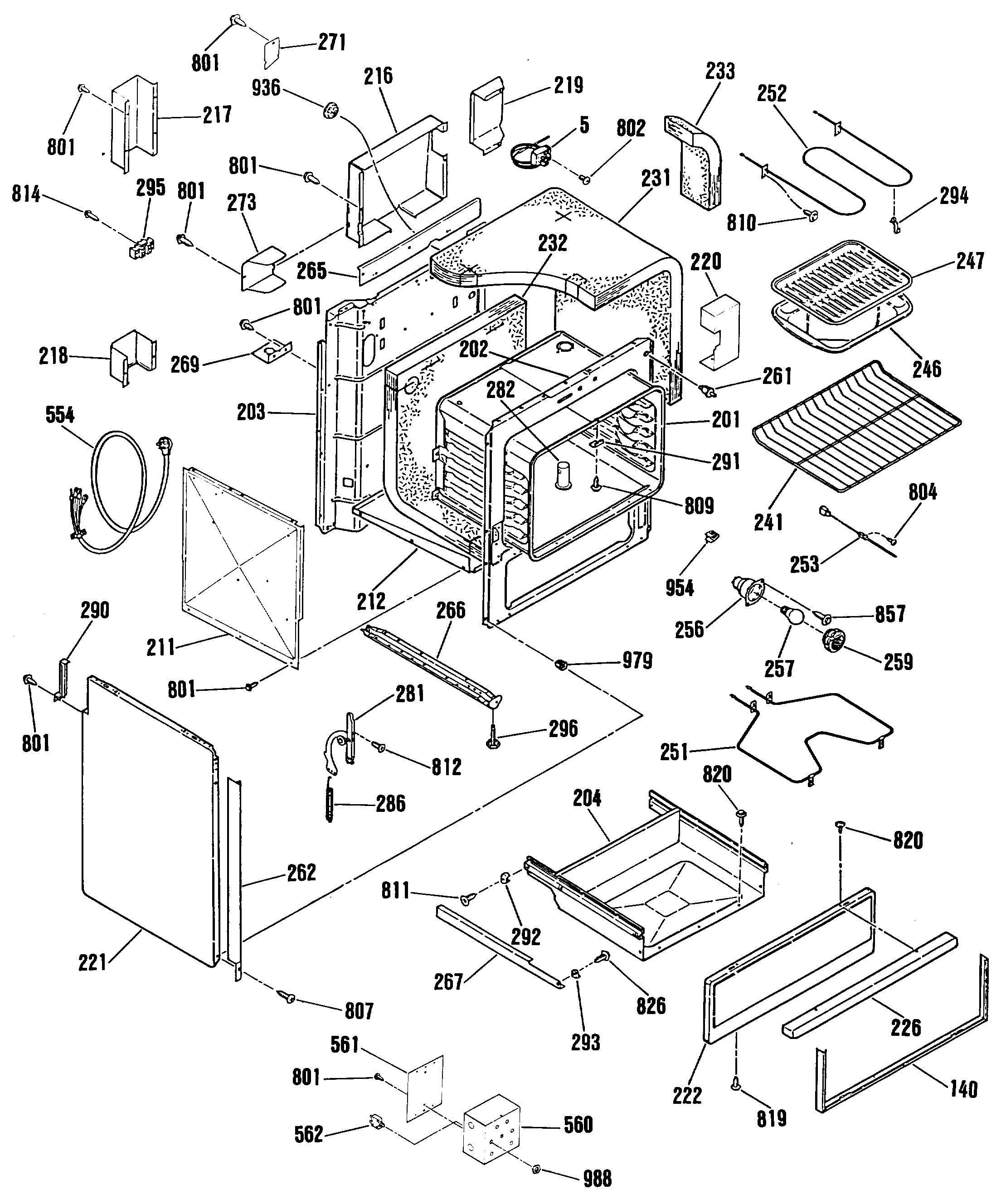

PositionProduct
5GEN WB20K5021
140GEN WB56M0006
140UNKNOWN
201GEN WB63K5109
202GEN WB63M0057
203GEN WB63K5126
204GEN WB58X0063
211GEN WB02M0004
212GEN WB02K5093
216GEN WB34M0044
217WIRE SHIELD-UPPER
218GEN WB02X9426
219GEN WB34M0006
220GEN WB34K5139
221GEN WB63M0024
221GEN WB63M0058
222GEN WB56K5032
226LOWER FRONT PANEL HANDLE
231GEN WB35M0022
232INSULATION BACK & BOTTOM
233INSULATION-TOP SIDES
241GEN WB48X0208
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256GEN WB08M0003
257GEN BUY-LOCAL
259OVEN LAMP LENS
261WB24T10147 GE Oven SPDT Light Switch
262UNKNOWN
262UNKNOWN
265UNKNOWN
266BASE ASM W/LEVERS
267GEN WB56M0003
269SERVICE RANGE MTG PLATE
271FLUE PLATE COVER
273GEN WB34M0027
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
281WB14X103 GE Range Oven Left Door Hinge
282GEN WB38K5017
286OV DR SPRING
290GEN WB63M0021
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
295WB17X5095 GE Black Oven Terminal
554GEN WB08X5034
560GEN WB34K5118
561GEN WB34M0009
562GEN WB20K5023
562GEN WB20K5022
801WB1M1 GE Oven Screw
802GEN WB01X1265
804WB1X681 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
814WB1X1258 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
820WB1X1424D GE Oven Screw Package
826GEN WB01X1167
857UNKNOWN
936GEN WB02X9103
954THERMOSTAT BULB RET CLIP
979SPACER
988GEN WB01X1311
