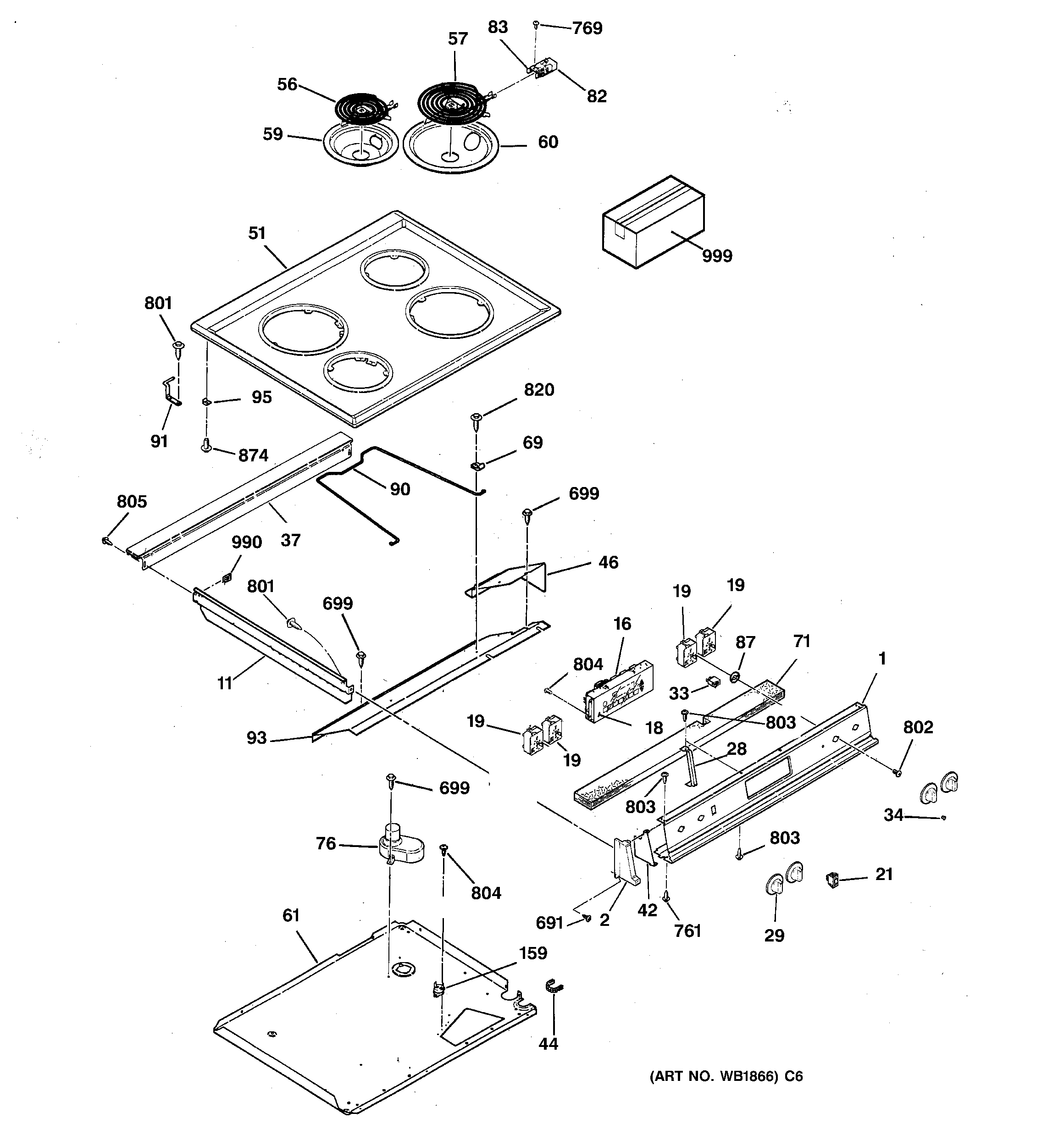

JCSP28GV2BB CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36K5554
2	GEN WB36K5379
2	GEN WB36K5378
11	SIDE EXTENSION
16	GEN WB27K5196
18	GEN WB27K5218
19	WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
19	WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
21	GEN WB24X0415
28	GEN WB02K5333
29	WB3K5242 GE Oven Black Infinite Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
37	GEN WB36K5577
42	GEN WB34K5250
42	GEN WB34K5251
42	UNKNOWN
44	UNKNOWN
46	UNKNOWN
51	MAINTOP
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	6" BOWL BLACK REAR BUBBLE
60	WB31M19 GE Range Rear 8" Black Porcelain Cooktop Drip Bowl Assembly
61	UNKNOWN
69	WB2M87 GE Oven Support Rod Clamp
71	GEN WB35K5034
76	UNKNOWN
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	GEN WB01K5128
87	WB6X3 GE Oven Control Seal
90	UNKNOWN
91	UNKNOWN
91	UNKNOWN
93	UNKNOWN
95	WB10X255 GE Oven Hinge Bracket
159	UNKNOWN
691	WB1K5177 GE Oven Trim Screw
699	WB1M1 GE Oven Screw
761	WB1K5062 GE Oven Screw
769	WB1X500D GE Oven Screw Package
803	WB1X1149 GE Oven Screw
804	WB1X681 GE Oven Screw
805	GEN WB01X1113
810	WB1X1130 GE Oven Screw 10-32
820	WB1X1424D GE Oven Screw Package
832	WB1X1118 GE Oven Screw 6-32T
874	UNKNOWN
990	GEN WB01X1432
999	GEN 31-10212
999	GEN 31-10179
999	GEN WB18K5248
999	MAIN WIRE HARNESS
999	GEN WB18K5595
999	GEN 31-13276
