JCSP31BW1BB COOKTOP

JCSP31BW1BB COOKTOP

Written by

in

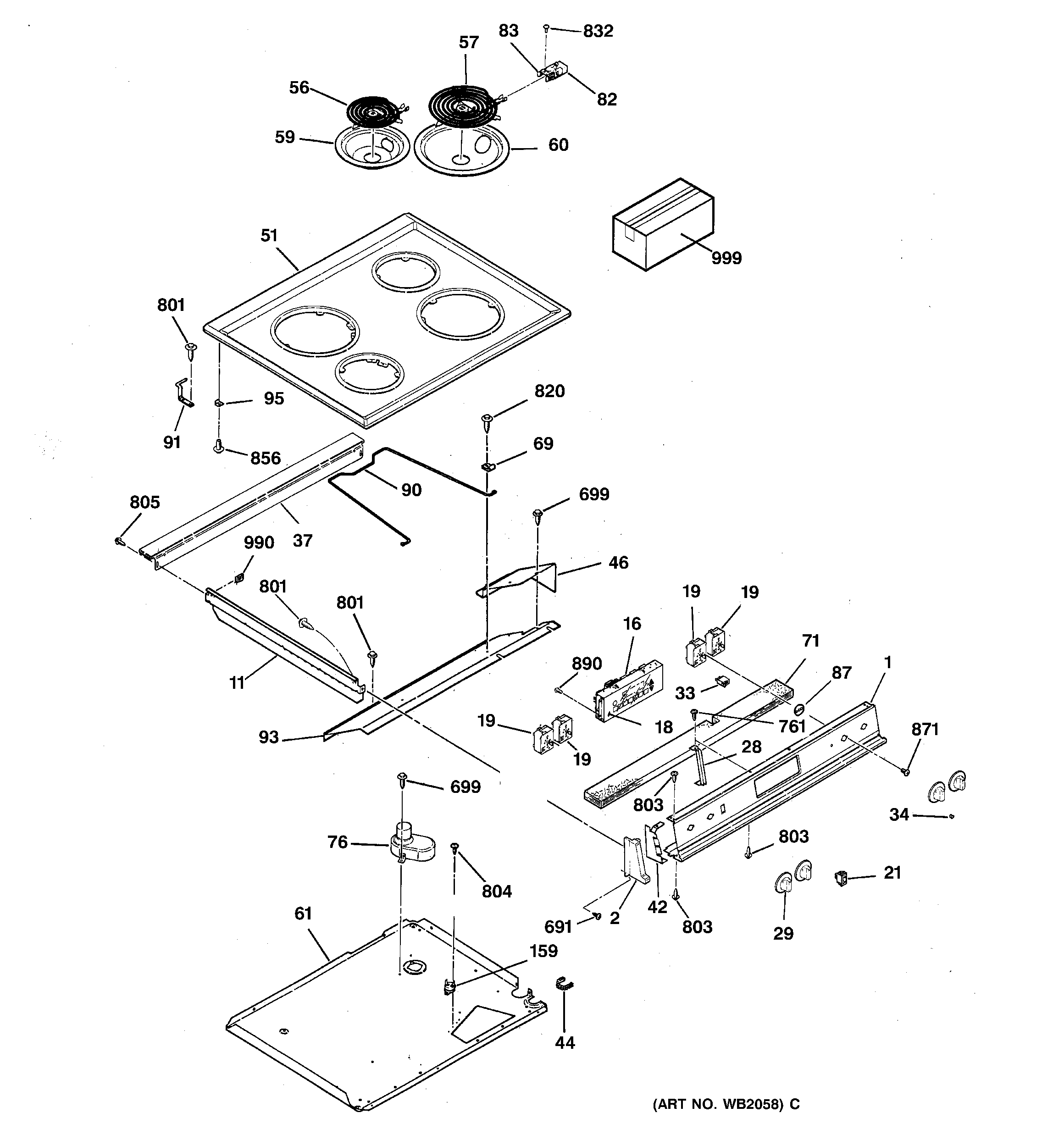

JCSP31BW1BB COOKTOP

Products

Position	Product
1	CONTROL PANEL-BLACK
2	GEN WB36K5378
2	GEN WB36K5379
11	SIDE EXTENSION
16	GEN WB27K5328
18	WB27K5337 GE Oven Clock Plate Black
19	WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
19	WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
21	GEN WB24X0415
28	GEN WB02K5333
29	WB3K5242 GE Oven Black Infinite Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
37	GEN WB36K5577
42	UNKNOWN
42	GEN WB34K5251
42	GEN WB34K5250
44	UNKNOWN
46	UNKNOWN
51	MAINTOP
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	6" BOWL BLACK REAR BUBBLE
60	WB31M19 GE Range Rear 8" Black Porcelain Cooktop Drip Bowl Assembly
61	GEN WB64K5110
69	WB2M87 GE Oven Support Rod Clamp
76	UNKNOWN
76	GEN WB38K5046
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	GEN WB01K5128
87	WB6X3 GE Oven Control Seal
90	UNKNOWN
91	UNKNOWN
91	UNKNOWN
93	UNKNOWN
95	WB10X255 GE Oven Hinge Bracket
159	UNKNOWN
673	GEN WB01T10003
691	WB1K5177 GE Oven Trim Screw
699	WB1M1 GE Oven Screw
761	WB1K5062 GE Oven Screw
769	WB1X500D GE Oven Screw Package
803	WB1X1149 GE Oven Screw
804	WB1X681 GE Oven Screw
805	GEN WB01X1113
810	WB1X1130 GE Oven Screw 10-32
820	WB1X1424D GE Oven Screw Package
828	WB1X1141 GE Oven Screw 8-32
856	WB1X1293 GE Oven Screw
871	GEN WB01K5122
875	WH2X930 GE Screw
890	WB1X1118 GE Oven Screw 6-32T
911	GEN WB01K5124
925	WB1K5117 GE Oven Washer
935	WB1K5174 GE Oven Washer
937	GEN WB01X1140
947	CABLE CLIP
967	CLIP
990	GEN WB01X1432
996	UNKNOWN
999	MAIN WIRE HARNESS
999	OWNER'S MANUAL
999	GEN 31-10213
999	GEN 31-13413
999	GEN WB18K5660
999	GEN WB18K5595
