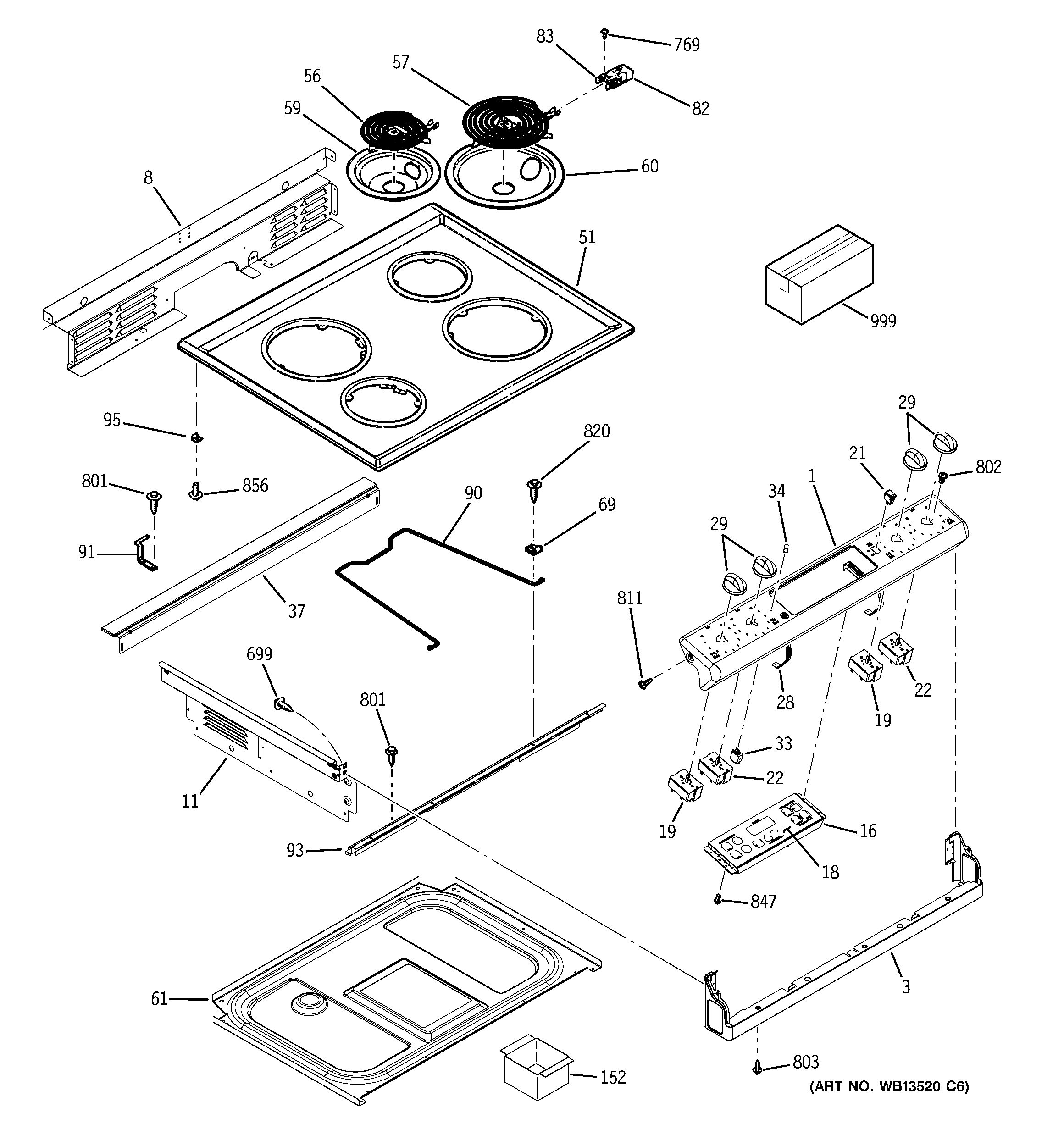

JCSP38DN1WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36T11202
1	GEN WB36T11203
3	GEN WB36T10798
3	GEN WB36T10799
8	GEN WB07K10155
11	WB07T10474 GE Oven Extension Side Left
11	WB07T10473 GE Oven Right Side Extension
16	CONTROL OVEN TO9 (ELEC)
18	GEN WB27T11097
18	GEN WB27T11098
19	WB24T10029 GE Oven Infinite Burner Switch
21	WB24T10043 GE Oven Rocker Switch
21	WB24T10042 GE Oven Rocker Switch
22	WB24T10025 SWITCH INFIN(2500W)
28	WB02T10267 GE Oven Control Bracket
29	WB03T10282 GE Oven Infinite Knob (White)
29	KNOB INFINITE (BK)
33	WB25K10010 GE Oven Light Indicator Pilot
34	LENS
37	BACKSPLASH FILLER-BLACK
37	GEN WB07K10157
51	WB62T10425 GE Oven Maintop
51	WB62T10427 GE Oven Main Top
56	WB30X20478 GE Oven Range Cooktop 6" Surface Unit Burner Element
57	WB30X20481 GE Oven 8" Surface Element
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64T10053 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
83	RECEPTACLE W/CLIP
90	WB02T10268 GE Main Top Support Rod
91	WB14T10028 GE Maintop Hinge
91	WB14T10027 GE Maintenance Top Right
93	WB34T10105 GE Oven Wire Cover
95	WB10X255 GE Oven Hinge Bracket
152	WB14T10066 GE Latch Box
699	WB1M1 GE Oven Screw
769	WB1X500D GE Oven Screw Package
802	GEN WB01K5123
803	WB01T10095 GE Oven Screw 10-32 HWH I 13/16
811	WB01T10094 GE Oven Screw 8-32 PN 1/2
820	WB1X1424D GE Oven Screw Package
847	WB1X1118 GE Oven Screw 6-32T
847	WB1K5167 GE Screw 8-18 X 3/8"
856	WB1X1293 GE Oven Screw
999	GEN 31-10619
999	GEN 29-5633
999	GEN 31-10674
999	GEN 31-14466
